Home > Earth-moving Machinery >

6x4 Wheel Drive 336HP 20m3 Heavy Duty SINOTRUK Tipper Truck

Categories SINOTRUK Tipper Truck
Brand Name: SINOTRUK HOWO
Model Number: ZZ3257N3647
Certification: ISO/3C/BV/IFA/SGS
Place of Origin: China
MOQ: 1unit
Price: US$30000-USD40000/unit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 units per month
Delivery Time: 20-30 working days after deposit or LC
Packaging Details: Nude, Waxing in RORO or bulk ship
Manufacturer: SINOTRUK (CNHTC)
Series:: HOWO
Product Name:: Tipper
Drive Type:: 6X4, LHD or RHD
Loading Capacity:: 25-40tons
Engine: 371hp
GearBox: HW19710 HW19712
Front Axle: HF9
Rear axle: HC16
Color: According customer request
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

6x4 Wheel Drive 336HP 20m3 Heavy Duty SINOTRUK Tipper Truck

Sinotruk Howo 6x4 Wheel Drive 336HP Widely Used 25 Ton 20m3 Cargo Box Heavy Duty Tipper Dump Truck

SINOTRUK Tipper Truck China Sinotruk 6x4 336hp 371hp 420hp Dump Tipping HOWO 10 Wheeler Tipper Truck


ModelZZ3257N3447A1 GCW40000kgs Driving Type 6×4
EngineEngine modelWD615.69, Euro II emission standard, 4 stroke injection diesel engine,
6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output336PS (247kW) at 2200 rpm
Maximum torque1350Nm at 1100-1600rpm
Bore126mm Stroke: 130mm
Displacement9.726L
Compression ratio17.5:1
Specific fuel consumption≤198g/kWh
Engine oil filling quantity23L
Air compressorsWABCO Twin cylinders air compressors;
Cooling system filling quantity
(long-term filling)
40L
ClutchSINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TransmissionTransmission, model HW19710, 10 forward and 2 reverse
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)
Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
Front AxleNew HF9 series, with drum brake system
Steering with double T-cross section beam
Rear AxleHC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Ratio: 5.73
ChassisFrame:High-strength U-profile frame, all cold riveted cross members and reinforced subframe
Front suspension:semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:semi-elliptic leaf springs and bogie springs
Spare wheel carrier:with one spare wheel

Steering
ZF8098, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
Braking SystemFront and rear drum brake, four-circuit protection valve
Service brakedual circuit compressed air brake
Parking Brakespring energy, compressed air operating on rear wheels
Auxiliary brakeengine exhaust brake
Wheel & TypesRims8.5-20,10 hole-steel
Types12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20




Cargo Box:






1.Does your company is a factory or trade company?

We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.


2.Whats the qualify assurance we provided and how do we control quality?

1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.


2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.


3. What’s your MOQ?

One unit


4. How do you transport the trucks?

We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.bulk or container.


5. Can you satisfy my special requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!

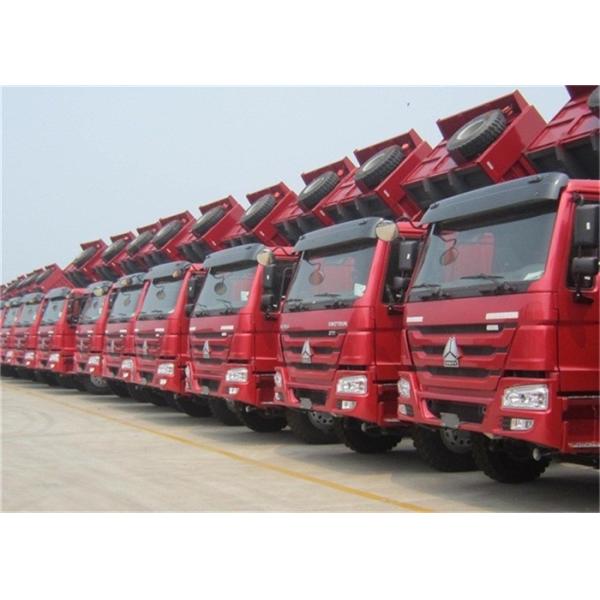

Buy 6x4 Wheel Drive 336HP 20m3 Heavy Duty SINOTRUK Tipper Truck at wholesale prices
