| Categories | Industrial Ultrasonic Cleaner |
|---|---|
| Brand Name: | Skymen |
| Model Number: | JP-120ST |
| Certification: | CE, RoHS, FCC |
| Place of Origin: | China Shenzhen |
| MOQ: | 1pc |
| Price: | USD515-550/pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs Month |
| Delivery Time: | 12 Working Days |
| Packaging Details: | 1pc Machine packed in a wooden box |
| Model No.: | JP-120ST |
| Tank Capacity: | 38L, 8.5 gallons |
| Tank Size(mm): | 500x300x250 (LxWxH) |
| Unit Size(mm): | 735x500x695 (LxWxH) |
| Tank Material: | Stainless steel made SUS304 |
| Packaging: | In a wooden box |
| Ultrasonic power: | 0-600W |
| Heating Power: | 1500W |
| Timer: | 1-99mins Adjustable |
| Heater: | 20-95°C Adjustable |
| Material: | SUS 304L / SUS 316L |
| Condition: | New |

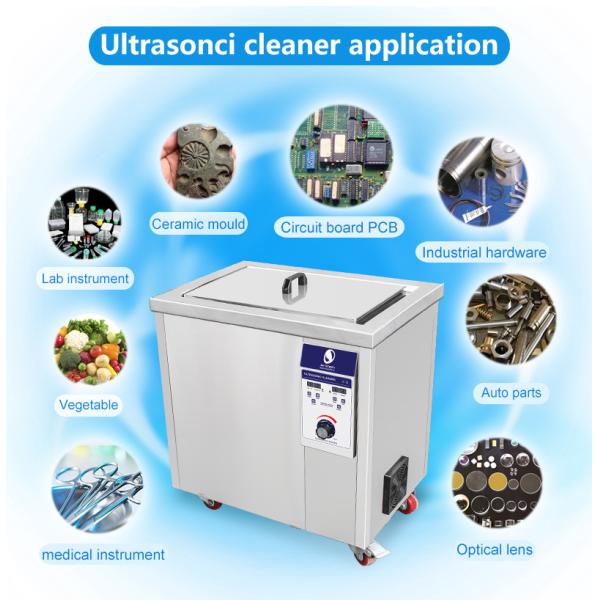

| Industry used: | Pharmaceutical Cleaning, Electronic Industry, Auto Industry, optial, all industry |
| Cleaning process: | Hot Water Cleaning, Solvent Cleaning, Other |
| Company Info. |
| Skymen Cleaning Equipment Shenzhen Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

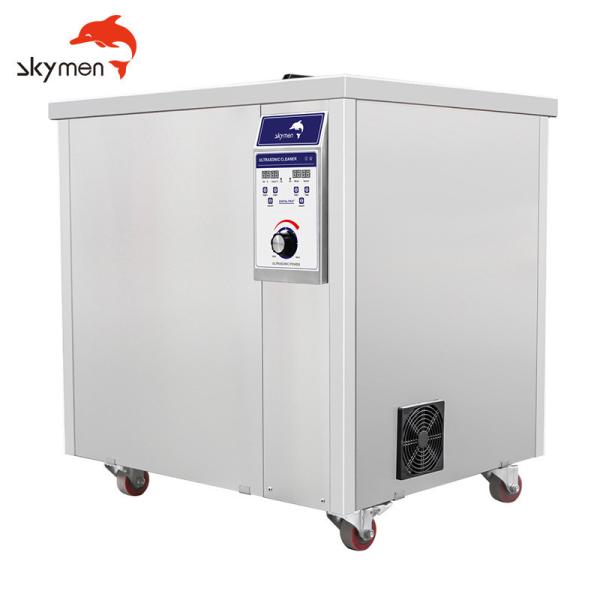

SUS304 Ultrasound Tank 8.5 gallons Industrial Ultrasonic Parts Cleaner 600W for metals
Technical Parameters:
| Model | JP-120ST | |
| Ultrasonic mode | Ultrasonic Frequency | 28,000Hz or 40,000Hz |
| Tank material | SUS0304 | |
| Tank thickness | 2mm | |
| Tank Capacity | 38L(8.5gallons) | |
| Timer adjustable | 1~99 minutes | |
| Heater adjustable | 20°C to 80°C | |
| Machine voltage | AC 100-120V/60HZ AC 200-240V/50HZ | |
| Ultrasonic Power | 600W adjustable | |
| Heating Power | 1500W adjustable | |
| Generator | Internal generator | |
| Packing | Tank Size | 500*300*250mm( L x W x H ) |
| Unit Size | 735*500*695mm ( L x W x H ) | |
| N.W. / G.W. | 65kg /83 kg | |
| Warranty | 12 months | |
| Production time | 15 working days | |
| Certificates | CE/ROHS /FCC / ISO9001 | |
Features
1. Stainless steel tank has resistance to wear and long work life.
2. Tank capacity:38L(8.5gallons) with Digital timer & heater
control
3. With drainage and basket
4. Use just tab water, or industrial alcohol and solvent cleaner
for more higher cleaning requirement
5. Industrial control chip microcontroller.flexible circuit boards
control, more secure & stable
6. Multi-direction castors with brake
Detailed Images
According to your requirement, Skymen can add any optional system, such as oil filtration, rinsing tank, drying tank and hydraulic lifiting, throuwing. And any size is available from us.
Packing Details
Packing: 1 machine on 1 wooden box
Production time: 1.5 weeks
Delivery
About Skymen:
Contact US
Sales representative: Connie Liu
Email: sales6@skymen.cc
Tel: +86-755-27094405
MOB/Whatsapp/Wechat: +86-13823183756
FAQ
Q: Can you provide ultrasonic transducer or generator if any failure?
A: Yes,ultrasonic transducer and ultrasonic generator are designed and manufactured by ourselves.
We can send the right parts quickly for replacement.
Q: How long is the warranty?
A: We guarantee quality of the products for a period of 1 year.
If any quality problem within warranty,we will provide free spare parts or repairing service.
-------------More Things You May Concern ------------
Q: Does the size matter?
A: Yes. Make sure that you are looking at the tank dimensions and not just the outside dimension.
Q: Why the cleaners have different ultrasonic power?
A: No worry. The larger tank needs more power to make the cleaning effectively. Skymen have make it perfectly fit. Compare the watt to gallon ratio." We only sell equipment that has more than enough power!
Q: What is ultrasonic frequency and how could I choose?
A: 40kHz fits most items.
Frequency is suggested based on pollutants in the objects:
--28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )
--40kHz is better for high frequency and higher precision objects clean(PCB boards, electronic parts, etc.).
Q: How about the durability?
A: Skymen cleaners made of stainless steel SUS304/316L could work very long time up to 7-10 years.
Q: Why is a special solution required for cleaning?
A: Oil or other dirty adhere to the parts, if no special solution, the oil would just fall off the parts! The purpose of the solution is to break the bonds between parts and their oil. Water alone has no cleaning properties.
Q: If I need to repair the machine after 1 year warranty?
A: Being able to repair your machine to get back up and going is important. Not only does Skymen make sure that every component has an easy access panel, but we are always available to help.
Q: How to avoid damaging the work piece during cleaning?
A: 1) To use correct ultrasonic frequency and ultrasonic power.
2) To choose suitable ultrasonic cleaning agent.
3) To choose reasonable tooling basket and cleaning methods.
Customer feedback:
* Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.
------Blasko Krstev
* I am happy that you are making good quality ultrasonic cleaner,
first one is very good.
------ Stefan (Germany)
* The systems were well received tested and working very fine. I
appreciate all your help. Looking forward for having future
business wth you again.
------ Haytham Tarhini (Saudi Arabia)
|
