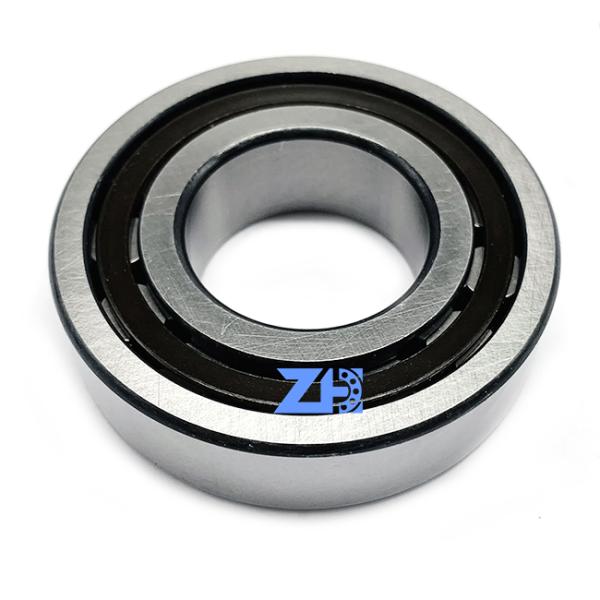

Professional production CHROME STEEL Cylinder Roller Bearing NJ206ET2X 206ET2X NJ206X 30*62*16mm

Categories Cylindrical Roller Bearing
Brand Name: ZH
Model Number: NJ206ET2X
Certifiexcavatorion: ISO9001:2008
Place of Origin: China
MOQ: Negotiation
Price: factory price
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 30000 Set/Sets per Month
Delivery Time: 1-7 work days
Packaging Details: Negotiation
Certification: IS09001
Product name: Cylinder Roller Bearing
ModelNJ206ET2X: NJ206ET2X
Quality: High quality,Genuine
Packing: Neutral Packing,Standard export package,Carton / Wooden Box,Wooden Case
Size: 30*62*16mm
Material: CHROME STEEL
MOQ: 1
Supply: 30000 Set/Sets per Month
Weight: 0.208Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Professional production CHROME STEEL Cylinder Roller Bearing NJ206ET2X 206ET2X NJ206X 30*62*16mm

NJ206ET2X 206ET2X NJ206 NJ206ET2XRS P0 P3 P2 P1 P5 P6 P4 Quality LEVEL CHROME STEEL Cylinder Roller Bearing


Product introduction
NJ206ET2X
Roller Bearings are essentially wheel bearings with a cage. They have an inner ring, two integral flanges, and a fully removable outer ring. Any axial displacement of the shaft with respect to the housing can be accommodated in both directions; this bearing features both a reinforced structure, a brass solid retainer, and surface-finished roller ends. Roller Bearings are capable of accommodating heavy radial loads at high speeds, which makes them well suited for applications like conveyors and fans



PRODUCT DEFINITION
BrandNTN
d - Internal diameter30 mm
D - External diameter62 mm
B - Bearing/Inner ring width16 mm
E - Upper roller diameter55,5 mm
F - Under roller diameter37,5 mm
d1 - IR flange outer diameter41,1 mm
rs - Min fillet radius1 mm
r1s - Min fillet radius0,6 mm
Radial clearance classCN
Mass0,208 kg

PRODUCT PERFORMANCE
C - Dynamic load46 kN
C0 - Static load37,5 kN
Cu - Fatigue limit load4,55 kN
Nlim - Oil lubrication limit speed15600 tr/min
Nlim - Grease lubrication limit speed11000 tr/min
Tmin - Min operating temperature-20 °C
Tmax - Max operating temperature120 °C

ABUTMENT
da min - Min shoulder diameter IR34 mm
da max - Small face shoulder max diameter37 mm
dc min - Min inner ring GO diameter44 mm
Da max - Max shoulder diameter OR57 mm
ra max - Max fillet radius1 mm
r1a - Max fillet radius0,6 mm
