| Categories | Herbal Powder Machine |
|---|---|
| Brand Name: | Brightsail |
| Model Number: | BSP |
| Certification: | CE ISO |
| Place of Origin: | China |
| MOQ: | one set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Delivery Time: | 30-35 days |
| Packaging Details: | Container |
| Product name: | Herb powder making machine |
| Application: | herb,rice,leaf |
| Material: | SS 304/316 |
| Capacity: | 20-1800kg/h |
| Input size: | <15mm |
| Fineness: | 60-3000 mesh |
| Voltage: | customized |
| Company Info. |
| Jiangyin Brightsail Machinery Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

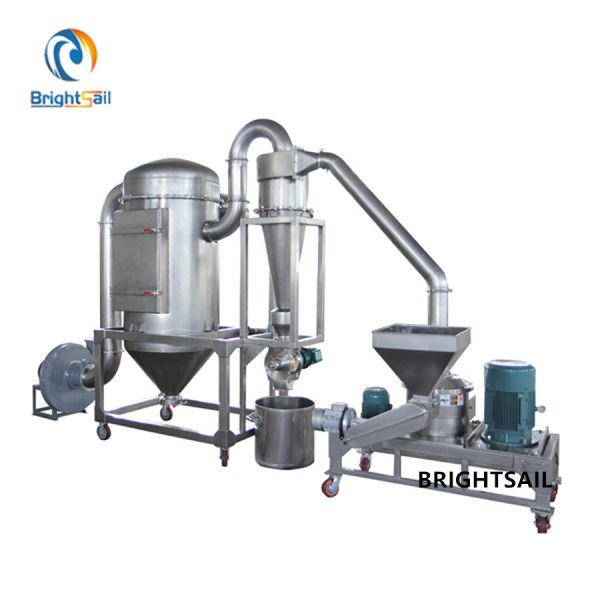

10-1000kg/Hr Industrial Herb Powder Making Machine herbal grinding mill
1.BSP ultra-fine pulverizer set (air classifier mill) (can make 40 to 320 mesh herb powder)
Suitable for grinding herbs,roots,leaf, and low oil-containing
spices and other materials, such as rice, herbs, seaweed...Fineness
up to 2500 mesh
BSP herbal powder machine by the crusher, cyclone separator, dust remover, Fan, electrical
control box and other components.
With the ability of selection, screening, uniform particle size, continuous processing.
Applicable to pharmaceutical and chemical industry, industrial raw material crushing, food industry and other industries.

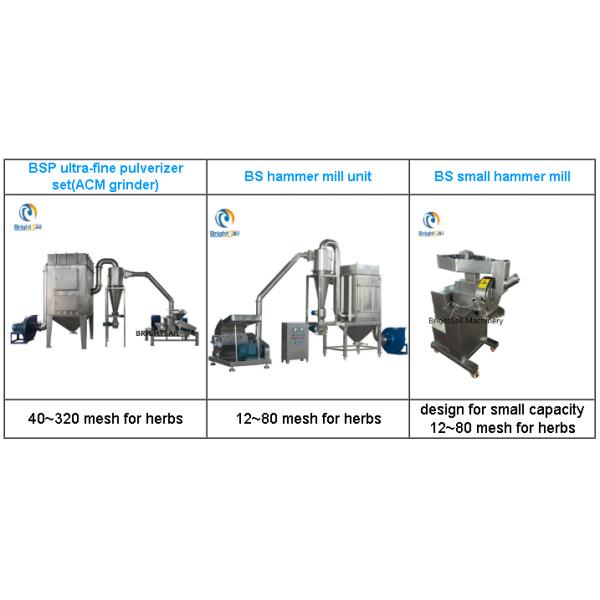

Three types of machines:
Main picture:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
2.BS series hammer mill grinding unit (can make 12 to 60 mesh herb powder)
Suitable for crushing herb and other spices, small output, crushing
fineness between 12-60 mesh.
BS hammer mill unit is made up of three parts:main
machine,auxiliary machine and electric control box.
The production process going on continuously,the machine can undertake the grinding of chemical products.food medcine,medicament,cosmetics,plastic,dyestuff, resin,cotourant,grain,etc.
To change powder size, just change different sieves in mill chamber.

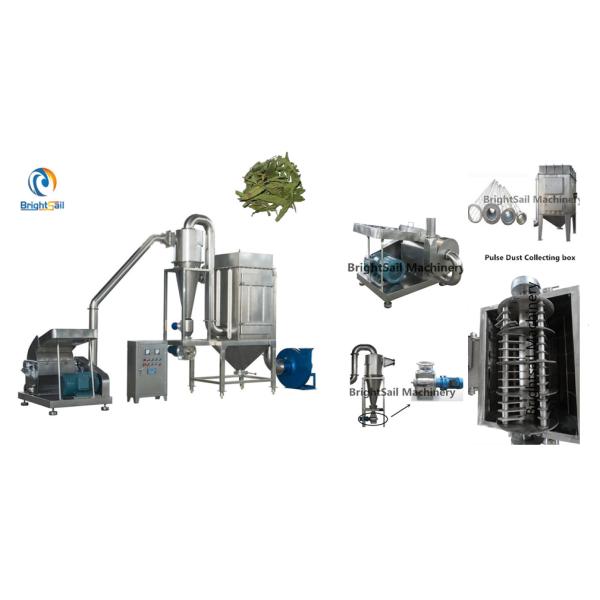

Main picture:
Technical data:
| Model | BS-400 | BS-630 | BS-880 | BS-1000 |
| Capacity(kg/h) | 80-1200 | 400-1800 | 800-2500 | 1000-3000 |
| Fineness(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Main crush motor(kw) | 22 | 37 | 45 | 55 |
| Overall size(L*W*H)(mm) | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 | 8800*2000*3300 |
3.BS small hammer mill (can make 12 to 80 mesh herb powder with
small capacity)
Suitable for small production of herb and other spices,
Except for herbs and leaf, it also can be used to grind spices, dry leaf, chickpeas, sugar and many other materials.
The machine can make powder in lines of food,
pharmacy,chemical...etc.
Material is smashed by the cutting and grinding of high speed
knives.
Knife of type can be selected according to different material and size of granules.
Main picture:
Technical data:
| Model | BS-180 | BS-250 | BS-300 |
| Input size (mm) | < 10 (granule) < 15*40*2 (leaf) | ||
| Output size (mesh) | 10-120 | ||
| Capacity(kg/hr) | 3-50 | 10-100 | 20-200 |
| Rotating speed (rpm) | 5900/8600 | 4200/6200 | 2600/5100 |
| Power (kw) | 2.2 | 5.5 | 7.5 |
| Overall size (mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 |
| Weight(kg) | 112 | 210 | 296 |
Application:
spices,chilli,herbal,turmeric,ginger,coco beans,chickpea,rosehip...etc.
Our Company:
Brightsail Industrial Group Co. , Ltd. is the Trading Department of
Brightsail Machinery Co. , Ltd. and Jiangyin Hengsheng Steel
Structure Co. , Ltd. . It was established in 2002. We provide
professional powder processing integrated solutions, grinding
machines, mixers, sieves, welding services, welding machines,
chemical powder... after 15 years of development and accumulation,
our company has become one of the most influential equipment
manufacturers. Willing to grow and develop together with new and
old customers.
Please connact us if you have any intersts in our products:
our email: info@brightsail-asia.com
website:www.brsmill.com
Whatsapp: +8615961653782
|
