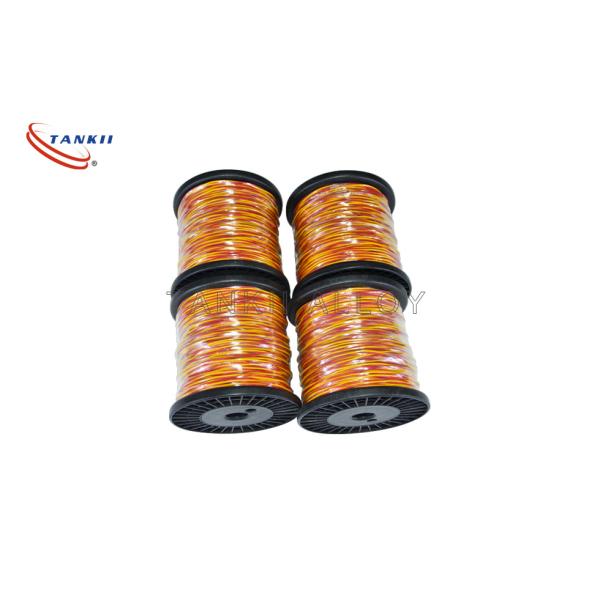

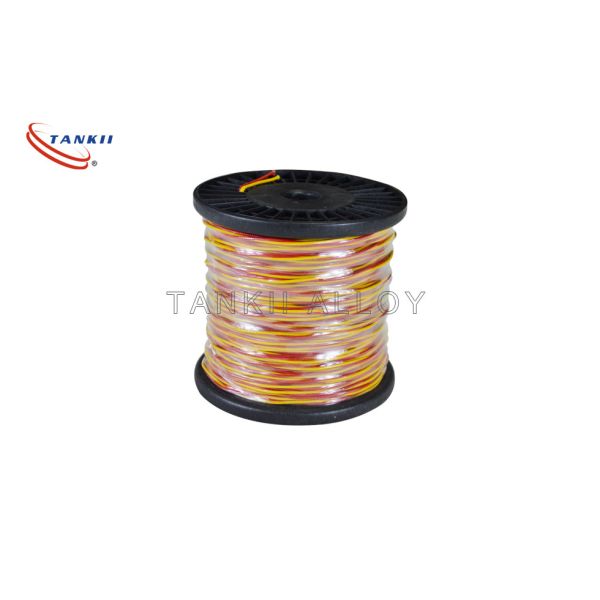

Tinned Galvanized Copper Thermocouple Cable Compensating

Tinned Galvanized Copper Thermocouple Cable Compensating

Tinned Galvanized Copper Thermocouple Cable Compensating
Tinned Galvanized Copper Thermocouple Cable Compensating
Categories Thermocouple Cable
Brand Name: TANKII
Model Number: PVC
Certification: ISO9001
Place of Origin: Shanghai
MOQ: 3000m
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 1 million+meter+per month
Delivery Time: 15-28 days
Packaging Details: Spool, carton, plywod case with plastic film as clients required
material: copper，PVC or politef
color: red,black,white,blue,green etc.
insulation: PVC or politef
sheath: PVC,politef or alkali free glass wire
shield: tinned wire,galvanized copper wire or aluminum plastic composite tape
working temperature: -25～+200℃
Contact Now
Company Info.
Shanghai Tankii Alloy Material Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Tinned Galvanized Copper Thermocouple Cable Compensating

Tinned Galvanized Copper Thermocouple Cable Compensating


Thermocouple Extension Cable


Thermocouple Extension wire and wire which are used in temperature measuring method by thermocouple, that consists of two dissimilar metals that are joined together at the sensing end. Extension wire uses same materials with thermocouple to extend from thermocouple to measuring equipment.

Features: Excellent thermoelectric stability, mechanical and electric properties, long working life;

Simple structure, excellent flexibility,easy for assembly;

High chemical stability, heat-resisting, and frost-resisting of clad.

Part NO.Insulation gradesConductorCertificatesStandardInsulation System
OLTIWClass-B 130℃

0.16

·--1.00

single wireUL E466302
VDE 40040893		UL2353
IEC60950 IEC60601
IEC61558 IEC60065		E497858
OULY-130

Conductor nameTypeApplicable thermocouple type
Cu-Constantan 0.6SC or RCS or R

Iron-constantan 22

Copper-Constantan40

Chromel 10-NiSi3

KCA

KCB

KX

K

Iron-constantan 18

NiCr14Si-NiSi4Mg

NC

NX

N
NiCr10-Constantan45EXE
Iron-Constantan 45JXJ
Copper-Constantan 45TXT

Features/application:
　　
Compensation wires for thermocouples are a pair of insulated wires with the same nominal value of thermoelectromotive force of matched thermocouples in a certain temperature range (including normal temperature), which are used to connect thermocouples and measuring devices to compensate errors caused by temperature changes at their connection with thermocouples. It can be divided into extension type and compensation type.
Delivery requirements:
According to the contract agreement of both parties, short delivery of not less than 10m is allowed. The quantity shall not exceed 10% of the total length of delivery.

Specification:

Cable core typecable core section(mm2)core strands numbersingle wire diameter( mm )
Single strand wire core0.2
0.5
1.0
1.5
2.5		1
1
1
1
1		0.52
0.80
1.13
1.37
1.76
Multi-strand wire core(soft wire)0.2
0.5
1.0
1.5
2.5		7
7
7
7
19		0.20
0.30
0.43
0.52
0.41

Dimension:

ApplicationCore section
(mm2)		Insulation thickness
(mm)		sheath thickness
(mm)		max diameter(mm)
single strand coremulti-strand soft core
Universal use0.2
0.5
1.0
1.5
2.5		0.4
0.3
0.7
0.7
0.7		0.7
0.8
1.0
1.0
1.0		3.0 × 4.6
3.7 × 6.4
5.0 × 7.7
5.2 × 8.3
5.7 × 9.3		3.1 × 4.8
3.9 × 6.6
5.1 × 8.0
5.5 × 8.7
5.9 × 9.8
Temperature resistance use0.2
0.5
1.0
1.5
2.5		0.4
0.4
0.4
0.4
0.4		0.3
0.3
0.3
0.3
0.3		2.3 × 4.0
2.6 × 4.6
3.0 × 5.3
3.2 × 5.8
3.6 × 6.7		2.4 × 4.2
2.8 × 4.8
3.1 × 5.6
3.4 × 6.2
4.0 × 7.3

Reciprocating resistance value at 20℃:

Model numberCable core section(mm2)
0.20.51.01.52.5
SC or RC
KCA
KCB
KX
EX
JX
TX
NC
NX		0.25
3.50
2.60
5.50
6.25
3.25
2.60
3.75
7.15		0.10
1.40
1.04
2.20
2.50
1.30
1.04
1.50
2.86		0.05
0.70
0.52
1.10
1.25
0.65
0.52
0.75
1.43		0.03
0.47
0.35
0.73
0.73
0.43
0.35
0.50
0.95		0.02
0.28
0.21
0.44
0.50
0.26
0.21
0.30
0.57
