| Categories | Cable Pulling Pulley |
|---|---|
| Brand Name: | SHENHONG |
| Model Number: | DHZN/DHZ |
| Certification: | ISO |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1pcs |
| Price: | negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs per month |
| Delivery Time: | 7 days after payment |
| Packaging Details: | carton |
| Application: | Used to set cable, protect cable from friction |
| Dimension: | 300*230*260mm |
| Approximate weight: | 8.0kg |
| Rated load: | 10kN |
| Surface treatment: | Color painted or galvanized |
| Warranty: | 1 year |

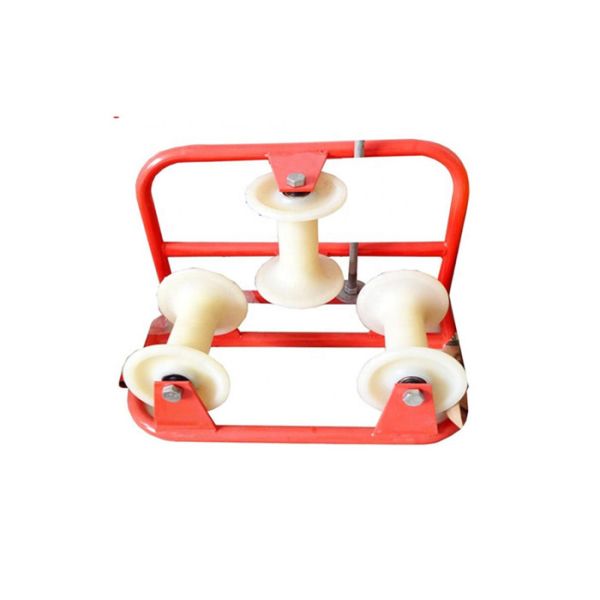

Cable Pulley Cable Roller With Aluminum Nylon Wheel/Cable Pulling Roller
Description:
Power and communication cables are often laid in open trenches where the road and ground conditions result in the cable route having a number of curves. With the cable’s own weight and the high tensions involved the cable cannot be fed cleanly. This product can be fixed in the corner of angle steel cross pole to protect the cable from friction, divided into nylon type and Aluminum type.
We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction. They have are used to support conductors, OPGW,ADSS, communication lines.
Features:
1. Able to carry high loads
2. With chromel steel ball bearing
3. With a high load-bearing capacity
4. Self-lubrication, precision machined and low friction
5. Low noise, stable performance and durable
6. Able to work in sub-zero temperatures and have low rolling
resistance
7. Suitable for countless applications: sliding pipe, machine
equipment and other sliding systems
Data Sheet
| Model Name | Rated Load(kN) | Approx. Weight(kg) | Dimension(mm) | Material |
| DHZ-2 | 10 | 8 | 300*230*260mm | Al sheave& steel frame |
| DHZN-1 | 10 | 8 | 300*230*260mm | Nylon sheave& steel frame |
|
