| Categories | Fiber Optic Cable |
|---|---|
| Brand Name: | Geto Telecom |
| Model Number: | GJYXQCH |
| Certification: | ISO 9001: 2015 |
| Place of Origin: | China |
| MOQ: | 1000M |
| Price: | 0.3 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 M/Day |
| Delivery Time: | 5-8 Days |
| Packaging Details: | Drum |
| Product Name: | Outdoor Aerial Drop Fiber Optic Cable |
| Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
| Fiber Core: | 2-96 Cores |
| Application: | self supporting outdoor fiber optic cable |
| Armored: | Yes |
| Operating Temperature: | -40℃ to + 70℃ |
| Out sheath: | Black Polyethylene (PE) |
| Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, blue or others, Aqua, yellow |
| Jacket material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, ect |
| Strength member: | steel wire, Metallic wire, FRP |
Description
GJYXQCH drop fiber optic cable is for outdoor aerial application. It is fire-resistant and easy to split.

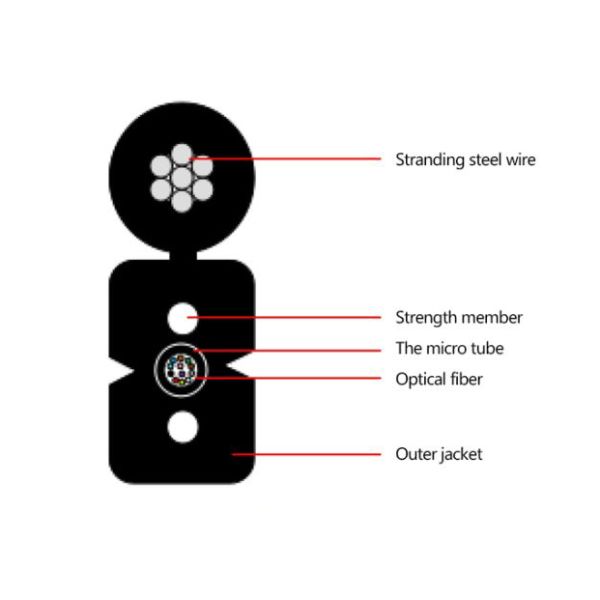

Characteristic
The fiber intraditional drop cable is replaced by a micro tube, which can accommodates 2-12core fiber .
Micro tube unitis dry type with small size, and ultra-thin thickness, even 12-core micro tubediameter only 1.4 mm.
Micro tube andcable sheath are easy to separate, simplifying the connection, installation andmaintenance.
Two parallelstrength members improve crush-resistant performance and protect the fiber.
With simplestructure, light weight and strong practicability.
The structure ofmicro tube has better attenuation transmission performance.
Low smokehalogen free (LSZH), flame-retardant outer sheath.
OperatingTemperature:-10℃~﹢60℃
TransmissionPerformance
Specification

Fiber Type | 62.5μm(OM1) 850nm/1300nm | 50μm(OM2) 850nm/1300nm | G.652 1310nm/1550nm | G.657 A2 1310nm/1550nm |
| Attenuation Value Max (dB/km) | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.36/0.22 |
Typical Attenuation Value (dB/km) | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.35/0.21 |
Note:Othertypes of fiber can be provided according to the customer’s demands.
