Description:

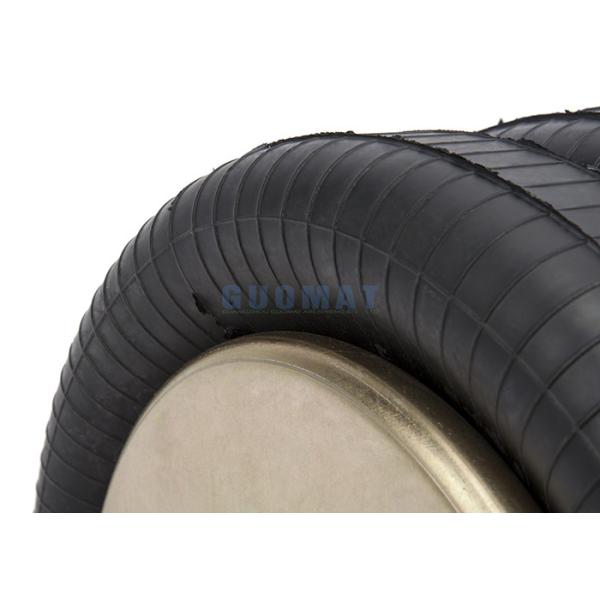

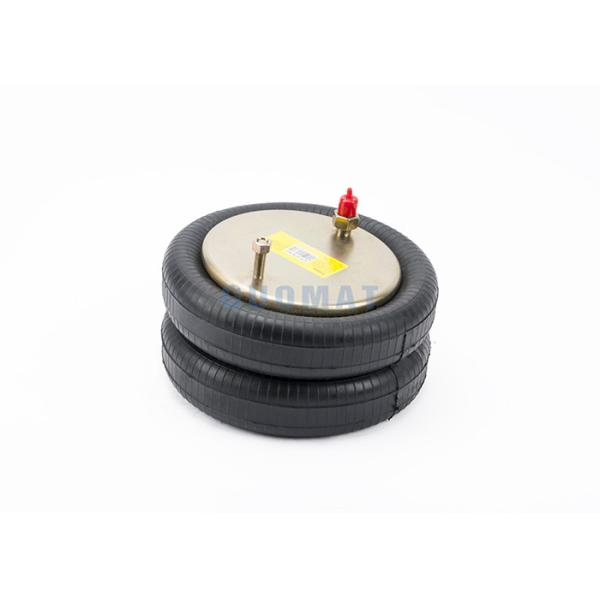

GUOMAT NO. 2B7545 this kind of double Convoluted Air Spring which is produced by GUOMAT. It can replace Firestone Complete Number W01-358-7545 ;Contitech Part NO. : FD 331-26 514 and other kinds. 2B7545 air spring not only use in truck and trailer,but also as Vibratory conveyors,such as Large drying machines,Centrifugal separators,Coordinate measuring tables and machinery and Commercial laundry machines.

Parameter of GUOMAT NO. 2B7545 Air Spring:

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC

Top Cover Plate Combination Nut : 3/4-16UNF

Screw Center Distance of Top Cover Plate : 157 mm / 6.2 inches

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT , Combination Stud/Air Inlet Stud

❸ Cover Plate

Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

❹Rubber Bellows

Rubber Bellows MAX Diameter : 343 mm / 9.7 inches

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 363mm / 14.3 inches

Working Stroke : 259 mm / 10.2 inches

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Hendrickson Turner Life Axle HLN (Non-Steer), HLP (Paralift), HLU, HLUN, HLUS (Ultra-Steer), HLUR-2 (Pararev)

Top Plate C to C Dia. (B): 6.20

Bottom Plate Dia. (C): 9.00

Bottom Plate C to C Dia. (D): 2.25

Bottom Plate Alignment: 90 Degree

Pictures show the information includes:

Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values
