| Categories | DTH Drill Bits |
|---|---|
| Brand Name: | MIROC down the hole hammer drill tool |
| Model Number: | DTH Button Bit |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 Pieces DTH Button Drill Bit |
| Price: | Negotiation |
| Supply Ability: | 20000 pieces per month |
| Delivery Time: | 25 days |
| Packaging Details: | Carton Box or Wooden Box |
| Application: | Water Well Drilling, Quarry Drilling, Construction Rock Drilling |
| Hammer Type: | RE 350 |
| Bit Diameter: | 127mm 133mm 140mm 146mm 152mm 165mm |
| Name: | DTH Button Bit |
| Drill Method: | DTH (Down the hole) Drilling |
| Button dia: | 10x14mm,9x16mm |
| Company Info. |
| KSQ Technologies (Beijing) Co. Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

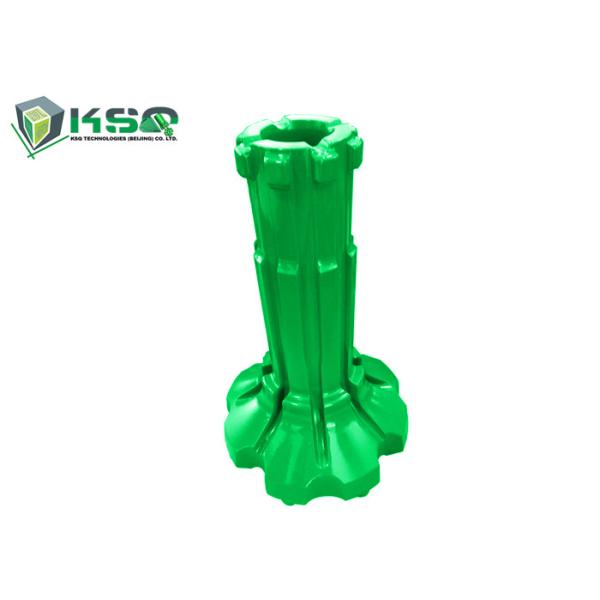

For Deep Exploration Drilling Reverse Circulation Rock Drill Tools 139mm RC Drill Bit
Product Description
Reverse circulation is achieved by blowing air down the annulus of the rod, the differential pressure creating air lift of the water and cuttings up the inner tube which is inside each rod. It reaches the deflector box at the top of the drill string then moves through a sample hose which is attached to the top of the cyclone.
The drill cuttings travel around the inside of the cyclone until they fall through an opening at the bottom and are collected in a sample bag. For any drill hole there will be a large number of sample bags, each one marked to record the location and drilling depth that the sample was obtained.
The collected series of sample bag cuttings are later taken for analysis to determine the mineral composition of the drill hole. The analysis results of each individual bag represents the mineral composition at a particular sample point in the drill hole. Geologists can then survey the drilled ground analysis and make decisions about the value of the overall mineral deposit.
RC HAMMER BITS DETAILS: RC Down the hole DTH Hammer / rc mining drill bits
| P/N | Outside dia.(mm) | Hammer Length without bit(mm) | Drilling dia. | Sample Tube Dia. (mm) | Working Pressure (Mpa) | Top sub thread | Air consumption (M3/Min) | Weight (kg) |
| RC335 | Φ90 | 991 | 95-110 | 30 | 0.7-2.1 | T 2 3/8 Box | 4.2-14 | 30 |
| RC345 | Φ105 | 1038 | 115-130 | 36 | 0.7-2.1 | T 2 7/8 Box | 4.5-20 | 41 |
| RC350 | Φ116 | 765 | 127-140 | 30 | 0.7-2.4 | T 3 1/2 Box | 6-20.6 | 48 |
| RC355 | Φ124 | 765 | 133-152 | 36 | 0.7-2.4 | T 4 Box | 6-21.5 | 60.5 |
| RC365 | Φ154 | 795 | 159-203 | 61 | 0.7-2.4 | T 4 5/8 Box | 7-25.5 | 89 |
| RC385 | Φ190 | 795 | 203-241 | 61 | 0.7-2.4 | T 6 Box | 10-30.5 | 167 |
| RC3100 | Φ230 | 814 | 241-311 | 76 | 0.7-2.4 | T 6 5/8 Box | 15-34 | 263 |
| RC3120 | Φ285 | 781 | 311-350 | 85 | 0.7-2.4 | T 8 5/8 Box | 20-37.8 | 423.5 |
