| Categories | Outdoor Fiber Optic Cable |
|---|---|
| Brand Name: | Wrc-Duct Aerial Optical Fiber Cable GYXTW Optical Fiber Cable |
| Model Number: | Duct Aerial Optical Fiber Cable GYXTW Optical Fiber Cable |
| Certification: | ISO9001,SGS |
| Place of Origin: | China |
| MOQ: | 5.0km |
| Price: | USD60-USD350/Km |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
| Supply Ability: | 500Km per day |
| Delivery Time: | 5-21 days |
| Packaging Details: | Export Carton Packing |
| Application: | Telecommunication,Telecom,Network,internet,Lan |
| Fiber type: | G652D,single mode or multi mode,50/125,62.5/125,OM3 |
| Number of conductors: | 2,4,8,12,24,48,96 |
| Type: | Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber count: | 2-288 core |
| Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC |
| Name: | GYXTW Fiber Optic Cable Single Mode 2-12cores Unitube Light-Armored Cable |
| Length: | 2km , or customized length |
| Jacket material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available |
| Installation: | self- supporting Aerial,aerial, Duct |
| Structure: | Loose tube,Unitube |
| Operating temperature: | -40~75 |
| Sheath material: | LSZH,HDPE,PVC,or customized |
| Strength member: | steel wire,Aluminum,or as per requirement |
| Fiber color: | Blue,Orange,Brown,Aqua,Grey,Customized |

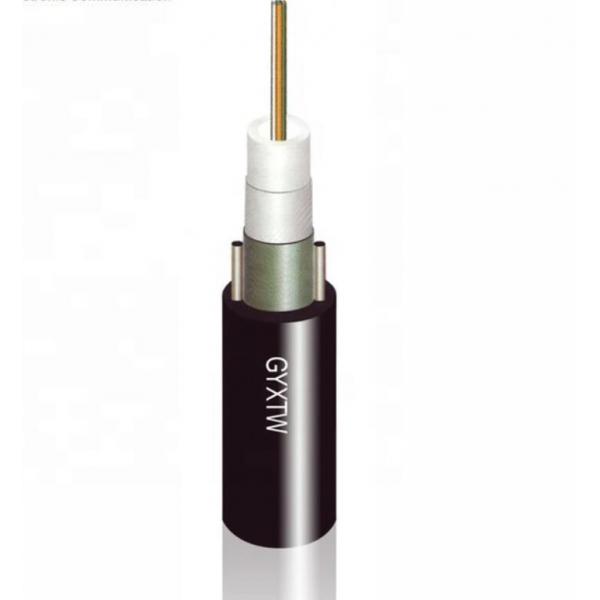

"Duct Aerial Optical Fiber Cable GYXTW Optical Fiber Cable "is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
Characteristics of Duct Aerial Optical Fiber Cable GYXTW Optical Fiber Cable
· Good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and high strength.
· The tube is filled with a special grease to provide critical protection to the fiber, good pressure resistance and softness.
· Double coated steel strip (PSP) improves the moisture resistance of the cable.
· Two parallel wires ensure the tensile strength of the cable.
· Small diameter, light weight and easy to lay.
· Long delivery length
Structure and Technical specifications of Duct Aerial Optical Fiber Cable GYXTW Optical Fiber Cable
| Fiber Count | Cable Weight (kg/km) | Bending Radius (mm) | Tensile Strength (N) | Cruch Resistance (N/100mm) | |||
| Static | Dynamic | Long term | Short term | Long term | Short term | ||
| 2-12 | 124 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
| 14-24 | 147 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
| 26-36 | 150 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
| 38-48 | 207 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
Optical Parameters:
| 50/125µm | 62.5/125µm | G.652 | G.655 | ||
| Attenuation(+20°C) | @850nm | ≤3.0dB/km | ≤3.3dB/km | ||
| @1300nm | ≤1.0dB/km | ≤ 1.0dB/km | |||
| @1310nm | ≤0.36dB/km | ≤0.4dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥ 500MHz.km | ≥ 200MHz.km | ||
| @1300nm | ≥ 1000MHz.km | ≥ 600MHz.km | |||
| Numerical Aperture | 0.200 ±0.015NA | 0.275 ±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤ 1260nm | ≤ 1450nm |
Cable Parameters
| able count | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum allowable Crush load(N/100mm) | Min bending radius(MM) | Suitable temperature | ||||
| (core) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | |
| 2 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 4 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 6 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 8 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 10 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 12 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 24 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior
quality and service
Q3: What is your Warranty?
A3: All the products will have 25 years Warranty
Q4:What payment method do you accept?
A4:T/T(Bank transfer), Western Union, Money Gram, PayPal, etc.
Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production
stage of your order will be sent to you and the information will be
updated in time.
Q6: What’s the leading time? (How long do you need to prepare my
goods?)
A6: Delivery (no more than 1000pcs) will be arranged within 3-7
days after payment, and arrive you within about 3-7 working days
via international express.
Q7: How will you delivery my goods to me?
A7: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS
your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be
accepted according to clients' request.
|
