20kHz 1060nm Portable Laser Engraving Machine Stainless Steel

Categories More
Brand Name: Perfect Laser
Model Number: PEDB-400B
Certification: CE ISO
Place of Origin: China
MOQ: 1 SET
Price: Negotiable
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 400 sets per month
Delivery Time: 7-10 working days for small laser engraving machine for sale
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Product name: stainless steel laser engraving machine
Mode of operation: Pulsed
Polarization: random
Nominal average: 10W - 30W For PEDB-400A /400B /400C
output power: 10W - 50W For PEDB-400D
Central: 1060-1070 nm ,Q-switched operation Output power adjustment
emission wavelength: range 10%-100%
Emission Bandwidth (FWHM): <10 nm
Long-term average power instability: <5%
Pulse width, (FWHM): 100 ns
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

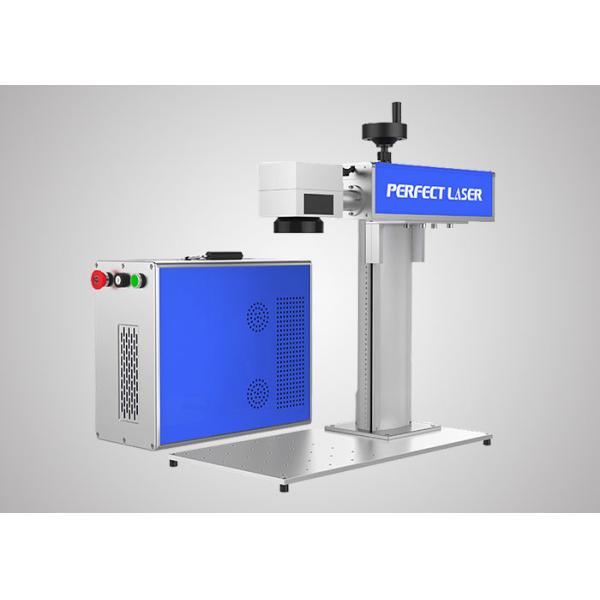

20kHz 1060nm Portable Laser Engraving Machine Stainless Steel

110×110mm High Precision Portable Stainless Steel Laser Engraving Machine


★ Product Introduction:


This stainless steel laser engraving machine uses an advanced fiber laser, which has fast marking speed and exquisite marking patterns. It has a variety of laser light sources with different powers to choose from, powerful, suitable for any material and industry, and has a wide span. The stainless steel laser engraving machine is small and exquisite, easy to carry and transport, strong endurance, can adapt to any difficult working environment, the laser can be overloaded without damage.


★ Features:

1. Using advanced high-quality laser, it can mark all kinds of complicated and fine patterns with perfect effect.

2.The laser source has a variety of different powers to choose from, which is suitable for different materials and industries without restriction.

3.The marking speed is faster than other non-desktop fiber laser marking machines.

4.It can adapt to any difficult working environment and the marking effect will not be affected.

5.The machine is small and flexible, easy to carry and transport.



★ Application:

1. This machine is widely used in jewelry, translucent plastic and various metal materials.

2.This machine is widely used in jewelry industry, stainless steel products, communication industry, daily necessities, auto parts manufacturing industry, food and beverage packaging industry, etc.


★ Technical Parameters:

Model NoPEDB-400APEDB-400BPEDB-400CPEDB-400D
TypePortableDesktopColorfulStandby
ComputerNot includes PCIncludes PC
Laser Source
IPG SeriesPulsed, High Energy Ytterbium Fiber Lasers
Mode of operationPulsed
Polarizationrandom
Nominal average

10W - 30W For PEDB-400A /400B /400C


output power10W - 50W For PEDB-400D
Central emission wavelength1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%

Emission Bandwidth

(FWHM)

<10 nm
Long-term average power instability<5%
Pulse width, (FWHM)100 ns
Laser switching ON time180 μsec
Laser switching OFF time180 μsec
Pulse Repetition Rate* kHz20-80 kHz
Energy per pulse (PRR = 20 kHz)0.95 mJ
Typical beam quality, M2<1.8
Output fiber delivery length3m
Operating voltage220V
Max. Power consumption600W
Net Dimensions70*20*50cm80*38*72cm70*20*50cm143*62*101cm
Net Weight44 kgs53 kgs44 kgs130 kgs
Gross Weight60 kgs70 kgs60 kgs200 kgs
Laser system
Scanning Speed0-7000mm/s
Marking Speed0-5000mm/s
Marking size110mm×110mm (F-theta 160)
Spot size≤ 40 micron (F-theta 160)
Cooling unitAir cooled
Pilot laser650nm diode laser, visible red light for marking guide
Continuous working time≥16h
Humidity45~85% (no condensation)
Operating temperature0~40℃
Control unitsLaser Mark (English Version)


★ Machine parts:



★ Packaging & Delivery:

1. Prompt deliver at the very day.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.


★Competitive Advantages:


1. 100% custom pass guaranteed.

2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

3. Flexible and Untraceable payment terms.

4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.
