| Categories | Pneumatic Solenoid Valve |
|---|---|
| Brand Name: | Brando |
| Model Number: | 4M310-10 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 pc |
| Price: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 200000 pcs per month |
| Delivery Time: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Valve Type: | 5 Way 2 Position |
| Port Size: | In=Out=3/8'' |
| Pressure Range: | 0.15 to 0.8MPa (21 to 114PSI) |
| Max Pressure Resistance: | 1.5MPa (215PSI) |
| Body Material: | Aluminum Alloy |
| Max. Frequency: | 5 Cycle / Second |
| Voltages: | 220V AC, 110V AC, 24V AC, 24V DC, 12V DC |
| Company Info. |
| Ningbo Brando Hardware Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
4M310-10 Airtac Type Namur Solenoid Valve 5/2 24VDC 220VAC
A NAMUR solenoid valve is directly mounted to pneumatic actuator inlet/outlet ports. The function of a NAMUR solenoid valve is to control media flow: the valve itself is controlled by an electric solenoid, which opens or closes the valve, by controlling the amount of air thru a pilot to the pneumatic actuator. The solenoid and actuator work in tandem to control flow speed, flow amount, and flow direction. Likewise, the valve is operated in either the normally closed, or normally open position. NAMUR Solenoid valves are available in several configurations, including 3 way and 4 way. They are commonly applied for operating double acting rack and pinion actuators.
Data of NAMUR Pneumatic Solenoid Valves:
| Model No | 4M110-M5 4M120-M5 | 4M110-06 4M120-06 | 4M210-06 4M220-06 | 4M210-08 4M220-08 | 4M310-08 4M320-08 | 4M310-10 4M320-10 |
| Fluid | Air (to be filtered by 40 μm filter element) | |||||
| Port Size | In=Out=M5 | In=Out=1/8'' | In=Out=1/8'' | In=Out=1/4'' | In=Out=1/4'' | In=Out=3/8'' |
| Orifice Size | 5.5mm² (Cv=0.31) | 12.0mm² (Cv=0.67) | 14.0mm² (Cv=0.78) | 16.0mm² (Cv=0.89) | 25.0mm² (Cv=1.40) | 30.0mm² (Cv=1.67) |
| Valve Type | 5 Way 2 Position | |||||
| Operating Pressure | 0.15 to 0.8MPa (21 to 114 PSI) | |||||
| Proof Pressure | 1.5MPa (215PSI) | |||||
| Temperature (℃) | -20 to +70 | |||||
| Body Material | Aluminum Alloy | |||||
| Max. Frequency | 5 Cycle / Second | 4 Cycle / Second | ||||
| Coil Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | |||||
| Coil Protection Class | IP65 | |||||
| Activating Time | 0.05 second and below | |||||

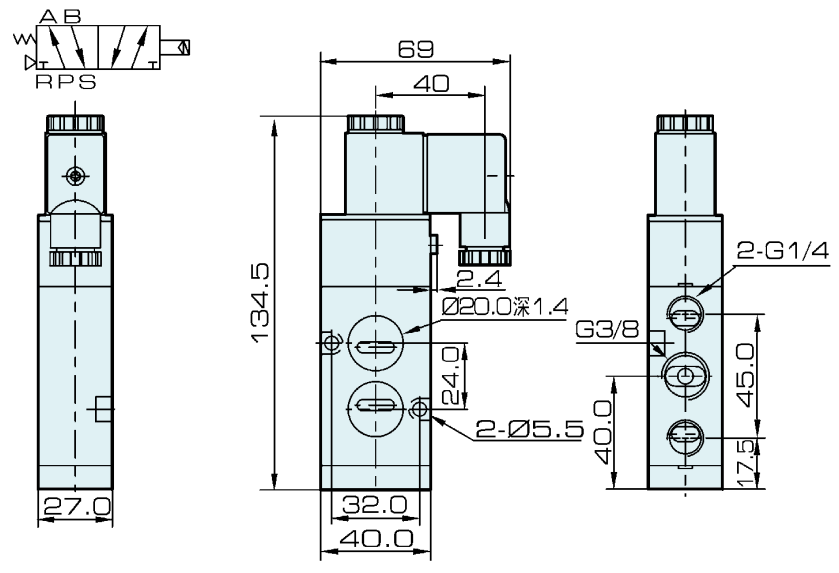

Dimension of 4M310-10 Namur Solenoid Valve:
