5 Gallon Filling Machine For Drinking Water Filling Line , 20 Liter Jar Water Bottling Plant

The 5 gallon water filling line mainly includes :

1. Decapping machine

2. Outside Washing machine

3. 5 gallon filling capping machine

4. cap elevator

Features of 5 gallon filling machine:

The machine specially produces gallons bottled drinking water.

The machine is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.

In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.

All the parts contacting the water and other liquid is made of stainless steel, whose surface is polished, easy to clean.

Technical parameter of 5 gallon filling machine:

Model	QGF-150	QGF-300	QGF-450	QGF-600	QGF-900
Filling heads	1	2	3	4	6
Volume	18.9	18.9	18.9	18.9	18.9
Barrel size	270*490	270*490	270*490	270*490	270*490
Capacity	150	300
Gas pressure	0.4 -0.6	0.4 -0.6	0.4 -0.6	0.4 -0.6	0.4 -0.6
Gas consumption	0.37	0.6	0.8	1	1.2
Motor power	1.75	3.8	3.8	7.5	9
Motor voltage	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Weight	700	1200	1600	2000	3500
Dimension	2800*1100*1600	3800*1300*1600	4200*1600*1600	4800*1800*1600	4200*2300*1600 2800*1000*1600

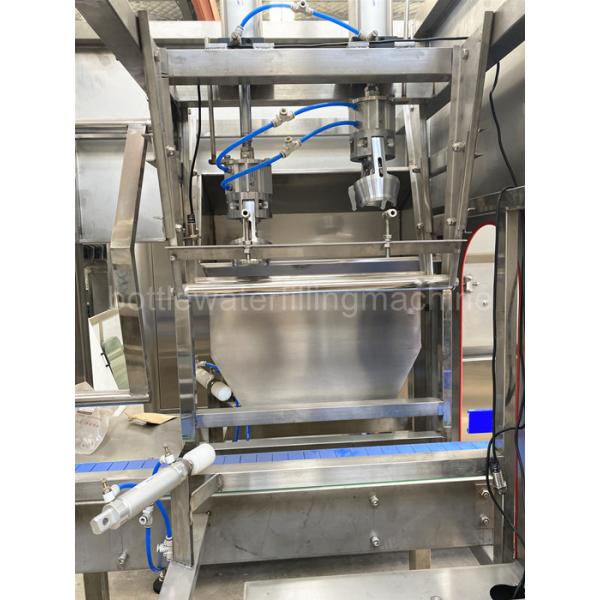

Automatic decapper--

After the bottle enters the extraction cover area, the detection element completes the detection of the barrel position, and the cylinder block of the bottle block position the barrel. Pull cover cylinder action, pull cover head overall down, grab cover cylinder action, grab cover back pull cover cylinder action, pull cover head overall up, complete pull cover.

5 gallon bottle filler

Zhangjiagang Jiayuan Machinery Co., Ltd. is located in Zhangjiagang city, which is near to Shanghai.

We professionally research, develop and manufacture beverage packaging machines. We are a high technology enterprise of Jiangsu Province, and the best supplier of China beverage packaging machinery area.

Since its founded 20 years ago. We are dedicated to the most advancement technology of beverage packaging machinery, and have always been conducting good up-to-date technical communication and exchange with leading Italy, Germany, France packaging companies.

We have a strong technology team for beverage packaging machines’ manufacture. There are many beverage experts in our company. We provide marketing analysis, project budget, equipment technical configuration, and training for operator etc.
