Car Lighting Aluminum Reflectors PVD vacuum metallization, Automobile light aluminum coating, reflection film coating

• For car lighting PVD coating, there are 2 techniques: DC magnetron sputtering and Resistance Thermal evaporation. Our standardized machine models:

RTEP1600-HMDSO, chamber inner size (diameter*H mm ) 1600*1980

RTEP1800-HMDSO, chamber inner size (diameter*H mm ) 1800*1980

RTSP1420-HMDSO,chamber inner size (diameter*H mm ) 1420*1980

RTSP1420-HMDSO, is for fast cycle demand (10 mins per cycle) which connect with Plastic Injection machine, after injection the parts go to PVD chamber directly for PVD+ HMDSO top coating.

RTEP1600-HMDSO, & RTEP1800-HMDSO, are thermal evaporation coating machines, which contains 6 or 8 planetary rods, depends on the max. Size of substrates. Cycle time 15~18 mins.

Advantages

A: 2-door structure machine for a fast loading/unloading, high yield;

B: Robust structure design;
C: High vacuum pumping speed configurations;

D: PLC + Touch Screen Operation System, fully automatically /Manually control;

E: Easy access to the working environment for maintenance work; F: The unique rotary rack and evaporation system to guarantee a high uniformity.

----- The height from substrate to evaporation source can be adjusted flexibly ;

----- Evaporation sources distance can be adjusted;
------Bombardment device for strong adhesion (your machine might not require this unit)
G: HMDSO module to do TOP protective layer. The PVD metallization and HMDSO (PECVD process ) completed in PVD machine chamber, avoid the contamination, which reduce the production cost and improve high yield.

The substrate materials:

• BMC part
• PC+ABS, ABS

Aluminum alloy

Aluminum Alloy Car lightings PVD coatings

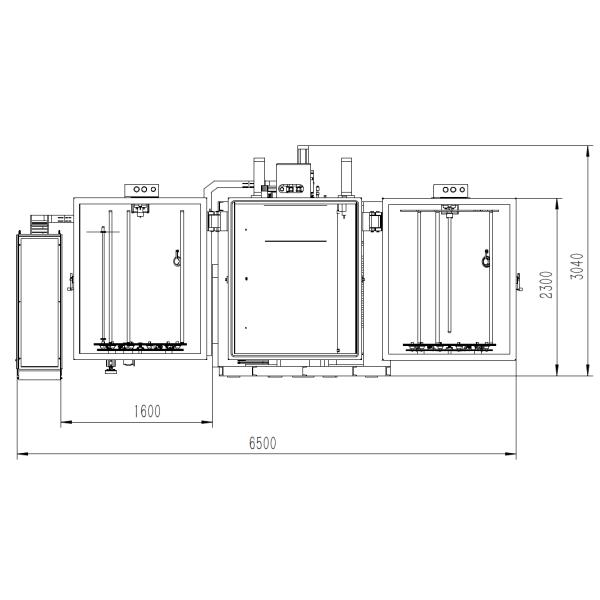

RTEP1600 Machine Layout

For more specifications, please contact us. Customized inquiries are welcomed.
