| Categories | Stainless Steel Pipe |
|---|---|
| Brand Name: | HAOSTEEL |
| Model Number: | HSRT304 304L 316 316L 316Ti 321 310S 2205 2507 |
| Certification: | ISO9001 SGS |
| Place of Origin: | CHINA |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Supply Ability: | 5000tons per month |
| Delivery Time: | 5-10 working days after order confirmed and receive deposit |
| Packaging Details: | Woven bags and plastic strips inside packing, wooden / iron pallet and steel strips outside packing. |
| Product: | 316 316L 316Ti 310S 321 Stainless steel coil tubing |
| Standard: | ASTM A312, ASTM A213, ASTM A249, ASTM A554 |
| Grade: | 201 304 304L 316 316L 321 310S 430 2205 |
| Surface: | Mill or Bright |
| Technique: | Cold Drawn Hot roll |
| Shape: | Round square pipe |
| Type: | Welded, seamless |
| Thickness: | 0.3mm ~ 20mm |
| OD: | 6mm ~800mm |
| Length: | Max 3500M |
| Company Info. |
| Shanghai Haosteel Co., Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

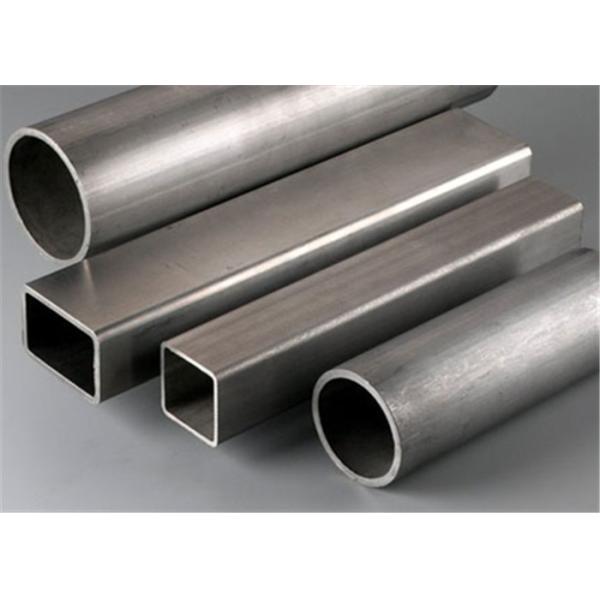

316 316L 316Ti 310S 321 304 321 Stainless steel tubing pipe
HAOSTEEL is one of the most professional manufacturer and supplier of stainless steel Tube.Stainless steel tube can be divided into seamless tube and welded tube according to production mode. Seamless tube can be divided into hot rolled tube, cold rolled tube, cold drawn pipe and extruded tube.The welded pipe is divided into straight welded pipe and spiral welded tube.
Description:
Haosteel have a large range of ASTM A249 304 304L 316 316L 316Ti 310S 321 317L 410 420 430 2205 2507 904L Stainless Steel Coil Pipe We offers a wide range of Round Pipes & Tubes, Coil, ‘U’ Shape tubes, Square pipes & tubes, Rectangular tubes, Seamless Pipe for the Chemical IndustryStainless Steel Pipes, TubesSeamless Steel Pipe for Boilers Capillary Pipes and Tubes
Grade: 201 304 304L 316 316L 316Ti 321 310S 317L 2205 2507 410 420 430 904L 625 825 ec t
Test : Yield strength, Tensile strength, Hardness ,Hydrapress Measurement
Guarantee&Inspection : The Third Party &Cetification ISO SGS
Advantage: We are a manufacturer . Lowest Price and Good Quantity
Composition Specification (%)
UNS Grade | ASTM Grade | Chemical Composition/% | |||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | Re | |||
| S31653 | 316LN | ≤0.03 | ≤2.00 | ≤0.45 | ≤0.030 | ≤2.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | N: 0.10-0.16 | |
| S31609 | 316H | 0.04-0.1 | ≤2.00 | ≤0.45 | ≤0.030 | ≤2.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | ||
| S31668 | 316Ti | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤2.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | Ti: ≥5C | |
| S31651 | 316N | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤2.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | N: 0.10-0.16 | |
Mechanical Property Specification
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa)min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HRB)max | Brinell (HB)max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
| 316Ti | 515 | 205 | 40 | 95 | 217 |
| 316H also has a requirement for a grain size of ASTM No 7 or coarser. | |||||
Physical Properties (typical values in the annealed condition)
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion | Thermal Conductivity | Specific Heat 0-100°C ( J/kg.K) | Electrical Resistivity (nW.m) | |||
0-100°C (mm/m/°C) | 0-315°C (mm/m/°C) | 0-538°C (mm/m/°C) | at 100°C (W/m.K) | at 500°C (W/m.K) | |||||
316 & 316L/H/Ti | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
|
