| Categories | Stationary Hydraulic Scissor Lift |
|---|---|
| Brand Name: | SDLIFT Or OEM |
| Model Number: | SJG |
| Certification: | CE ISO SGS |
| Place of Origin: | China |
| MOQ: | 1 UNIT |
| Price: | USD9800- USD18000 / UNIT |
| Payment Terms: | T/T |
| Supply Ability: | 1200 units per year |
| Delivery Time: | 30 days |
| Packaging Details: | Iron case or plywood case package |
| Application: | Heavy Duty Hydraulic Scissor Lift Warehouse Cargo Lift |
| Type: | 4 cylinders hydraulic scissor lift |
| Load weight: | 1ton-50tons |
| Lift height: | 1-12m |
| Safe Device: | Explosion-Proof Lock Valve |
| Surface Treatment: | high-grade anti-corrosion painting |
| Company Info. |
| Shandong Lift Machinery Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
· Parameters:
Load capacity: 1ton-50tons
Lift height: 1-12m
Platform size: as requests
Power: 220v/380v/400v/415v or as request

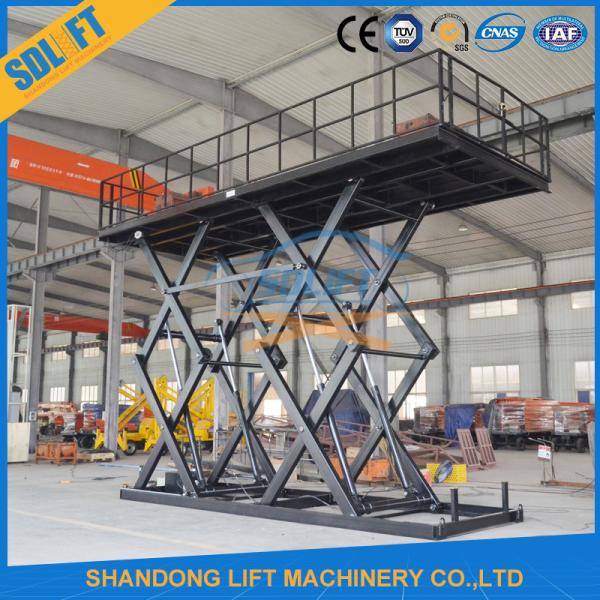

This kind of Double scissors Stationary Hydraulic Scissor Lift
adopts much more stronger Mn steel material to improve the load
capacity and lifting height. The platform size, lift height and
load capacity can be customized as per your request.
The load capacity can be from 1,000KG to 50,000KG, and lifting
height is from 1m to 12m.
· Configuration:
1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with
locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe: high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box, 1 hand controller, 2 remotes
· The frequent models we supplied for our clients:
MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG0.3-2 | 0.3T | 1.5m x 1.5m | 2m | 400mm | 220V, 240V, 380V or 400V |
| SJG0.5-3 | 0.5T | 2m x 1.8m | 3m | 500mm | 220V, 240V, 380V or 400V |
| SJG1-4.5 | 1T | 2.1m x 1.5m | 4.5m | 650mm | 220V, 240V, 380V or 400V |
| SJG1.5-4 | 1.5T | 2.2m x 1.6m | 4m | 600mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
The hydraulic warehouse elevator lift can be customized as your detailed size. | |||||

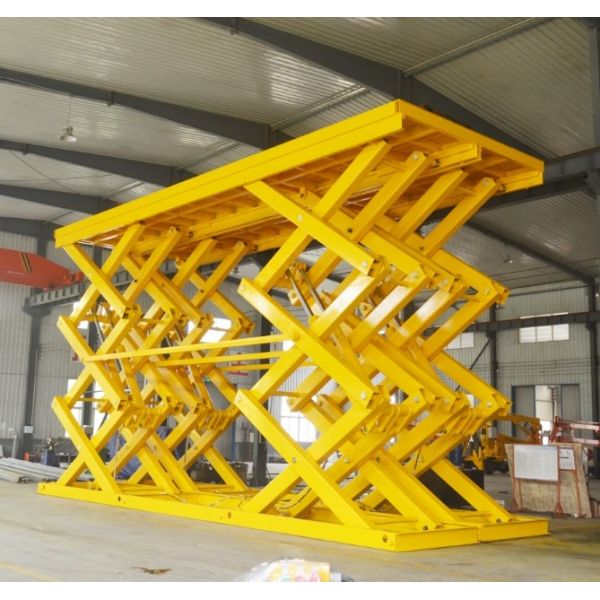

· Finished products in our factory:
· Service:
1) All Hydraulic Scissor Lifts sold must be 1.2 times tested before shipment, 100% quality.
2) 2 years warranty, with CE certification.
3) 24 hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free during warranty.
6) Professional design drawing can be designed and provided
according to customer installation site.
· CE Certificate:
· Customers visiting in our factory:
· Contact us:
General Manager : Owen Li
Shandong Lift Machinery Co., Ltd.
Address: No. 1677, Jinan Area of China (Shandong) Pilot Free Trade Zone, Shandong, China
Tel: 86-531-85882730 / 66957937 Fax: 86-531-66957937
Mobile / WhatsApp: +86 13969113583 Skype: shandonglift
E-mail: sale@shandonglift.com
|
