| Categories | Wood Grain Aluminum Extrusion |
|---|---|
| Brand Name: | Huilv |
| Model Number: | HL |
| Certification: | ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE |
| Place of Origin: | China |
| MOQ: | 300Kg |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000Tons/Year |
| Delivery Time: | Within 5-15 working days |
| Packaging Details: | Standard packing: *Transparent protection film, or cotton paper to protect each piece. *Transparent PE film outside each bundle/or Kraft paper. *Small profile to be inserted into bigger ones to save space EP paper inside for each piece then shrink pape |
| Name: | 2.0 Thickness Door Profiles Wooden Grain Transfer Aluminum Extrusion |
| Material: | Aluminum Alloy 6061 6060 6063 6005 T5 T6 |
| Used for: | Windows and door |
| Color: | Any wooden color as you need |
| Length: | 5.8M/6M |
| Surface treatment: | Wood Grain Transfer |
| Thickness: | 0.7MM-3.0MM |
| Production time: | 15-25 days |

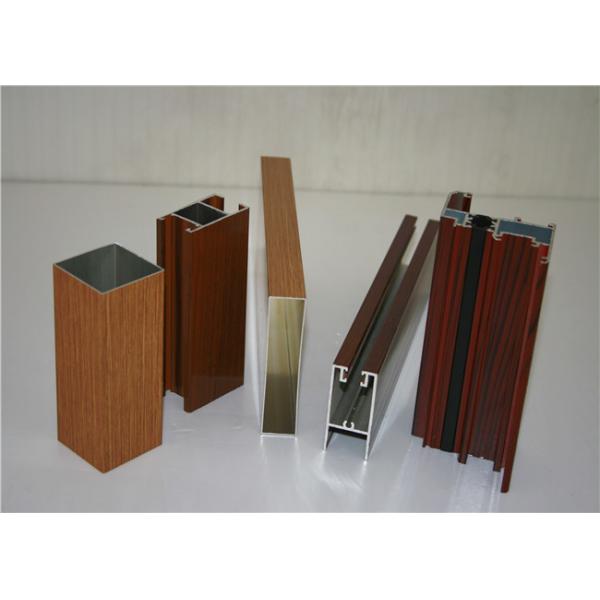

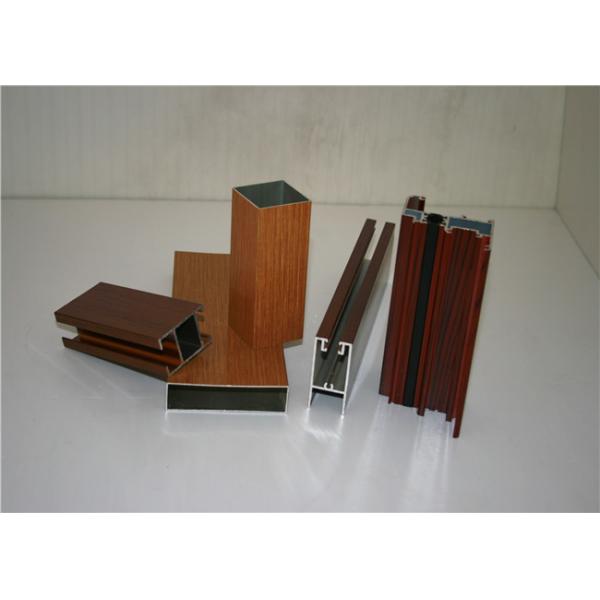

2.0 Thickness Door Profiles Wooden Grain Transfer Aluminum Extrusion
Wood Grain Transfer Aluminum Extrusion Advantages:
Creating an aluminum wood grain effect is simple with the power of powder coating and sublimation printing equipment. Dye sublimation of aluminum parts can be achieved after metal powder coating with specialized sublimation powder and it can help you put decorative designs on any metal part you can imagine.
Wood Grain Transfer Aluminum Extrusion Product Details:
| Surface Treatment: | mill finish,powder coating,anodize,polish,electrophoresis,wood transfer color |
| Hardness: | Min HW9 |
| Color: | Specified by customer according to international RAL color brand |
| Alloy Temper: | 6063/6061/6005/6005A T4,T5,T6 |
| Film Thickness: | 8-25um for anodize, 40-120um for powder coating |
| Thickness | 0.7mm aboved |
| Mold making | 10-15 days |
| time:Mold Cost: | About USD300 each and refund once quantity up to 5 tons each |
| Packing: | Plastic protective film+heat shrinking bag, or with pearl wool, as to client's require. |
| Delivery Time: | 20 days for 3*40HQ |
| Payment: | TT/LC |
| Standard: | GB/T 5237 |
Wood Grain Transfer Aluminum Extrusion Products Materials
Mechanical Properties
| Alloy | Temper | Thickness | T.S. | Y.S | ELOG. | Hardness | |
| σb (MPa) | σ0.2 (MPa) | δ% | HV | HW | |||
| 6005 | T5 | ≥ 0.8 | ≥260 | ≥240 | ≥10 | ≥85 | ≥15 |
6063 | T4 | ≥ 0.8 | ≥130 | ≥65 | ≥12 | - | - |
| T5 | ≥ 0.8 | ≥160 | ≥110 | ≥8 | ≥58 | ≥8 | |
| T6 | ≥ 0.8 | ≥205 | ≥180 | ≥8 | ≥65 | ≥10 | |
| 6061 | T4 | ≥ 0.8 | ≥180 | ≥110 | ≥16 | ≥65 | ≥10 |
| T6 | ≥ 0.8 | ≥265 | ≥245 | ≥8 | ≥85 | ≥15.5 | |
Aluminium Alloy: 6063, 6061, 6005, 6060 Thermal Treatment: T5, T6
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al | |
| Unit | Total | ||||||||||
| 6063 | 0.2-0.6 | <0.35 | <0.1 | <0.1 | 0.45-0.9 | <0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | <0.15 | 0.8-1.2 | 0.04-0.35 | <0.25 | <0.15 | <0.05 | <0.15 | Surplus |
| 6005 | 0.6-0.9 | <0.35 | <0.1 | <0.1 | 0.4-0.9 | 0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
| 6060 | 0.3-0.6 | 0.35-0.6 | 0.1-0.3 | <0.1 | <0.1 | <0.15 | <0.05 | <0.1 | <0.05 | <0.15 | Surplus |
Determination of gloss and luster
The light that is projected onto the surface of the object will reflect the light, and the surface of the object will be reflected in the light. Different surfaces have different gloss, measuring the size of the surface of the light reflected by the light, called glossiness. The gloss is expressed as a percentage, the higher glossiness of the surface, the greater the ability to reflect light and the higher the brightness. The size of the gloss is measured by the photoelectric gloss meter. According to the size of the gloss, the coating can be divided into light, sunlight and weak light. Classification of gloss of coatings (with 60 reflections) :
Weak light: gloss less than 10%;
Sublight: gloss 10 ~ 60%;
Light: glossiness > 60%.
Surface Treatment we could offer:
Mill Finish, Anodize,Powder Coating,Electrophoresis,Polish,Wood Color,Thermal Break
Shipment:
Standard loading quantity:
1*20GP:Max .length:5.85 meters Loaded quantity: 10 to 12 tons
1*40HQ:Max. length:12 meters Loaded quantity: 22-27 tons
Standard export port:
Shanghai/Nanjing/Wuhu Port
Type of shipping:
Shipment by sea; by road; by train; multi-transportation.
Production Line:
1 polish line
2 wood color line
3 powder coating line
4 anodize line
12 extrusion machine
Customized surface finishes are welcome:ome
1. Alloy and temper: 6061,6063 or other alloys, temper can be T4/T5/T6
etc
2.Excellent material for smooth and subtle edges, elegant
appearance.
3.Thickness: above 0.8mm
4. Usage: millions of different use.
5. High corrosion resistance, high weather resistance and good wear
resistance.
Overseas Market:
Africa: | Algeria,Egypt,Libya,Ethiopia,Senegal,Nigeria,South Africa | ||||||
| Europe: | Italy, Germany, Finland,United State,Ukraine,Cyprus | ||||||
| America: | Mexico,Brasil,Colombia,Venezuela,Argentina | ||||||
| Asia: | India,Philippines,Vietnam,Thailand,Malaysia,Singapore,Palestine | ||||||
|
