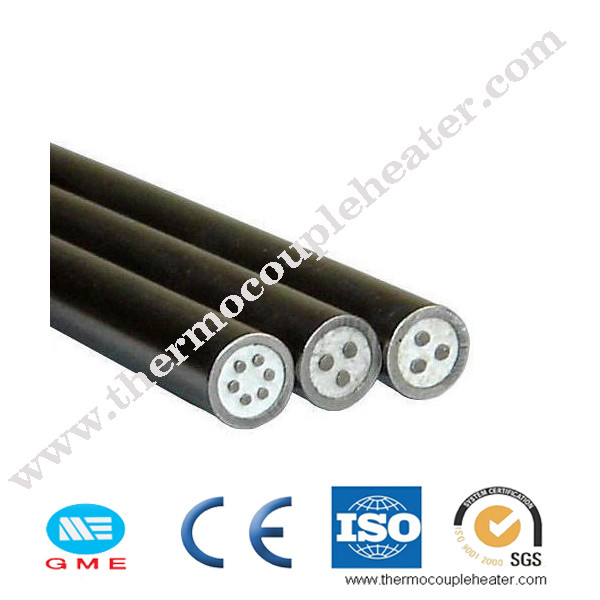

Mineral Insulated Type K J T E Thermocouple Mi Cable

Mineral insulated cable type k,j,t,e thermocouple mi cable

Description:

Features

Mineral Insulated Thermocouple Cable

Temperature range:-200-1300

MI cable: OD 0.25 - 8.00
Sheath material: Inconel 600, SS316, SS304, SS321.
Mini coil length: Per client's request
Accuracy: Class I, II
Wire: Simplex & duplex

Electric property:

Resistance value allowance:±10%

Dielectric property:heating cable pressure resist:1200V AC/1min

Insulation resistance:end product test:100MΩ/500VDC

Sheath continuity:all the heating cable submerged in the water 12 hours then test the insulation resistance,the value should be 50M/500VDC at least.

Wuhan Global Metal Engineering Co., Ltd (GME) specialize in the supply of heating elements and  temperature sensors(thermocouples & RTDs) for a vast array of industries since year 1995.

Our main products include but not limited to Coil heater, Cartridge heater, Flexible Tubular heater, Cast-in Heater, Band heater, Thermocouple, RTD’s, Thermocouple extension wire, Thermocouple connection head , Mineral Insulated thermocouple cables , thermowell, etc.

After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries including North America, South America, Europe, Middle East ,South Asia, etc.

More details, you can also visit our website: http://www.gmemetal.com
