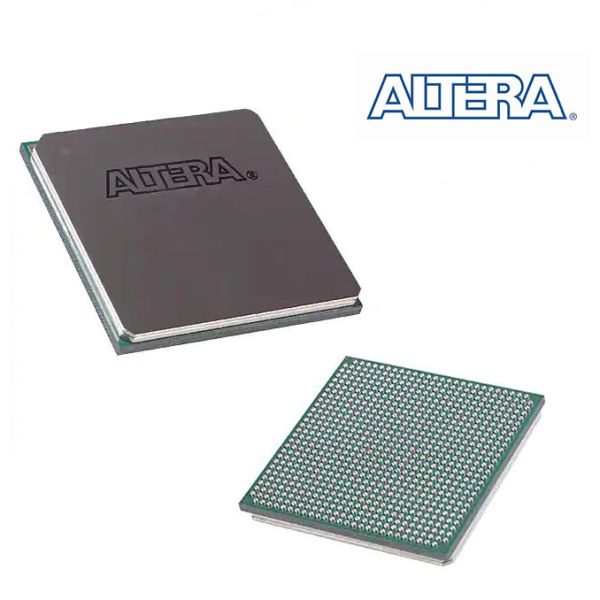

EP2SGX60CF780C4N 600Mb/S 364 I/O Stratix II GX

■ Main device features:
● TriMatrix memory consisting of three RAM block sizes to implement true dual-port memory and first-in first-out (FIFO)
buffers with performance up to 550 MHz
● Up to 16 global clock networks with up to 32 regional clock networks per device region
● High-speed DSP blocks provide dedicated implementation of multipliers (at up to 450 MHz), multiply-accumulate functions,
and finite impulse response (FIR) filters
● Up to four enhanced PLLs per device provide spread spectrum, programmable bandwidth, clock switch-over, real-time PLL
reconfiguration, and advanced multiplication and phase shifting
● Support for numerous single-ended and differential I/O standards
● High-speed source-synchronous differential I/O support on up to 71 channels
● Support for source-synchronous bus standards, including SPI-4 Phase 2 (POS-PHY Level 4), SFI-4.1, XSBI, UTOPIA IV, NPSI,
and CSIX-L1
● Support for high-speed external memory, including quad data rate (QDR and QDRII) SRAM, double data rate (DDR and
DDR2) SDRAM, and single data rate (SDR) SDRAM
