35Kg/M3 0.5mm Polyurethane Sandwich Panel Machine

50 Mm Panel Thickness Pu Density 35-50 Kg/ M3 Finger Protection Garage Door Sandwich Panel Production Line

Technical Parameter

1.1 5T Uncoiler

a) raw material: color steel sheet
b) motor power: 3Kw
c) hydraulic power: 2.2Kw
d) innder diameter of coil: 500mm- 600mm
d) outer diameter of coil: 1200mm
e) coil weight: 10T
f) sheet thickness: 0.3-0.8mm
g) sheet width: 1250mm
f) uncoil speed: 12m/min
g) hydraulic pressure: 6.3Mpa


1.2 Roll Forming Machine

a) sheet thickness: 0.3-0.8mm
b) roll forming speed: 8-12m/min
c) roller material: 40Cr, surface chrome coated, thickness 0.05mm
d) The way of width adjust: straight track, silk pole, reducer motor adjustable
e) width adjustable range: 400-600mm
f) Motow power: up panel 4Kw, down panel 7.5Kw
g) structrue: arm type adjustable, support roller in the middle
h) shaft diameter: 75mm


Main Components

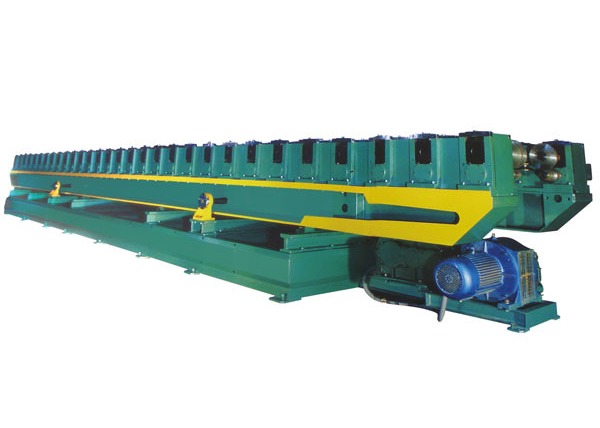

Machine Photo

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
