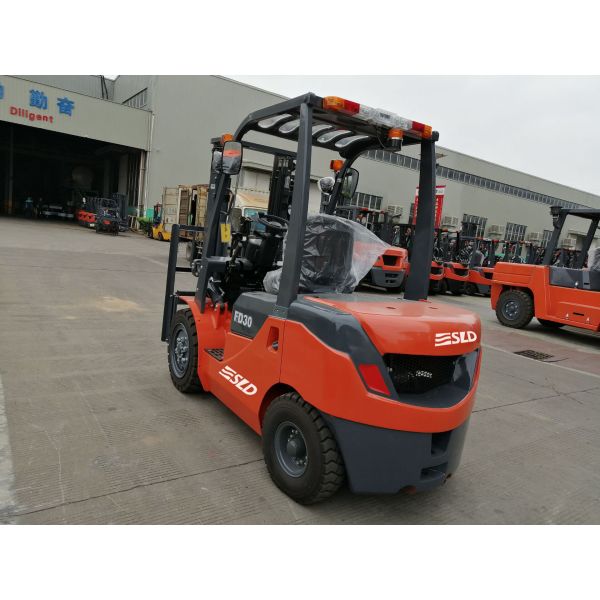

3m FD30 3000kg Diesel 3 Ton Forklift Truck With Side Shift

Categories Diesel Forklift Truck
Brand Name: SLD
Model Number: FD30
Certification: ISO, CE
Place of Origin: China
MOQ: 1 unit
Payment Terms: T/T, L/C
Supply Ability: 300 units per month
Delivery Time: 15 working days
Packaging Details: Nude
Power Type: Diesel
Rated load: 3000kgs
Load center: 500mm
Lift height: 3000mm
Wheelbase: 1700mm
Service weight: 4300mm
Fork size: 1070x125x45mm
Overall dimension(without fork): 2730x1225x2115mm
Engine: ISUZU or YANMAR
Transmission: Hydraulic
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3m FD30 3000kg Diesel 3 Ton Forklift Truck With Side Shift

Free Lift FD30 Diesel Forklift Truck 3 Tons ISUZU Engine Use In The Container With Side Shift


Forklift advantages:
1. Power System: forklifts are all with reliable power accessories,like Mitsubishi Engine. All accessories are support by domestic and world famous brand, high quality, reliable after-sales.We follow the strict environmental design,all engines match the China Ⅲ or even higher emission standards.
2. Super comfortable: forklifts are all with comfortable driving space,adjustable steering wheel and seats,super low and non-slip step,suspension steering axle,storing space,and convenient LCD panel.
3. Forklift can equip with different attachments according to your need.


Standard configuration: Japan ISUZU C240PKJ engine , hydraulic transmission, standard 2 stage mast lifting height 3000mm, fork length 1070mm, pneumatic tires, overhead guard, warning light etc.

Options: Chinese engine or Yanmar engine, solid tires, full cabin with A/C, triplex mast higher lifting height etc.


General





Model


FD30

FD35

Power Type


Diesel

Diesel

Load Capacity

kg

3000

3500

Load centre

mm

500

500

Tyre





Tyre



Pneumatic Tyre

Pneumatic Tyre

Front Tyre


28*9-15-12PR

28*9-15-12PR

Rear Tyre


6.50-10-10PR

6.50-10-10PR

Overall Dimension





Lift Height

mm

3000

3000

Fork Size

L×W×T

mm

1070*125*45

1070*125*50

Mast Tilt Angle

F/R

.

6/12

6/12

Mast Lowered Height

mm

2115

2115

Mast Extended Height(with backrest)

mm

4175

4150

Length to face of fork(Without fork)

mm

2710

2750

Overall Width

mm

1225

1225

Overhead Guard Height

mm

2090

2090

Travel Speed(Empty load)km/h1919
Lifting Speed(Full load)mm/s440420

Engine Option


ItemManufactureC/OModelNo.of CylinderDisplacement(CC)Rated Output/r.p.m(kw)Rated Torque/r.p.m(N.m)Bore*Stroke
1ISUZUJAPANC240NKFC-014236935.4/2500137.7/180086*102
2ISUZUJAPAN4JG2PE-014305946/2450184.7/1600-180095.4*107
3YANMARJAPAN4TNE98-BQFLC4331842.1/2300177.6-196.3/170098*110
4MITSUBISHIJAPANS4S4333135.3/2250169/170094*120
5XINCHAICHINAA498BPG-5204317045/2500193/180098*105
6XINCHAICHINAC490BPG-2364267040/2650160/1800-200090*105
