Mining Oil Well Drilling Gas Fishing Washover Pipe

Categories Drill Spare Parts
Brand Name: TR Solids Control
Model Number: TRTXG
Certification: API, ISO
Place of Origin: Xi'an China
MOQ: 1 pc
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000 Pcs Per Month
Delivery Time: 20 days
Packaging Details: Pallet or wooden case
Outer Diameter: 114.3 - 406.4 mm
Thickness: 8.56 - 16.66 mm
Application: Energy & Mining
Section Shape: Round
Processing Type: Forging
Color: Blue
Tolerance: ±1%
Secondary Or Not: Non-secondary
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

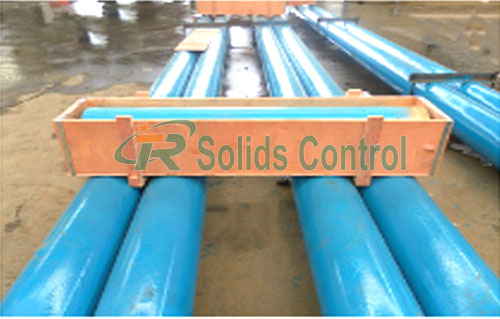

Mining Oil Well Drilling Gas Fishing Washover Pipe

Oil Well Drilling and Gas Fishing Services Washover Pipe

Product Overview


Washover pipe is a special tool to release the stuck section of drill string in the well bore. ROBUST offers a complete range of washover pipe in the industry. ROBUST unique FJWP thread is a two-step double shoulder thread which assure quick make up and high torsion strength.

The two-stage thread used on the wash over pipe is a new-type connection, producing in the 80’s in America. Especially, the special wash over pipe is a serial product.


Main Accessories of Our Washover Pipe:

Lift Plug:
Lift Plug is designed to provide an economical method of handling washover strings. It is available in all thread types and size, has sufficient shoulder diameter to support handling the washover string.

Washover Safety Joint:
Washover safety joint is manufactured to provide safe and easy release and make-up whenever disengagement from the washover string becomes necessary. This dependable, field-tough tool is designed to transmit torque in either direction when placed in the washover string.

Rotary Shoes

Rotary Shoes are manufactured from specially heat treated alloy to provide ultimate toughness and durability. They are used to cut and create a clearance between the fish and the wall of the well bore.

Technical Parameters of TR Washover Pipe

TYPE

O.D

mm

I.D

mm

Min O.D

Of using

mm

Diameter of the fish To be Cut

mm

Max.Tensile Load

kN

Max. Working TorqueN•m

Sealing Pressure

MPa

TXG114.30-8.56 114.30 97.18 120.65 80.90 390 9490 20
TXG127-9.19 127.00 108.62 146.05 101.60 440 12202 20
TXG139.70-9.17 139.70 121.36 152.4 117.48 500 14914 20
TXG146.05-7.92 146.05 130.21 161.93 127.00 500 14914 20
TXG146.05-9.00 146.05 128.05 161.93 120.65 560 16269 20
TXG168.28-8.94 168.28 150.39 187.33 142.88 600 21693 15
TXG177.80-9.19 177.80 159.42 200.03 152.40 640 24404 15
TXG193.68-9.53 193.68 174.63 212.73 168.28 700 31183 15
TXG193.68-10.92 193.68 171.83 212.73 165.10 810 36607 15
TXG193.68-12.70 193.68 168.28 212.73 161.93 1060 43386 15
TXG203.20-9.53 203.20 184.15 215.90 177.00 820 32539 15
TXG206.38-9.40 206.38 187.58 215.90 177.80 830 32539 15
TXG219.07-11.43 219.07 196.21 244.48 187.33 1100 47453 15
TXG219.07-12.70 219.07 193.67 244.48 184.15 1220 54232 15
TXG228.60-10.80 228.60 207.01 250.83 200.03 1260 47453 15
TXG244.48-11.99 244.48 220.50 266.70 212.73 1450 67791 15
TXG244.48-13.84 244.48 216.80 266.70 206.37 1560 81349 15
TXG273.05-11.43 273.05 250.19 290.45 238.13 1620 81349 15
TXG273.05-12.57 273.05 247.91 298.45 234.95 1640 88128 15
TXG298.44-12.42 298.44 273.60 323.85 263.53 1800 108465 10
TXG339.72-13.06 339.72 313.60 365.13 301.62 2020 149140 10
TXG406.40-16.66 406.40 373.08 444.50 355.60 2500 254894 7.0

Our Service


1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
2. Our promise: Any equipment sold by our company at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, we will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
