| Material: | FR4 |
| layers: | 8 |
| Maximum Size: | 600mm x 1200mm |
| Finish Hole: | 0.10mm-6.30mm |
| Drilling Hole: | 0.15mm-6.35mm |
| Legend: | White |
| Impedance Control Tolerance: | ±10% |
| Solder mask color: | Black |
| Surface finish: | ENIG |
| Testing service: | 100% Electrical Test |
| Company Info. |
| Abis Circuits Co., Ltd. |
| View Contact Details |
| Product List |

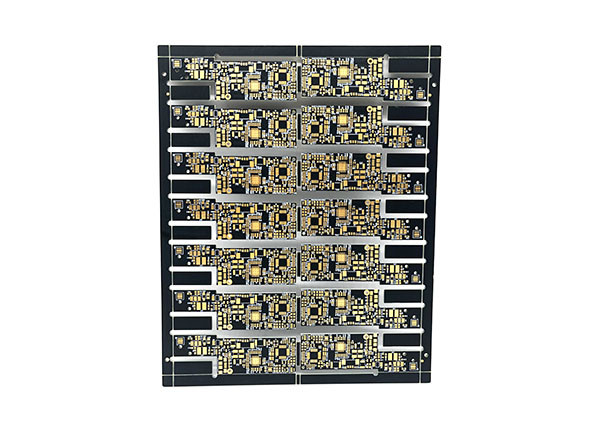

FR4 Rigid Board Material HDI PCB Board EING Surface Finishing With Black Solder Mask White Legend
1.Company introduction
Abis Circuits Co., Ltd is a professional PCB manufacturer for more than 10 years which was focus on double side, Multilayer and HDI PCB mass production. Our company was founded in 2006. We have two factories together. The factory in Shenzhen is specialized in small and middle volume orders and the factory in Huizhou is for big volume and HDI. Our aim is help the clients gain more competitive strength and bring more mutual benefit to each other. All customer will be served well. If you have any request, please don't hesitate to contact us!
2.Factory
| No | Items | Capability |
| 1 | Layers | 1-20 layers |
| 2 | Base Material | FR4, High TG FR4, PTFE,Cu base, Rogers, Aluminium base, etc |
| 3 | Max. Size | 600mm x 1200mm |
| 4 | Board Outline Tolerance | ±0.10mm |
| 5 | Board Thickness | 0.20mm-8.00mm |
| 6 | Thickness Tolerance(t≥0.8mm) | ±8% |
| 7 | Thickness Tolerance(t<0.8mm) | ±10% |
| 8 | Insulation Layer Thickness | 0.075mm-5.00mm |
| 9 | Min. Line | 0.075mm |
| 10 | Min. Space | 0.075mm |
| 11 | Out Layer Copper Thickness | 18um-350um |
| 12 | Inner Layer Copper Thickness | 17um-175um |
| 13 | Drilling Hole(Mechanical) | 0.15mm-6.35mm |
| 14 | Finish Hole(Mechanical) | 0.10mm-6.30mm |
| 15 | Diameter Tolerance(Mechanical) | 0.05mm |
| 16 | Registration(Mechanical) | 0.075mm |
| 17 | Aspect Ratio | 16:01 |
| 18 | Solder Mask Type | LPI |
| 19 | SMT Mini. Solder Mask Width | 0.075mm |
| 20 | Mini. Solder Mask Clearance | 0.05mm |
| 21 | Plug Hole Diameter | 0.25mm*0.60mm |
| 22 | Impedance Control Tolerance | ±10% |
| 23 | Surface Finish | HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, etc. |
| 24 | PCB Package | Vacuum & Carton |
4.Lead time
| Category | Quickest Lead time | Normal Lead Time | Mass Production | |||
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days | |||
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days | |||
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days | |||
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days | |||
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days | |||
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days | |||
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days | |||
| 16-20 Layers | Depends on the specific requirements | |||||
| Above 20 Layers | Depends on the specific requirements | |||||
5.Certificate
6.Workshop
7.Customer Distribution
8.FAQ
Q1: How can I get a quotation:
-Please send gerber file with format: .PCB / .P-CAD / .DXP /
.Gerber
Q2: How long have you been in business?
-We have been supplying printed circuit boards since 2006.
Q3: What information do I need to provide to get a price quote for my
project?
-We can never have too much information. At a minimum we need gerber data, generally in RS274x format, Excellon drill file, PCB specification,quantity and lead times.
Q4: Will my PCB files be checked?
-Checked within 12 hours. Once Engineer's question and working file
be approved, production will start.
Q5: What do you require in order to produce an assembly quotation?
-Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity
Q6: Do you handle PCB quick turnaround?
-Yes, we do. We can turn 1-2layers boards in one day, for 4-6layers pcb we build them in 3-5 days.
|
