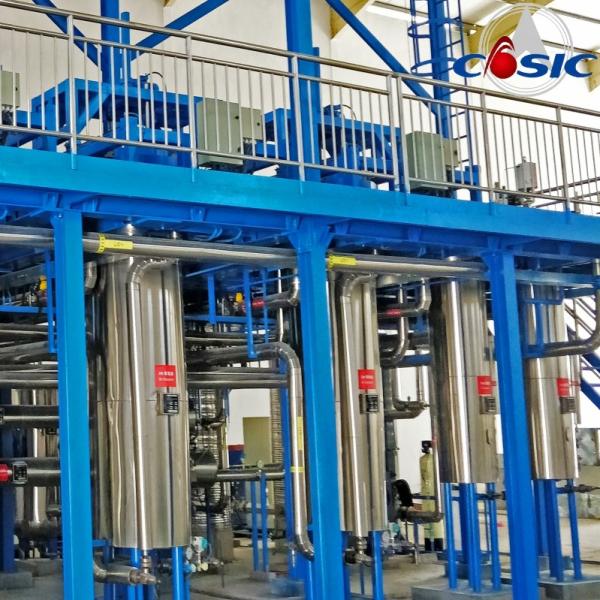

600L×3 Zanthoxylum Oil Co2 Extraction Device

600L×3 Zanthoxylum Oil Supercritical CO2 Extraction Machine

The plant of 600L×3 is three extractor two separator SCE machine, the working medium is CO₂, which can be reused. The extract, separate pressure and temperature can be automatic and remote controlled by computer. The extractors can work with the way of series, parallel and single. The series valves on the import and export of each extractor can be manual controlled, the highest working pressure control method of each extractor during working is by the use of pressure transmitter, safety valve and control signals. It is safety and reliable. The extractor cover of this plant uses hydraulic pressure quick opening structure. The metal contact with material of this plant, such as container inner surface, pipe, valve and so on. All of them are manufactured with stainless steel which has the characters of anti-sour and anti-alkali and satisfy food hygiene demand.

The max design pressure of this plant is 350bar, the highest working pressure is 320bar, We will strict carry out the related standard and rule demand during design, manufacture, test, installation and commissioning.

The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature, outside is thin stainless steel, which will make our device beauty.

Turnkey project, after commissioning, test run with materials, promise that the machine can get the product.

GAWEE is a professional high-tech company which is located in the famous Zunyi City,Guizhou provice,China.

GAWEE has been engaged in the research of supercritical fluid technology for 20 years, including supercritical CO₂ extraction,supercritical CO₂ drying, supercritical printing and dyeing, supercritical foaming, supercritical water oxidation, etc.

GAWEE has established the only national class Engineering Research Center for Supercritical Fluid Technology and Equipment in China.

GAWEE has provided more than 300 sets industrial-scale SCFE machine and dozens of pilot-size machine all over the world，
which are used in food, cosmetics, medicine, industry and other fields.

With the development of supercritical technology and equipment, GAWEE built the largest aerogel supercritical production line to
produce aerogel composite in China.
