Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

Categories Hydraulic Drive Motor
Brand Name: HANJIU
Model Number: BMK2 MOTOR
Certification: CE
Place of Origin: CHINA
MOQ: 10pieces
Price: Negotiable
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 300000PCS PER YEAR
Delivery Time: 25-30DAYS
Packaging Details: 2PCS IN ONE CARTON,800PCS IN 20'FCL
Application: Harvesting equipment
displacement: 500cc
Max.speed(rpm): cont.153rpm/int.230rpm
Max.torque(N.m): cont.845N.m/int.930N.m
Max.pressure drop: cont.12Mpa/int.14Mpa
Oil temperature: normal-35℃-80℃
Viscosity: 42-74mm2/s
Features: match /M+S/Eaton/Char_lynn
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

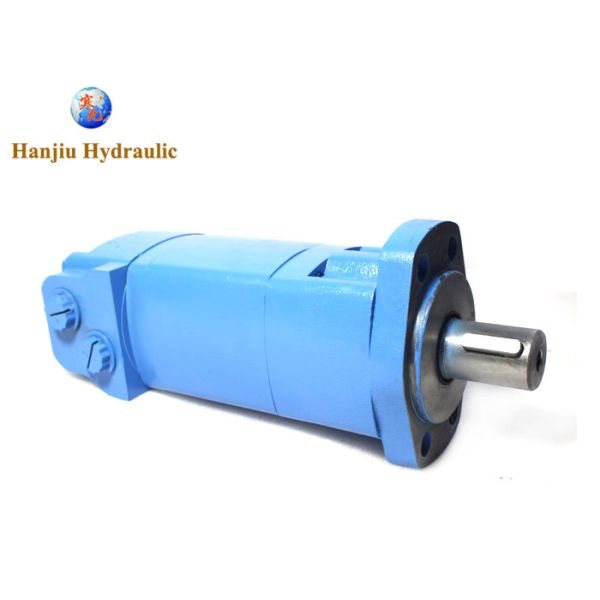

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

2000 Series Geroler Motor, 29.8 cu in/rev,


4 Bolt Magneto Mounting Flange,31.75mm Shaft


7/8-14 St.Thd. O-Ring

BrandHANJIU
Displacement29.8 Cir
Product TypeSimple product
FeaturesBlue Paint
Mount4 Bolt Magneto
Ports7/8-14 St.Thd. O-Ring
Supplier Part Number104-3917-006
Product Weight27.00 lbs


Main specification


TYPE

BMK2
125CC

BMK2

160CC

BMK2
200CC

BMK2
250CC

BMK2
315CC

BMK2
400CC

BMK2

475CC

Displacement(ml/r)129.8156.8193.4242.5304.3390.8485

Max.Pressure.Drop(Mpa)
cont.2120.520.520.52115.512
int.31262626241714
peak.313131313120.517
Max.Torque(N.m)cont.385455540660765775845
int.560570665820885925930
Speed.Range(r/min)cont.576477385308246191153
int.720713577462365287230
Max.Flow(cont.)(L/min)cont.75757575757575
int.95115115115115115115
Weight(kg)1010.210.51111.51212.4






Benefits
• Lowest pressure drop motor in the industry
• Widest range of options
• The most experienced manufacturer of LSHT motors
Applications
• Swing motor
• Brush Cutters & mowers
• Harvesting equipment
• Directional boring
• Turf equipment
• Skid Steer loaders
• Fairway mowers
• Harvesters
• Mowing
• Snow removal
• Sprayers
• Trencher
• Wood products
• Grinders and mixers
• Forestry equipment
• Irrigation reels
When the job is tough—perhaps the harvest is long, or the brush to be cleared is thicker than usual
—nobody has time for a faulty, unreliable motor.
HANJIU answers the call with medium pressure disc valve motors that provide higher flows
and pressures than spool valve motors. Whether the system requires standard mount,
wheel mount ,Hanjiu medium pressure motors deliver unrivaled performance for a variety of applications.


We are offering an exclusive range of Gerotor Motor to valued clients. Our engineers develop this range using optimum quality material and modern equipment. Furthermore, our products are highly appreciated for long-lasting nature. Quality tested on various constraints, these products promise international standards. Additionally, we are capable in making these products available in bulk quantity and in time.
