2B9-250 Goodyear Suspension Air Spring Triangle 6332 For Ridewell 1003586943C

2B9-250 Goodyear Suspension Air Spring Triangle 6332 For Ridewell 1003586943C

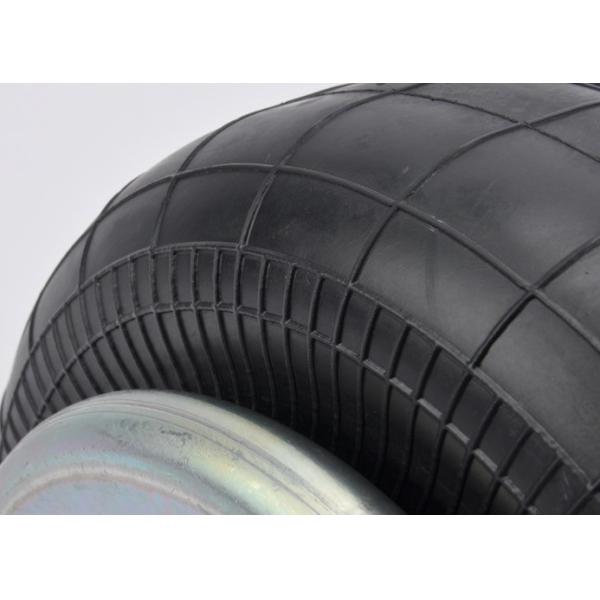

Description of 2B9-250 convoluted air spring:

2B9-250 corrugated air spring is a bellows type GUOMAT air spring. The bellows air spring has one, two or three convolutions in the flexible member. The 2B9-250 double complex airbag is commonly used as lifting springs or shaft trucks and trailers to reduce vibration from air springs, as well as actuators or insulators in industrial and commercial applications and equipment. The specifications of 2B9-250 will be different, but the double-pleated GUOMAT bag adopts crimp design and sleeve type bellows. They will provide similar features and functions, but are permanently connected to the sleeve type of the retainer and to the final connection between the retainer and the pleated ring of the external replaceable part.

GUOMAT 2B6943 Specifications and Technical Data

Compressed Height: 3.12 inches /

Top Plate Number: 3101

Top Cover Plate Diameter: 6.31 inches /

Top Cover Plate Diameter:160mm

Bottom Piston Number: 3090

Bottom Cover Plate Diameter: 6.31 inches /

Bottom Cover Plate Diameter:160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsX1/2-13UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Rubber Bellows MAX Diameter: 262 mm

The Working Stroke : MAX 325 mm to MIN 79 mm

Gas Hole / Air inlet : 1/4 NPTF

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

Loading Capacity at 20 psig: 648 lbsf

Loading Capacity at 60 psig: 1,944 lbsf

Loading Capacity at 90 psig: 2,916 lbsf

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº

Goodyear: 2B9-250 Cross others OEM

GUOMAT Part Number:2B6943

Goodyear Part Number: 2B9-250

Goodyear Part Number: 2B9 250

Goodyear Part Number: 2B9250

Goodyear Bellows Number: 578-92-3-206 /

Goodyear Bellows Number:578923206 /

Goodyear Bellows Number:578 92 3 206

Firestone Part Number: W01-358-6943 /

Firestone Part Number:W013586943 /

Firestone Part Number:W01 358 6943

Other kinds of 2B9-250 that GUOMAT have:
