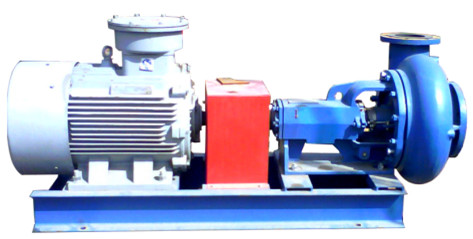

Solid Control System Drilling Sand Pump Model SB8×6×14 API Standard
Product Description
Sand Pump is mainly used to transport drilling mud, it can be used as a slurry pump for de-sanding, desiltering and centrifuges. It can be used as a mixing pump for jet mixing, and it is also be used as an infusion pump for recharge and mud pumps.
Technical Parameters
Model Sec | SB8x6x14 | SB8x6x11 | SB6x5x11 | SB4x3 | SB3x2 |
Discharge Capacity (m3/h) | 240~260 | 220~240 | 180~220 | 60 | 50 |
Pump Head (m) | 28~33 | 24~28 | 24~28 | 22~28 | 22~28 |
| Efficiency | 65% | 65% | 65% | 65% | 65% |
Motor Power(kW) | 55/75 | 37/45 | 30/37/45 | 11/15 | 7.5/11 |
Motor Speed(rpm) | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 |
Inlet Diameter (in) | 8 | 8 | 6 | 4 | 3 |
Outlet Diameter (in) | 6 | 6 | 5 | 3 | 2 |
| Weight (kg) | 1150 | 1050 | 920 | 460 | 400 |
Dimensions (mm) | 1920x652x1015 | 1800x600x980 | 1788x580x900 | 1360x500x632 | 1355x500x632 |
|
