Cementing 1000 Hp 100000lbf Quintuplex Plunger Pump

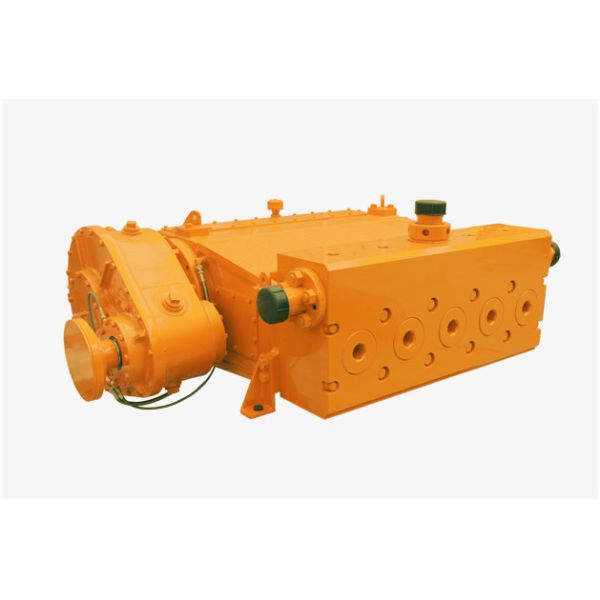

Truck Mounted Drilling Rig Quintuplex Plunger Pump Model JR1000QS

JR1000QS pump is a quintuplex plunger pump with offset design similar to JR600S in configuration, yet with higher horsepower and larger displacement under the same pressure. The compact structure enables twin-pump layout on one unit, making it the top choice of cementing and fracturing unit.

Specifications

Rated Brake Horsepower: 1000 hp	Gear Ratio: 4.61:1
Maximum Rod Load: 100,000lbf	Overall Dimension: 50.87×74.6×26.89 in
Stroke Length: 6 in	Weight: 7,231 lbs

Plunger Dia.	Disp.	Displacement at Pump Strokes per Minute
in (mm)	gal/rev (L/rev)	50		100		120		200		300		450
in (mm)	gal/rev (L/rev)	gpm (L/min)	psi (MPa)	gpm (L/min)	psi (MPa)	gpm (L/min)	psi (MPa)	gpm (L/min)	psi (MPa)	gpm (L/min)	psi (MPa)	gpm (L/min)	psi (MPa)
2 3/4	0.77	39	16,836	77	16,836	93	16,665	154	9,999	231	6,666	347	4,444
69.85	2.92	146	116.1	292	116.1	350.4	114.9	584	69	876	46	1,314.00	30.6
3	0.92	46	15,000	92	14,147	110	14,003	184	8,402	275	5,601	413	3,734
76.2	3.48	173.8	103.5	347.5	97.6	417	96.6	695	57.9	1,042.50	38.6	1,563.80	25.8
3 1/2	1.25	62	10,394	125	10,394	150	10,288	250	6,173	375	4,115	562	2,743
88.9	4.73	236.5	71.7	473	71.7	567.6	71	946	42.6	1,419.00	28.4	2,128.40	18.9
4	1.63	82	7,958	163	7,958	196	7,877	326	4,726	490	3,151	734	2,100
101.6	6.18	308.9	54.9	617.8	54.9	741.3	54.3	1,235.60	32.6	1,853.30	21.7	2,780.00	14.5
4 1/2	2.07	103	6,288	207	6,288	248	6,224	413	3,734	620	2,489	929	1,660
114.3	7.82	390.9	43.4	781.9	43.4	938.3	42.9	1,563.80	25.8	2,345.60	17.2	3,518.40	11.4
Brake Power (hp/kW)		421/314		842/628		1,000/746		1,000/746		1,000/746		1,000/746
Input Speed (rpm)		231		461		553		922		1,383		2,075
