| Categories | Aluminium Alloy Coil |
|---|---|
| Brand Name: | DZSICO |
| Model Number: | 3003 Aluminium Sheet coil |
| Certification: | SGS | ISO | CE | BV |
| Place of Origin: | CHINA |
| MOQ: | 5000 Kilograms |
| Price: | 5000 - 15999 Kilograms = $2.25, 16000 - 49999 Kilograms = $2.24, ≥ 50000 Kilograms = $2.23 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 Ton/tons Per Month 3003-H14 Aluminum Alloy Coils |
| Delivery Time: | 1-10T - 7Days, 11-25T - 10Days, 26-100 - 10Days, > 100-To be negotiated |
| Packaging Details: | Standard Seaworthy Package Or As Customers Requirement |
| Grade: | 3000 Series |
| Temper: | O-H112 |
| Type: | Plate, Strip, Sheet, Plate, Coil |
| Application: | Kitchenware, Oil Tank, Storage Device, Etc |
| Width: | 50mm-2400mm |
| Surface Treatment: | Mill Finish, Mill Finish |
| Tolerance: | Thickness ±3% |
| Processing Service: | Bending, Decoiling, Cutting |
| Color: | Silver Or As Required |
| Company Info. |
| DZ Iron Steel Group |
| View Contact Details |
| Product List |

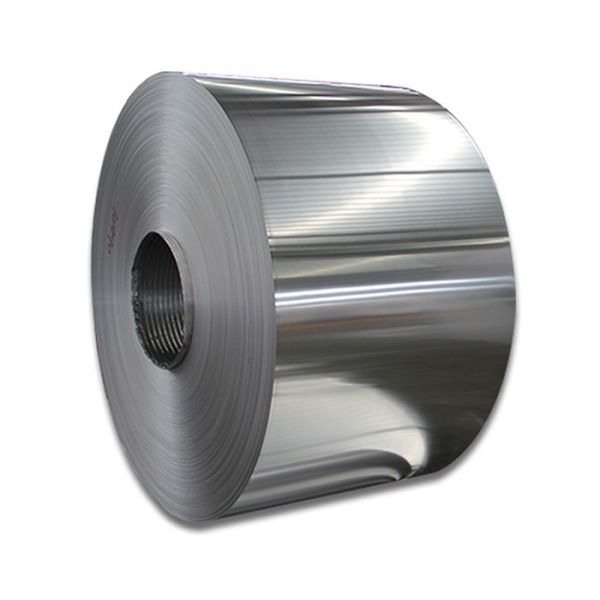

Aa 3003-H14 Aluminum Alloy Sheet Material Coil Pipe, Anodizing, Size, Weight
Aluminum alloy 3003 contains about 1.25% manganese and 0.1% copper, which increase the strength approximately 20% above the 1000 series aluminum grades. this is often the foremost widely used of all aluminum alloys and it's all the superb characteristics of alloy 1100 with higher strength. it's a medium strength alloy that's hardenable only by cold work and isn't heat treatable. it's good weldability, formability and corrosion resistance. Typical applications include general sheet work requiring greater strength than is provided by 1000 series aluminum alloys, profiled building sheet (roofing and siding), insulation panels, food and chemical handling equipment. |
3003-h14 aluminum material properties
Mechanical Information | ||||
Density | Ultimate Tensile Strength | Yield Tensile Strength | Fatigue Strength | |
|---|---|---|---|---|
Imperial | 0.1 lb/in3 | 22,000 psi | 21,000 psi | 9,000 psi |
Metric | 2.78 g/cc | 152 MPa | 145 MPa | 62.1 MPa |
Mechanical Information | ||||
Modulus of Elasticity | Shear Modulus | Shear Strength | Melting Point | |
|---|---|---|---|---|
Imperial | 10,000 ksi | 3,630 ksi | 14,000 psi | 1,190-1,210 F |
Metric | 68.9 GPa | 25 GPa | 96.5 MPa | 643-654 C |
Mechanical Information | ||||
Electrical Conductivity | Hardness Brinell | Elongation at break percentage | Poissons Ratio | Machinability Percentage |
|---|---|---|---|---|
44% IACS | 40 | 16 | 0.33 | 30 |
Chemistry Information | |
Element | Percentage |
Al | 98.7 |
Cu | 0.05 - 0.2 |
Fe | 0.7 max |
Si | 0.6 max |
Mn | 1 - 1.5 |
Zn | 0.1 max |


Q: Are you trading company or manufacture?
A: We are Industry and Trading company.
Q:How long is your delivery time?
A: About 15-20 days.
Q:Do you provide samples? Is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the
cost of freight.
Q:Can you do customized design and size?
A:Yes,we accept product customization
Q:What is your terms of payment?
A:We accept L/C T/T.
|
