| Categories | Razor Barbed Wire |
|---|---|
| Brand Name: | SHUXIN |
| Model Number: | bto - 22 |
| Certification: | CE ISO SGS COC PVOC |
| Place of Origin: | CHINA |
| MOQ: | 10 rolls |
| Price: | Negotiated |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 set per week |
| Delivery Time: | 15 work days |
| Packaging Details: | Pallet |
| Material: | steel wire |
| surface: | galvanized |
| Feature: | easily install, easily clean,long lifetime |
| Coil Diameter: | 500mm-980mm |
| life duration: | ≥ 20 years |
| warranty: | ≥ 3 years |
| Company Info. |
| Hebei KN Wire Mesh Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Applications:
Razor barbed wire is widely used by many countries in military
field, prisons, detention houses, government buildings
and other national security facilities. Recently years, barbed tape
has apparently become the most popular high-class
fencing wire for not only military and national security
applications, but also for cottage and society fence, and other
private buildings.

| Specification of Razor Barbed Wire | |||||
| Model | Thickness | Wire Dia | Barb Length | Barb Width | Barb Spacing |
| BTO-10 | 0.5+/-0.05mm | 2.5+/-0.1mm | 10+/-1mm | 13+/-1mm | 26+/-1mm |
| BTO-12 | 0.5+/-0.05mm | 2.5+/-0.1mm | 12+/-1mm | 15+/-1mm | 26+/-1mm |
| BTO-18 | 0.5+/-0.05mm | 2.5+/-0.1mm | 18+/-1mm | 15+/-1mm | 38+/-1mm |
| BTO-22 | 0.5+/-0.05mm | 2.5+/-0.1mm | 22+/-1mm | 15+/-1mm | 38+/-1mm |
| BTO-28 | 0.5+/-0.05mm | 2.5+/-0.1mm | 28+/-1mm | 15+/-1mm | 53+/-1mm |
| BTO-30 | 0.5+/-0.05mm | 2.5+/-0.1mm | 30+/-1mm | 21+/-1mm | 54+/-1mm |
| BTO-60 | 0.6+/-0.05mm | 2.5+/-0.1mm | 60+/-2mm | 32+/-1mm | 102+/-1mm |
| BTO-65 | 0.3+/-0.05mm | 2.5+/-0.1mm | 65+/-2mm | 21+/-1mm | 102+/-1mm |
| Outside diameter | No. of loops | The utmost effective length | Type | Notes |
| 450mm | 33 | 7-8M | CBT 60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT 60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT 60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT 60.65 | Single coil |
| 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |

Daily production 100 tons

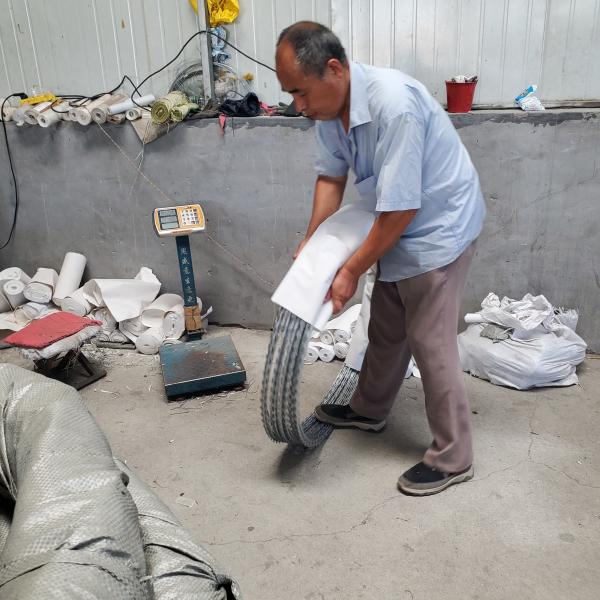

Packing into Double-layer braided wrap We have a lot of stock and
can ship quickly
|
