| Brand Name: | HOOHA |
| Model Number: | HH-E-80 |
| Certification: | CE/ISO/CCC |
| Place of Origin: | Guangdong |
| MOQ: | 1 set |
| Price: | US＄43,500 ~ 46,500/1set |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3set/1 month |
| Delivery Time: | 30 Working Days |
| Packaging Details: | PE film, wood frame, wooden box as per negotiation |
| Condition: | New |
| Color: | Customized |
| Voltage: | Apply to local indusrty voltage |
| Cable Insulation: | PVC, PE |
| Speed: | 300 M/Min |
| Warranty: | 12 Months |
| Driven Type: | Electric power |
| Screw: | Single-Screw |
| HS Code: | 8479400000 |
| Measurment: | 26m*3.5m*3.5m |
| Workers need: | 3 workers |

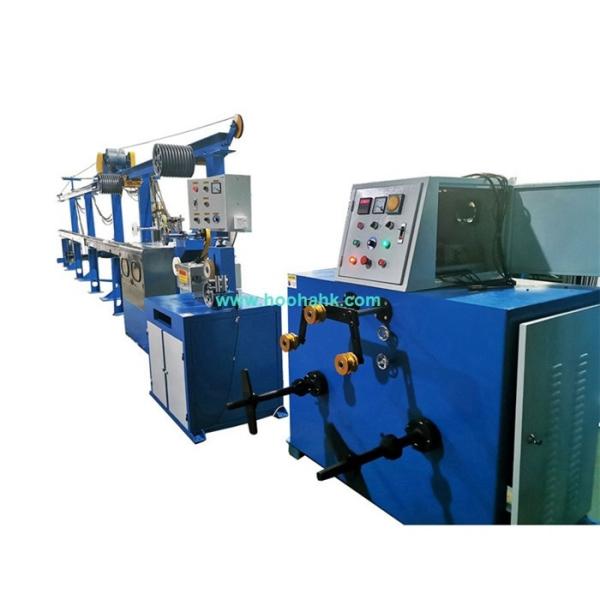

HH-E-80 Extrusion Machine for Wire and Cable PE PVC Insulation and Sheathing
This production line is mainly used for extruding PE PVC insulation or sheathing for electrical wire, power cable and communication cable etc with section area 1-10 square mm.
♦Precise extrusion process control, the error of extrusion outer diameter can be controlled within ±0.01mm
♦Optional removable horizontal extruder accessorial machine or other forms of accessorial machine to meet the diversified technical requirements of single injection, double injection and nylon co-extrusion.
♦Easy operation, start-up business friendly
♦Life-long maintainance with timely service and low cost
| NO. | Description | Quantity | Picture |
| 1 | 400-630 dual-head magnetic powder pay-off machine | 1 set | |
| 2 | 5-wheel Straightening device | 1 set | |
| 3 | 80 Host extruder | 1 set | |
| 4 | Electrical control box | 1 set | |
| 5 | 1.5m movable water tank | 1 set | |
| 6 | 12m fixed water tank | 1 set | |
| 7 | 12m wire accumulator | 1 set | |
| 8 | 610mm double wheel tractor | 1 set | |
| 9 | Diameter detector | 1 set | |
| 10 | High speed printing machine | 1 set | |
| 11 | 15kv spark tester | 1 set | |
| 12 | 400-630 Double-head take-up machine | 1 set | |
| 13 | Spare parts and tools | 1 set | |
| 14 | Diagram, operation and maintenance manual | 1 set |
| No. | Items | Features |
| 1 | Inlet Wire Diameter | 1～15mm |
| 2 | Finished Wire Diameter | 2～20 mm |
| 3 | Cross Sectional Area | 1～10 square mm |
| 4 | Extrusion Speed | Max 300 m/min |
| 5 | Extrusion Capacity | 200 kg/h |
| 6 | Installed Capacity | 65 kva |
| 7 | Voltage | 380KV, can be customized |
| 8 | Weight | 4500 kg |
| 9 | Measurement (L*W*H) | 26*3.5*3.5 m |
| 10 | Workers recommendation | 3 workers |
Our engineer team has over 5-year experience working overseas for customer on-site service. Therefor, we can provide you widely range of support, such as overseas on-site installation, talent training, long-term technology updating services,etc.
|
