| Categories | Oil Suction And Discharge Hose |
|---|---|
| Brand Name: | zebung |
| Model Number: | zb-osd-20117-1 |
| Certification: | iso 9001 |
| Place of Origin: | China |
| MOQ: | 300m |
| Price: | USD1.1-23.2/M |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000M/DAY |
| Delivery Time: | WITHIN 15 DAYS WITH |
| Structure: | textile cord and helix steel wire |
| Electricity: | continuous or discontinuous |
| Working pressure: | 40bar or customized |
| Unit length: | 40m-60m |
| Rubber: | oil resistance layer |

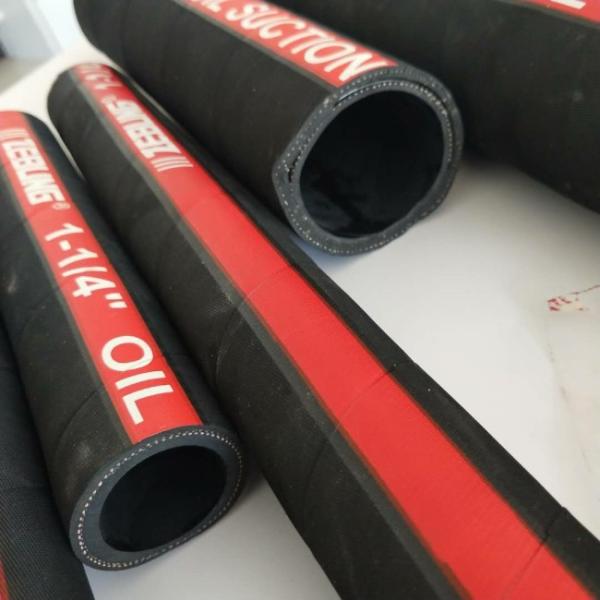

Tank Truck Oil Handling Hose With Aromatic Content Up To 50%
300psi Heavy Duty Fuel Oil Petroleum Discharge Hose With High Tensile TEXTILE Cord
AND HELIX STEEL WIRE AND COPPER WIRE
Construction:
Ø Tube: Black smooth NBR compound synthetic rubber
Ø Reinforcement: High tensile textile cord
Ø Cover: Black/red/green, wrapped surface or corrugated,weather and
ozone. resistant,synthetic rubber.
Temperature:-40℃ - +80℃
Reference standard:HG/T2540-93
Safety factor: 3:1
Character: Anti-static electricity , with copper wire
Application:
To deliver petroleum paraffin and diesel fuel,the content of
aromatic hydrocarbons 50%.
Parameter table
| I.D. | O.D. | W.P. | B.P. | B.R. | Weight | Length | ||||
| mm | inch | mm | psi | bar | psi | bar | mm | kg/m | ft | m |
| 6 | 1/4" | 14 | 300 | 20 | 900 | 60 | 60 | 0.18 | 328 | 100 |
| 8 | 5/16" | 16 | 300 | 20 | 900 | 60 | 80 | 0.21 | 328 | 100 |
| 10 | 3/8" | 18 | 300 | 20 | 900 | 60 | 100 | 0.25 | 328 | 100 |
| 13 | 1/2" | 22 | 300 | 20 | 900 | 60 | 130 | 0.36 | 328 | 100 |
| 16 | 5/8" | 26 | 300 | 20 | 900 | 60 | 160 | 0.48 | 328 | 100 |
| 19 | 3/4" | 29 | 300 | 20 | 900 | 60 | 190 | 0.55 | 328 | 100 |
| 25 | 1" | 36 | 300 | 20 | 900 | 60 | 250 | 0.78 | 328 | 100 |
| 32 | 1-1/4" | 44 | 300 | 20 | 900 | 60 | 250 | 1.06 | 200 | 61 |
| 38 | 1-1/2" | 52 | 300 | 20 | 900 | 60 | 300 | 1.41 | 200 | 61 |
| 51 | 2" | 65 | 300 | 20 | 900 | 60 | 400 | 1.82 | 200 | 61 |
| 64 | 2-1/2" | 78 | 300 | 20 | 900 | 60 | 500 | 2.3 | 200 | 61 |
| 76 | 3" | 90 | 300 | 20 | 900 | 60 | 600 | 2.68 | 200 | 61 |
| 102 | 4" | 119 | 300 | 20 | 900 | 60 | 800 | 4.21 | 200 | 61 |

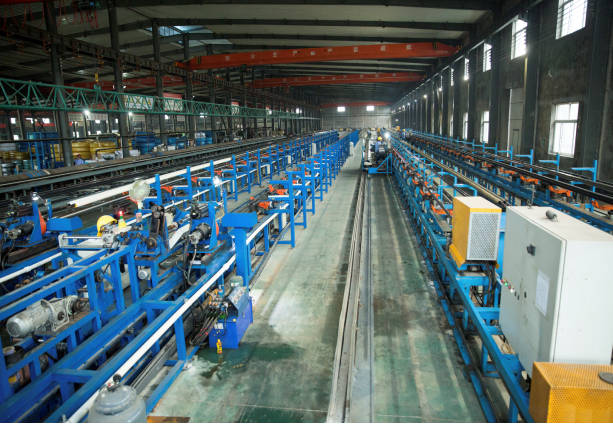

Our factory

Many modern production lines have been greatly improved,can meet the OEM needs of customers.
|
