| Categories | Drone Signal Jammer |
|---|---|
| Brand Name: | GREETWIN |
| Model Number: | GW-UAV80 |
| Certification: | SGS, ISO9001 |
| Place of Origin: | China |
| MOQ: | 1PC |
| Price: | $2173.5/PC |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 |
| Delivery Time: | 7 Business days |
| Packaging Details: | 700X350X80mm |
| Product name: | 2KM Hand-held portable signal Drone/UAV jammer of 2.4G, 5.8G and GPS Jammer（GW-UAV80） |
| Frequency: | 2.4G, 5.8G and GPS |
| Output Power: | 240W |
| Jamming Radius: | 1000-1500m |
| Net Weight: | 4.3kg |

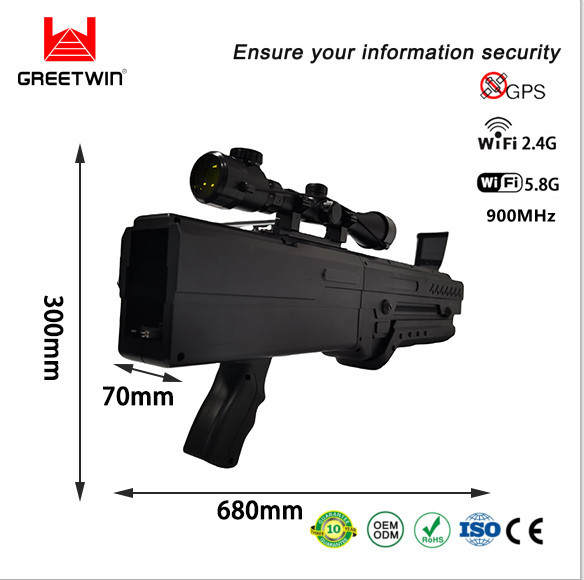

| Product Size: | 680X300X70mm |
| Quality Warranty: | 12 Months |
| Panel Antenna: | 10dBi Gain |
| Power supply mode: | 24V, 5000mAh; |
| Working Time: | 30 minutes |
Portable Drone Jammer 900MHz GPS WiFi 2.4G 5.8G UAV Jammer
Drone Jammer Specification:
| Channel | Working frequency | Output power(±1dBm) | |
| CH1 | 2.4G | 2400-2485MHz | 43 dBm |
| CH2 | GPSL1, Glonass, BDS | 1575.4±2.5MHZ(1.5G-GPS) 1602±5MHZ(1.5G-GLONASS) 1561±2.5MHZ(BDS) | 43 dBm |
| CH3 | 5.8G | 5725-5850MHz | 43 dBm |
| CH4 | 900MHz | 900-930MHz | 43 dBm |
| Power supply mode | Out battery: 24V, 5000mAh; Or External battery | ||
Battery working time | 30 minutes | ||
| Working temperature | -20℃ to +55℃ | ||
| Power consumption | 240W | ||
| Weight | 4.3KG , Packing Weight:11KG | ||
| Size | 680X300X70mm | ||
| Panel Antenna | 10dBi Gain | ||
-----Drone Jammer Instructions-----
1. Check whether the accessories are complete when you open the box and take out the device.
2. Make sure the device is fully charged on the first use, red light charging, green light full.
3. Easily using: face to UAV and press the switch.
Press 2.4G/5.8G switcher, aiming at stopping peeping, driving away.
Press GPS switcher, aiming at forcing to land.
-----Drone Jammer Packing list-----
| Name | Quantity | Remarks |
| Jammer | 1 | |
| DC24V Charger | 1 | AC220V-240V Input |
| Spare battery | Optional | |
| Instruction / Certificate | 1 |
The device has been tested for many times that it can block the Drone/UAV. That means the communication and navigation between the UAV and the controller can be cut off at a long distance.
After that, the Drone/UAV can be effectively driven away or forced to land.
Drone Jammer Features
1. With imported chips, using ultra-high speed sweeping technology
to generate multiple bandwidth signals.
2. Wideband ultra-high gain integrated antenna and built-in battery
design, easy to carry and operate.
3.With international technology of secondary oxidation and wear resistance, aluminium shell helps for intelligent temperature controlling and cooling.
4.Effective jamming distance is 1000-1500 meters, depending on the distance of more than 100 meters between remote control and UAV.
5.There is a power switch in the visible part of the body, including a power indicator, which can be operated directly by one hand.
6.Independent design of control switch, aiming at stopping peeping, driving away and forcing to land.
Product Show
RFQ:
Is there a difference in distance between indoor and outdoor use of UAV jammers?
Yes, in general, outdoor signals use outdoor, so indoor interference effect is poor.
|
