| Categories | Elbow Forming Machine |
|---|---|
| Brand Name: | HEI YAN |
| Model Number: | HYW |
| Certification: | CE/ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 2 sets per month |
| Delivery Time: | 60 working days |
| Packaging Details: | wooden packing or according to the customer's requests |
| Product Name: | Induction Heating Hot Seamless And Erw Elbow Forming Machine |
| Production Range: | 8-1420mm |
| Process Thicness: | 3-100mm |
| Bending Radius: | 1-3D |
| Heating Method: | KGPS |
| Input Voltage: | 380V |
| High Light: | elbow making machine, elbow hot forming machine |
| Heating System: | Induction Heating |
| Max. Bending Angle: | 90 degrees |
| Control System: | PLC |
| Heating Mode: | Intermediate frequency induction heating |
| Pipe Diameter Range: | 1/2 inch - 2 inch |
| Weight: | 200kg |
| Machine Type: | hot induction elbow machine |
| Voltage: | 220V/380V |
| Angle: | 22.5°、45°、90°、135° |
| Operation Mode: | Semi-automatic |
| Heating Power: | 100-1000KW |
| Bending Material: | Carbon and alloy steel |
| Power: | 3kW |
| Company Info. |
| SHEAN (CANGZHOU) CORP LTD |
| View Contact Details |
| Product List |

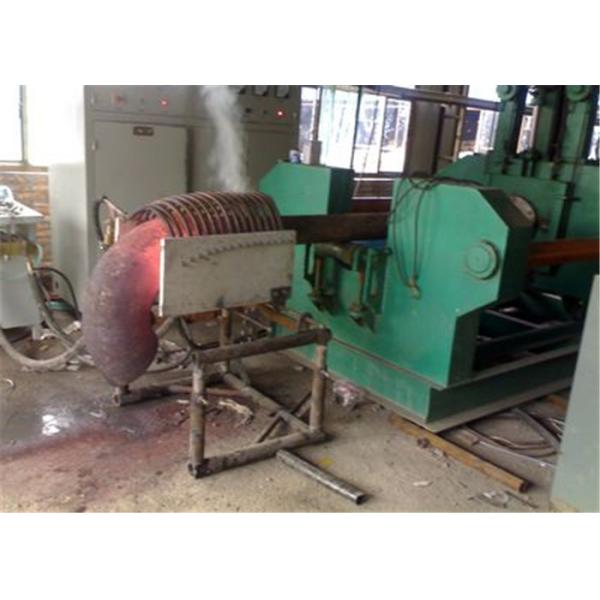

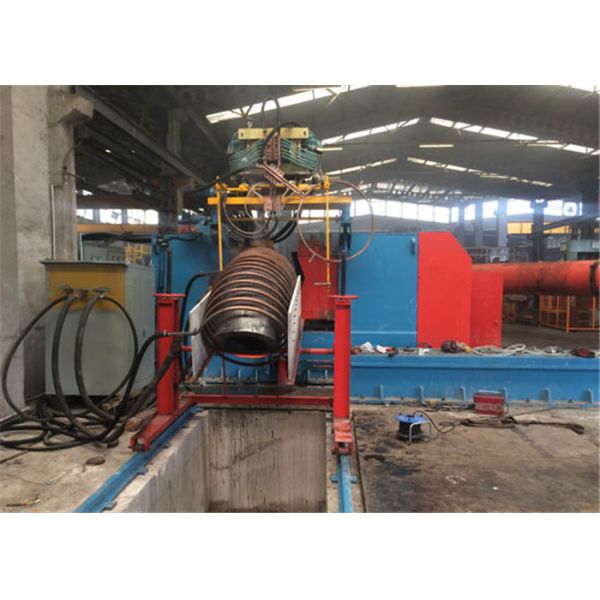

Hot Seamless 2 - 48 Inch Production Range Elbow Foming Machine
We manufacture Induction Heating Hot Seamless And Erw Elbow Forming Machine and pipe expanding machine, pipe bending machine,Hot induction heating equipment according to customer's require.
The range of the size is OD: 1 inch (25mm)- 60 inches (1420mm);
Thickness: 5mm – 120mm;
Angle: 22.5 degree 45 degree 90 degree 135 degree and the angle of user needs
| Elbow size | outer diameter Φ25mm(1″)~Φ1420mm(56″) |
| Wall thickness | 5~120mm |
| Bent diameter | ≤3 |
| Bent degree | 22.5°,45°,90°,135° etc. |
| Hydraulic cylinder | 2/4sets |
| 1. machine base/frame |
| 2. Main cylinder and supporting plate |
| 3. pushing plate |
| 4. front supporting plate |
| 5. loading table |
| 6. induction coils and adjusting device |
| 7. medium frequency power supply |
| 8. electrical control system |
| 9. auxiliary equipment: hydraulic machine/ stamping moulds/pipe end cutting machine/quality testing machine |
After buy the Induction Heating Hot Seamless And Erw Elbow Forming Machine
The following parts shall be ready by customer:
a. cooling system (tank, water pump, water shed, water pipeline low and above)
b. connection cables
c. hydraulic oil : L-HM anti- wear hydraulic oil
d. heating coils, mandrils according to production scope
e. related machine: press machine, cutting machine for ends of pipe, elbow testing machine .
The following parts shall be ready by customer:
a. cooling system (tank, water pump, water shed, water pipeline low and above)
b. connection cables
c. hydraulic oil : L-HM anti- wear hydraulic oil
d. heating coils, mandrils according to production scope
e. related machine: press machine, cutting machine for ends of pipe, elbow testing machine .
The following parts shall be ready by customer:
a. cooling system (tank, water pump, water shed, water pipeline low and above)
b. connection cables
c. hydraulic oil : L-HM anti- wear hydraulic oil
d. heating coils, mandrils according to production scope
e. related machine: press machine, cutting machine for ends of
pipe, elbow testing machine .
|
