| Categories | Stainless Steel Fin Tube |
|---|---|
| Brand Name: | DELLOK |
| Model Number: | DR |
| Certification: | CE. ISO,EN10204. 3.1 Cert. |
| Place of Origin: | China |
| MOQ: | N/A Contact us for details |
| Price: | N/A Contact us for details |
| Payment Terms: | L/C, T/T Contact us for details |
| Supply Ability: | 60000 meters month |
| Delivery Time: | within 15days |
| Packaging Details: | (1) Steel frame case sealed by plywoods with each end capped; (2)Solid fumigated wooden box with each end capped. |
| Origin: | China |
| Payments: | T/T,L/C |
| Company Type: | Importer & Exporter |
| Nearest Port: | Shanghai Port, China |
| Tube OD: | Min. 12.7mm |
| Fin Height: | Max. 16mm |
| Company Info. |
| Dellok Yonghui Radiating Pipe Manufacturing Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

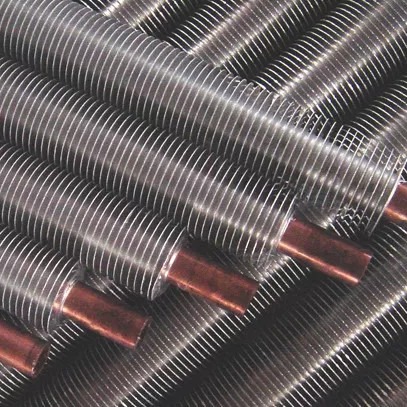

UNS 2205 Duplex Copper 8FPI Stainless Steel Seamless Tubes
A789 UNS2205 duplex stainless steel with cooper Fin Tube , OD1'' , 8FPI Grooved G Type
ASTM A789 / A789M : Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
Standards: ASTM/ASME A789/SA789, A790/SA790,A450,A530
Material: UNS S31803(Cr22Ni5Mo3/1.4462)/2205,UNS S32750(1.4410),UNS S31500(Cr18NiMo3Si2),
UNS32760(1.4501)
Introduction:
The aluminum fin strip is tension wound and placed into a groove cut into the tube. And all the goods are Zinc or Aluminum metalized applied by an electro spray arc system coating, and put into each package for continental transportation as well. When the Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of G-Fin Embedded Finned Tube it will suits the delivery condition. Besides we provided Tube support box, clamp or spacer box (Materials: Aluminum, Zinc and Stainless Steel).
It has various uses in common application fields area, Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants), High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids), The petroleum, chemical and petrochemical industries, The food processing and refrigeration industries, Natural gas treatment;
G Fin Fluted Depth:
Appr. 0.4mm.
Acceptance criteria:
API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions.
Competitive Advantage:
The Grooved G type Finning Machines are designed and assembled by ourselves and we can offer you finning machine and all accessories etc...
The contact of manufacturing Grooved fin tubes is designed for a high wall temperature of up to 350°C.
Product Details | |
Tube details: | Tube OD: 16mm Min~50.8mm max. |
Tube Length: 18,000mm max. | |
Fin Height: 16.5 mm max. | |
Fin Thickness: generally 0.4mm ~0.6mm | |
Fin Pitch: 2.1 mm (12FPI) min. | |
Production Capacity: | Daily capacity up to 5000 meters; |
Specifications:
Grooved G type Finned Tubes are combined with two different materials.
Items | General Materials | Popular ASTM Materials |
Core Tube Material | carbon steel, ow-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys. | 1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B 2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti, A789 S31803/S2205 etc... 3. Copper:UNS12200/UNS14200/UNS70600, CuNi70/30,CuNi 90/10 |
Fins Material | 1. Aluminum 2. Copper. 3. Steel | 1. Aluminum(Alu.1100/1060/1050) 2. Copper. 3. Steel |
All dimensions are in Inches and specification upon your requests. | |||
Tube OD | Fin Height | Fin Thickness | Fins per Pitch(Density) |
5/8 | 3/8,1/2 | .015/.016/ .020 | 6, 7, 8, 9, 10, 11, 12 |
3/4 | 5/8,1/2 | .015/.016/ .020 | 6, 7, 8, 9, 10, 11, 12 |
1 | 5/8,1/2 | .015/.016/ .020 | 6, 7, 8, 9, 10, 11, 12 |
1 1/4 | 5/8,1/2 | .015/.016/ .020 | 6, 7, 8, 9, 10, 11, 12 |
1 1/2 | 5/8,1/2 | .015/.016/ .020 | 6, 7, 8, 9, 10, 11, 12 |
Our Service:
1. Inquiry-Professional quotation, or send inquiry item more
details, we start contact more details
2. Confirm the price, lead time, payment term etc
3. Our sales send the Proforma Invoice with our seal, or you order
online to us
4. Customer make the payment for deposit and send us Bank receipt
5. Initial Production Stage-Inform the clients that we have got the
payment, and will make the samples according to your request, send
you photos or samples to get your approval. After approval, we
inform that we will arrange the production & inform the estimated
time
6. Middle Production-send photos to show the production line which
you can see you products. Confirm the estimated delivery time
again.
7. End Production-Mass production products photos and samples will
send to you for approval. You can also arrange the third party
inspection
8. Clients make payment for balance and ship goods, inform the
tracking number and check the status for clients
9. Order can be say "finish" when you receive the goods and satisfy
with them
10. Feedback to our about Quality, Service, Market Feedback &
Suggestion. And we can do better
|
