| Categories | Compact Flour Mill |
|---|---|
| Brand Name: | CTGRAIN |
| Model Number: | CTWM |
| Certification: | CE |
| Place of Origin: | Henan Zhengzhou |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 Sets per Month |
| Delivery Time: | 90 working days |
| Packaging Details: | Nude packing in Full Container Loading or Fumigation wooden case for LCL. |
| Name: | 60 TPD industrial flour mill machine Compact flour mill |
| Raw material: | Wheat Maize Corn Rice |
| Application: | food, foodstuffs, chemical industry, and other industries |
| Type: | Grain Processing Equipment |
| Capacity: | 40-60tpd |
| Final Products: | Flour |
| Roller Mill Model: | pneumatic |
| Sifter Model: | plansifter |
| Total Power(kw): | 220 |
60 TPD industrial flour mill machine Compact flour mill
Compact flour mill Introduction:

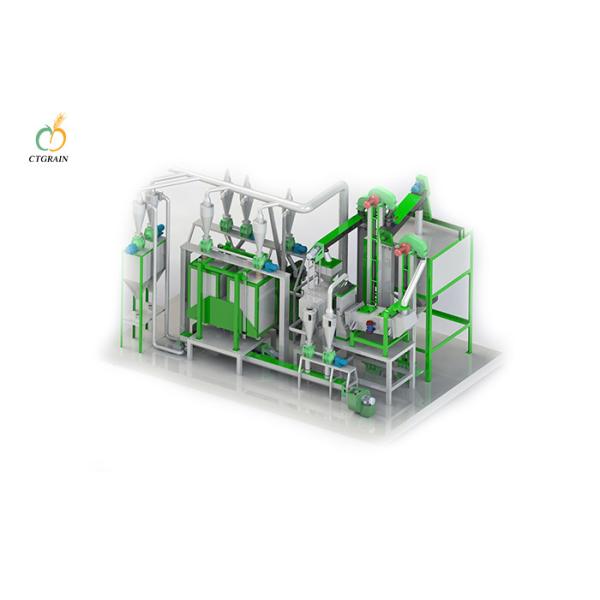

The compact flour mill adopts a steel frame structure for installation. The general structure has three layers. The flour mill is located at the bottom layer, the screen is installed on the first layer, and the shaken and pneumatic conveying pipeline are installed on the second layer.
The compact flour mill adopts closed pipe ventilation and dust removal system, and the material grinded by the mill is transported by air through the pipeline. The height of the whole three-layer structure is relatively low, so it can be installed in the warehouse compactly to reduce investment cost. The whole flour mill can be equipped with PLC control system, which is convenient to realize the centralized control of automation and the operation will be more convenient. The whole flour mill can be customized and designed based on customers' needs, and the milling process can also be adjusted accordingly.
Compact flour mill features:
1. This is a complicated thorough flow sheet that can remove most of the coarse offal, middle size offal, and fine offal in the wheat. The cleaning section is not only suitable for wheat imported with lower moisture and but also suitable for dirty wheat from local customers.
2. The whole design will insure less bran mixed into the bran and the flour yield is maximized. Because of the well-designed pneumatic lifting system, the whole mill material is transferred by a High-pressure fan. The milling room will be clean and sanitary for aspiration adoption.
3. The packing machine is with sealed type bag-clamping mechanism, which can prevent material from leaking out.The packing specification includes 1-5kg,2.5-10kg,20-25kg,30-50kg.The clients can choose different packing specifications according to requirements.
Compact flour mill parameter:
| Compact flour mill Model | CTWM-60 |
| Capacith(t/24h) | 60 |
| Roller Mill Model | manual |
| Sifter Model | twin sifter |
| Cleaning Flow Sheet | 3-sifting,2-scrouring,2-destoning,1-washing |
| Mill Flow Sheet | 4-breaking,5-reducing,1T |
| Total Power(kw) | 220 |
| Space LxWxH(m) | 35x8x11 |
|
