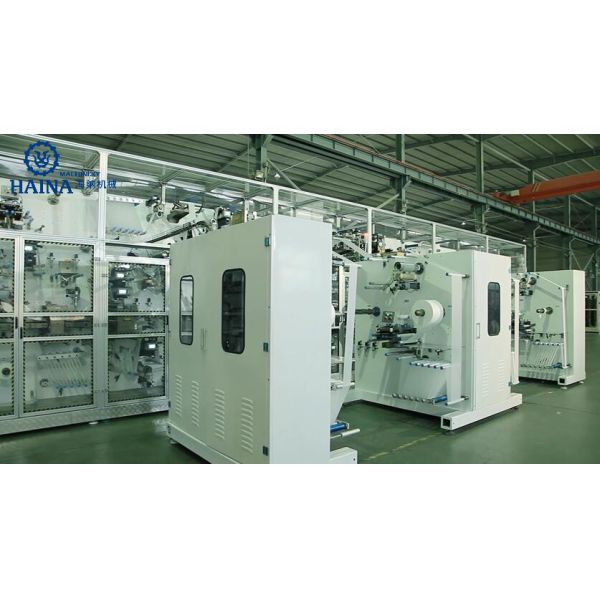

320KW 500pcs/Min Elastic Ear T Shape Diaper Manufacturing Machine

Full Automatic Elastic Ear T Shape Diaper Manufacturing Machine

Technical Parameters

1: Model: JWC-LLK600-SV
2: Power Source: Three Phase: 380V 50Hz
3: Installation Power: 320KW(excluding glue applicators, air compressor, the final power shall be confirmed after completion)
4: Product Sizes Medium and large sizes (only changing crotch size instead of changing waist size)
5: Production Speed:450 PCS/min (Medium)
6: Qualification Rate≥ 97%(excluding glue applicators, wastes caused by splicing raw materials)
7: Overall Size(L× W× H): 38m× 12m× 4.5m(for reference)
8: Machine Process Direction (raw material TO products)right to left(facing machine)

Product Structure

1: Core layer structure: Big cotton core adopts alien continuous stripping to shape and small cotton core adopts direct buckle the forming. Big cotton core and small cotton core are pressed solid after wrapping by tissues.
2. Acquisition layer slitting adopts scraping. (Scraping length is controlled by servo motors. )
3. Top sheets are composed of side nonwovens with elastic and middle materials, compressed by embossing units.
4. Nonwoven sectioning units adopts motor sectioning mode.
5. Tightness of elastic is adjusted by double roller linear velocity controlled by frequency conversion.
6. Roll material and tube material are compatible for elastic feeding.
7. Cotton core cutting and final product cutting adopt side blade scraping.
8. Color calibration of former icon straight cut adding unit.
9. Waist combination adopts heat seal.
10. Detailed shape, structure, sizes of products is confirmed according to the finalized products by both parties.

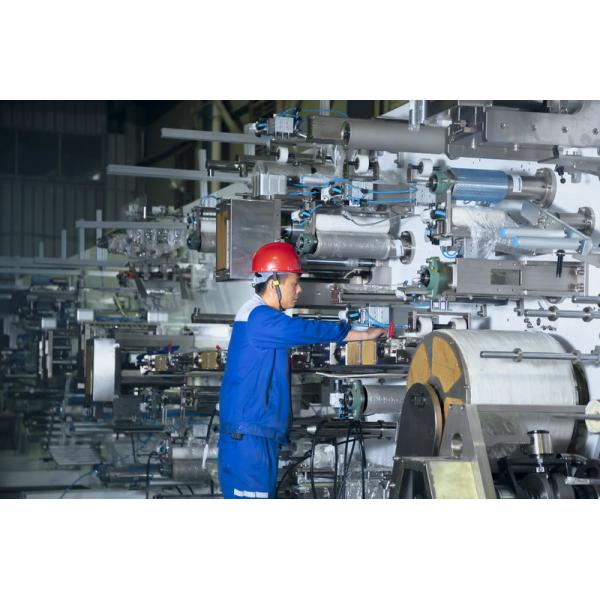

Our workshop

We are Jinjiang Haina Machinery Co.,Ltd (Haina) which is a professional manufacturer of production lines of disposable hygiene products. The company was founded through one group of technicians and designers with a twenty experience in the production of machines for baby diapers, incontinence adult diapers, lady sanitary napkins and panty shields. We have achieved many goals thanks to our skill in this field, combined with a continuous desire for innovation and technological development, to offer you a practical solution to your needs, customizing your products to fit your demands.

From pre-sales advice, through production and supply of lines, to after-sales customer care, we can satisfy the most demanding application requirements. At Haina, we form long-term strategic partnerships with you, meaning we continually work to meet your ever-changing requirements and help your business growth.

At present, our production lines are used by domestic high end users, and others exported to South Asia, Southeast Asia, Middle East, South America, Africa and so on. Till now, total 120 sets of our machines are satisfied using by our local and overseas customers. Now we have won excellent reputation in this industry by superb professional technology and extremely high level of after-sales service.


Now we are ready to work with you!
