Home > Paper Product Making Machinery >

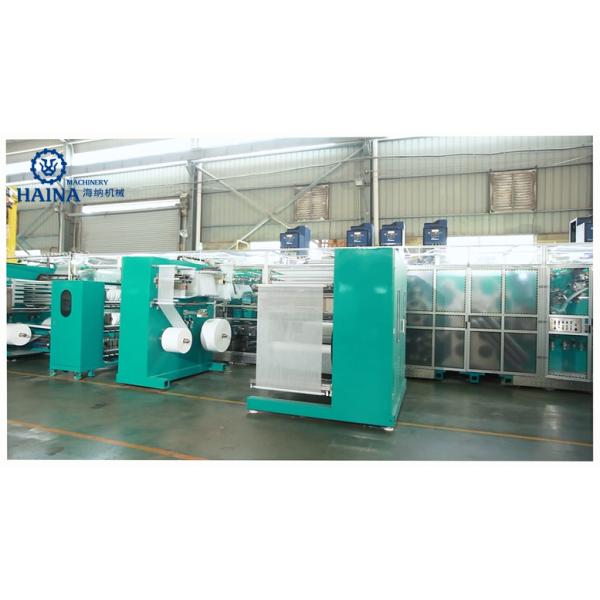

400KW 300PPM O Shape Lady Menstrual Pad Making Machine

Categories Lady Menstrual Pad Making Machine
Brand Name: HAINA
Model Number: HNJX-CLK350
Certification: ISO,CE,
Place of Origin: CHINA
MOQ: 1 set
Price: negoiatbale
Payment Terms: T/T
Supply Ability: 6 Sets per Month
Delivery Time: 180 working days
Packaging Details: Anti-rusty Treated and Wrapped Film Packing
Machine Type: Easy Maintenance O Shape Lady Menstrual Pad Making Machine price
Final Products: Lady Menstrual Pants
Product Size: S,M,XL,L(base on customer request)
Processing Type: Pulp Molding Machine / Ultra Thin Core Diaper Machine
Speed: 250-300 Pcs/min
PLC: Mitsubishi/Simens optional
Hotmelt Glue Machine: Nordson/Wahrheits optional
Power Supply: 3 Phase 380V, 50HZ (base on customer request)
Warranty: 1 year
Condition: New
After-sales Service: Customer Site installation, Technical Support, Components Supply
Weight: Around 95 T
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

400KW 300PPM O Shape Lady Menstrual Pad Making Machine

Easy Maintenance O Shape Lady Menstrual Pad Making Machine price


Main technical parameters:


MachineEasy Maintenance O Shape Lady Menstrual Pad Making Machine price
ModelHNJX-CLK350
Products

Lady Menstrual Pants Diaper

Design speed350 pcs/min
Production speed250-300 pcs/min(M Size)
Defective rate≤3%
Efficiency≥85%
Power Supply3 Phase 380VAC, 50HZ (base on customer local power)
Total WeightAround 95T
Power~400KW
Required Air Compressor2m³/min,0.6-0.8Mpa
DimensionL~45m,W~10m,H~4m
Machine directionFrom right to left (According to the customer requirements)

Color

Car white (As required)

See Machine Running Video on Youtube
https://youtu.be/8ALyiiWH2XM
Our Main Supplier

Configuration and options:

►Drive System: The whole machine adopt servo motor driven, size change by interface.

►Inspection system: Auto raw material joint rejecting and alarm;

►Unwind and splice: Use Dual pneumatic shaft, independent servo unwinds auto joint material. Splice speed can be setup by interface.

►Human-machine interface:

  1. Interface install at machine middle position, English and Chinese language, and LED screen display.
  2. Raw material lacking, jointer, splice, fans, vacuum pump jump-off, all display on the screen.
  3. Rejection position and quantity can be set up.

4) Production speed (pcs/min), shift output, rejecting quantity, total capacity, is interface display.

►Safety devices:

With safety frame and door.

Frontal and ear side E-stop and safety line.

Speed up and down, alarm device button, easy operation.

Back drive upper layer add loft.

►Glue spray and coating control

  1. Reserved hot melt application position, spray and coating head keeps 90 degree towards materials, hoses fix-up at rear side, perforated vertical through face board.
  2. Working with hot melt units, can automatic spray and stop, manual control enabled.
  3. Supply 0-10V CD glue auto tracking signal. Angle control inside, controlled by separate servo motor
  4. Lamp installed at hot melt positions.


Please feel free to contact us for more info !
