| Brand Name: | MX |
| Model Number: | MX |
| Certification: | CE / ROHS |
| Place of Origin: | China |
| MOQ: | 500pcs |
| Price: | USD + 8.2 / 8.6 + Piece |
| Payment Terms: | T / T |
| Supply Ability: | 100000PCS / MONTH |
| Delivery Time: | 12 - 15 DAYS |
| Packaging Details: | carton box |
| Size: | 60mm X 60mm X 30mm |
| Bearing: | ball bearing |
| Speed: | 2400rpm |
| Motor type: | AC brushless type |
| Certifications: | CE ROHS |
| Material: | Platics frame and impeller |
| Weight: | 150g |
| Noise: | 27db |
Aluminum Frame Equipment Cooling Fan
Product descirption
| Product name | Equipment Cooling Fan |
| Power | 9.6-11W |
| Current | 0.03-0.05A |
| Air flow | 7CFM |
| Application | AC power Equipmet |
| Life | 50000 hours |

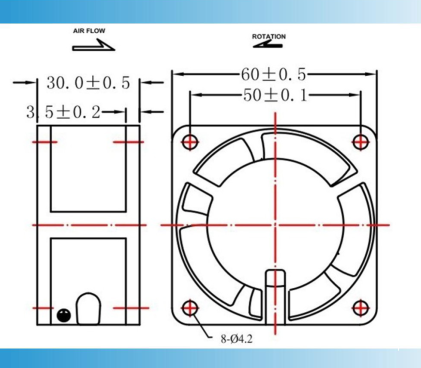

Product Drawing

| Model | Bearing Type | Rated Voltage | Freq. | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | |
| Part No. | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | dB-A | g |
| MX6030ABH11 | B | 110/120 | 50/60 | 0.042/0.04 | 6 | 2400/3000 | 7.0/10 | 0.23/0.29 | 0.07/0.12 | 27/29 | 150 |
| MX6030ABH22 | B | 220/240 | 50/60 | 0.04/0.03 | 7 | 2400/3000 | 7.0/10 | 0.23/0.29 | 0.07/0.12 | 27/29 | 150 |
Company profile
ShenZhen Topfan China is a professional manufaturer with 11 years experience Which produces AC fan, DC fan,
brushless fan, blower fan and EC fan. Our main markets are south Asia,south America, Europe.
“Concentrate on the sevice of customer” is our purpose.

Packing
Paperboard---------Cartons-------- Card board-----Containers

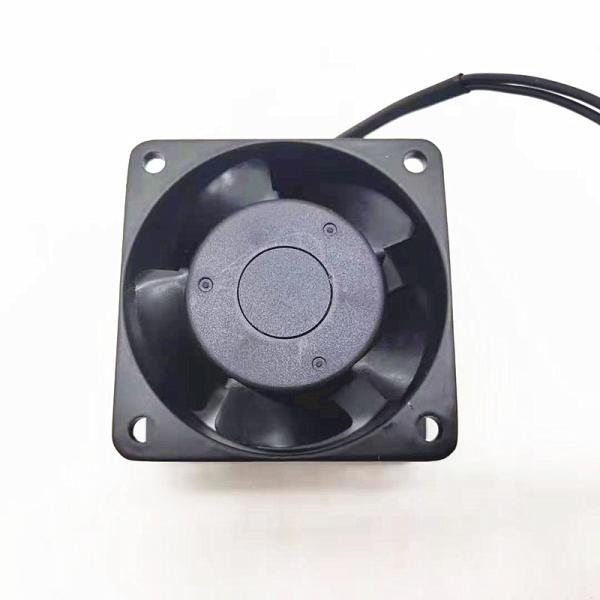

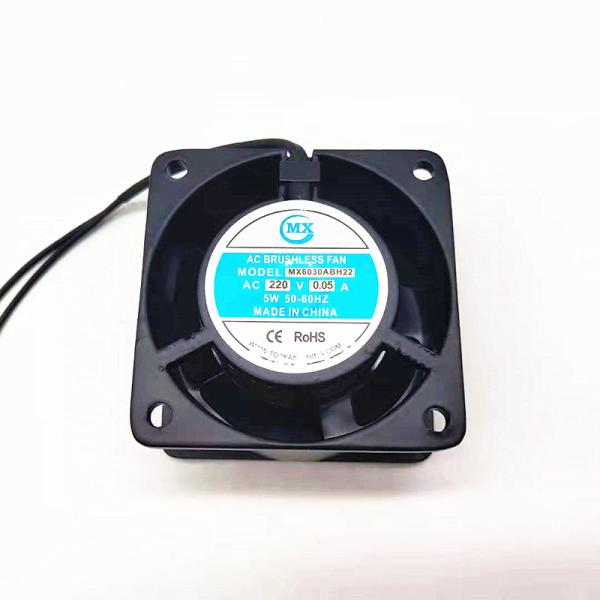

Product detail


|
