| Categories | Aluminum Alloy Strip |
|---|---|
| Brand Name: | YOWO |
| Model Number: | 1060, 1050 |
| Certification: | CE, SGS |
| Place of Origin: | CHINA |
| MOQ: | 7 MT |
| Price: | USD 2000-2900 per TON |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 tons per month |
| Delivery Time: | 15-30 days after receiving deposit or Original LC |
| Packaging Details: | Standard exporting package |
| Type: | aluminum strips |
| Alloy: | 1060, 1050 |
| Width: | 20-1600mm |
| Hardness: | O |
| Grade: | 1000 series |
| Brand: | YOWO |
| Sample: | can be provided for free |
| Temper: | O - H112 |
| Company Info. |
| Henan Yowo Industrial Co., Ltd |
| View Contact Details |
| Product List |

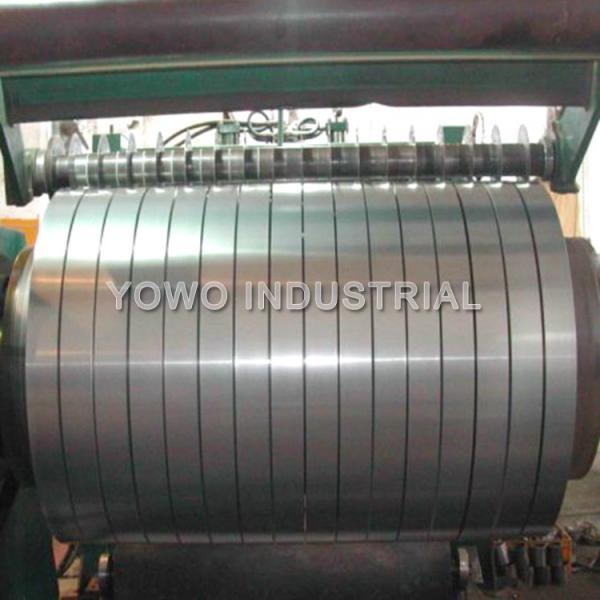

| Product | Aluminum Strip |
| Property | Anti-Corrosion, Heat Resistant |
| Surface | Mill finish |
| Production Process | Cold Rolled, Hot Rolled |
| Internal Diameter | 300mm, 405mm, 505mm or as per request |
| Temper | O, H14, H24, H32, H112 etc; T4, T651 etc.. |
| Thickness | 0.2mm - 60mm |
| Width | 20mm - 1600mm |
| Coil Weight | 2-4 tons |
| Package | Export wooden pallets, craft paper, anti-blushing agent. |
| Quality of Material | Totally free from defects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
| Mark | Customized service is available. |
Tolerance:
| Aluminum Alloy | 1070/1060/1050 O | |||
| Thickness(mm) | 0.2-0.3 | 0.4-0.8 | 1.0-2.0 | 2.0-3.0 |
| Tolerance(mm) | ±0.015 | ±0.02 | ±0.03 | ±0.06 |
| Width(mm) | 20-400 | 100-600 | 200-700 | 500-1600 |
| Width Tolerance(mm) | ±0.2 | ±0.3 | ±0.3 | ±1 |
Why Choose Aluminum for transformer?
1. Economic, means less cost for better achievements.
2. Conductivity of Copper is good, but Aluminum's is as double as copper at the same price.
3. Aluminum is more flexible that means it easier to wind and place in winding process.
4. Aluminum is lighter, easy to place.
In North America ,aluminum is the moost popular choice of winding material for low-voltage, dry-type transformers.
| Mechanical Property | ||||||||
| ALUMINUM | Grade | Normal | Temper | Tensile Strength | Yield Strength | Elongation% | Brinell Hardness | |
| ALLOY | Temper | N/mm² | N/mm² | Plate | Bar | HB | ||
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
| Al-Cu | 2019 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| (2XXX) | 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 |
| Al-Mn | 3003 | O | 110 | 40 | 30 | 37 | 28 | |
| (3XXX) | 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 |
| Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg | 5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| (5XXX) | 5083 | O,H112,H | O | 290 | 145 | - | 20 | - |
| Al-Mg-Si | 6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| (6XXX) | 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 |
| Al-Zn-Mg | 7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| (7XXX) | 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 |
Why choose us?
We have more than 10 years experiences of Aluminum sheet, Aluminum foil and Aluminum strip products. We fully understand our customers' needs and requirements, and strictly in accordance with international standards such as ASTM, EN_AB, JIS, GB for the production of various grades of aluminum products.
We make sure each piece of aluminum roll No Burrs, No Scratches of Round Edge to fit for transformer winding.
Any size can be customized. No matter you need large quantity or small quantity, or trial order, we'll all treat it seriously. Give us one chance to be your reliable supplier in the near future!
|
