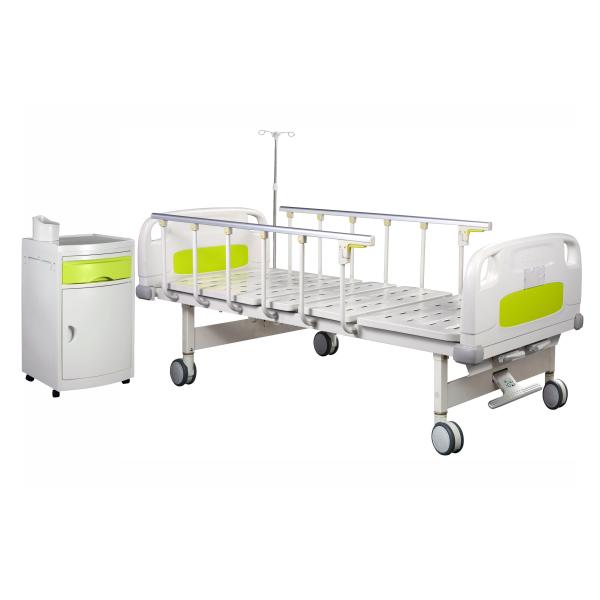

500MM Manual Crank Hospital Bed

Product Name : 500MM Manual Crank Hospital Bed

N206 Two Cranks Home Care Manual Hospital Bed With Central Brake Lock Pedal

Model: HK-N206

External Dimension: L2160*W970*H500MM

Material:

a. The base, frames and legs of this kind of hospital bed are all made of cold-rolled steel plate and tube and coated by electrostatic spray after twice phospatization.

b. The head and foot boards are made of imported ABS materials named Chimei from Taiwan.

c. It is fully tested sturdy construction capable of taking a maximum user weight of up to 250kg and it has central-controlled braking system.

Technical Data:

Components :

4 section divided cold rolled steel platform

Head&Foot board: ABS, detachable

Side rails: 2pcs, Aluminum alloy material, collapsible

Four 125mm(150mm) castors with central brake control pedal

I.V. drip pole and drainage hooks available

With shoes shelf

Plastic patient name card at the footboard

Key Features :

Adjustable Crank Hospital Bed has the function back section up/down and knee section up/down.

It is fully tested sturdy contruction capable of supporting a maximum user weight of up to 250kg.

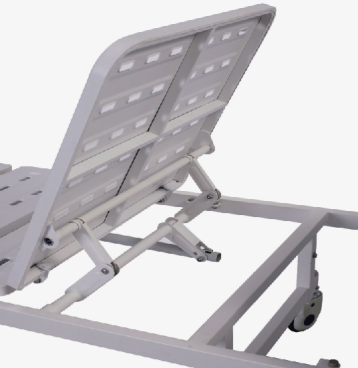

Back section of bed board adopts “double support” special structure, it can make bed pressure equally spread around in order to avoid any unequally pressure and it’s very easyto operate. Furthermore, it greatly extend dynamical system’ s use life.

Double support structure bed board, head and foot panels use the steel tube reinforce structure, steel bed frame, stainless steel robots welding and all those features contribute to lifespan of 15 years.

Adjustable Crank Hospital Bed use “double direction to the position and no-ultimate protection" ; ultra extra fine thread screw system, silent and easy to operate.

The robots welding on many parts of the bed frame, bed board, manual screw and bedside rails, high precise and strong welding, avoiding the disadvantages of hand made to ensure the whole beds structure stability and reliability.

Science and technology benefit mankind, innovation leads the future . HaoKang focus on hospital bed production for more than 18 years, HaoKang has won more than 53 national patents, passed ISO13485:2016 international quality management system certification and European Union CE certification approval. HaoKang has invested heavily in introducing advanced automatic production equipment in the world.

Ever since 2009, HaoKang has invested to build a new production base in Southern part of Guangdong Province named Nansha Guangzhou, the geographical center of Guangzhou ,HongKong and Macao . The whole area is more than 15,000 square meters, total production capacity reach to 3000 sets beds per month. Haokang launched into some big scale of equipment and machinery, such as the plastic processing equipment, hardware and molds machining equipment, automatic robot welding production line, automatic spraying painting production line and finished products assemble line to fulfil the complete set of hospital bed made by ourselves.

With its strong technological research and development strength and leading design concept in the industry, Haokang has built a 4.0 "Intelligent Manufacturing" assembly line "Haokang" will surely lead the future of the industry, provide the market with global synchronization, consistency, unparalleled "cost-effective" products .
