Construction concrete metal high ribs

Categories Rib Lath
Brand Name: STD
Model Number: STD-90
Certification: FDA ,CE,PICC,SGS,ISO
Place of Origin: China
MOQ: 500m2
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 Square Meter/Square Meters Per Month
Delivery Time: 5-8word days
Packaging Details: In quantity
material: Galvanized
color: Silver
size: customizable
Features: Building construction bridge
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Construction concrete metal high ribs

Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
DBL
Model Number:
HJE-10-01
Product name:
Rib Lath
Material:
metal sheet
Model NO.:
Customized
Surface treatment:
Galvanized
Width:
600mm
Length:
2240mm
Thickness:
0.3-0.5mm
Weight:
3.4-4.0lbs
Type:
Light
Certificate:
ISO 9001:2008
Supply Ability
Supply Ability:
500 Sheet/Sheets per Day
Packaging & Delivery
Packaging Details
50pcs/Bundle ,500pcs/Pallet or as customer request.
Port
Tianjin Xingang
Lead Time :
Quantity(Sheets) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated

Building Materials Galvanized Steel Sheet Metal Rib Lath

Product Description

Rib Lath is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength which offering excellent plaster base and reinforcement for all types of walls,ceilings,partitions and fireproofing of steel beam,and columns.

Rib lath is ideal for proving a high degree key of mechanical bonding with render or plaster.

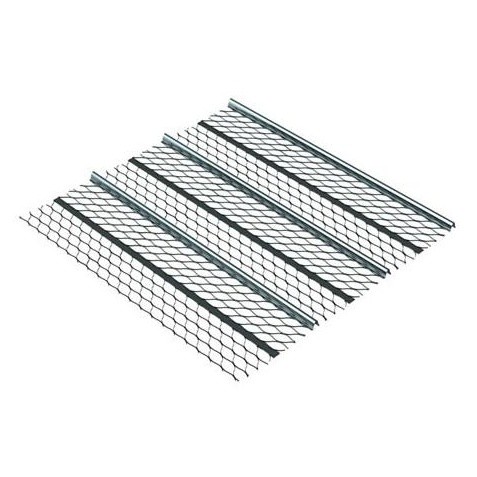

Building Materials Galvanized Steel Sheet Metal Rib LathBuilding Materials Galvanized Steel Sheet Metal Rib Lath

1. 7 Rib 8 Opening

7 Rib 8 Opening
Thickness(mm) Rib Distance(mm) Weight (KG) Width X Length(mm)
0.10 100 1.79 610 X 2440
0.35 100 2.09 610 X 2440
0.40 100 2.38 610 X 2440
0.45 100 2.68 610 X 2440
0.5 100 2.98 610 X 2440

2. 5 Rib 8 Opening

5 Rib 8 Opening
Thickness(mm) Rib Distance(mm) Weight (KG) Width X Length(mm)
0.10 150 1.31 610 X 2440
0.35 150 1.53 610 X 2440
0.40 150 1.75 610 X 2440
0.45 150 1.96 610 X 2440
0.5 150 2.17 610 X 2440

3. 9 Rib 4 Opening

9 Rib 4 Opening
Thickness(mm) Rib Distance(mm) Weight (KG) Width X length(mm)
0.10 75 1.89 610 X 2440
0.35 75 2.28 610 X 2440
0.40 75 2.53 610 X 2440
0.45 75 2.84 610 X 2440
0.5 75 3.15 610 X 2440

Specification:

Thickness (mm) Weight (kg) Width (mm) Length (mm) Rib Height (mm) Rib Distance(mm)
0.21 1.70 450 2200 14-20 90
0.23 1.90 450 2200 14-20 90
0.10 2.48 450 2200 14-20 90
0.35 2.90 450 2200 14-20 90
0.40 3.10 450 2200 14-20 90
0.45 3.70 450 2200 14-20 90
0.50 4.10 450 2200 14-20 90

Application
