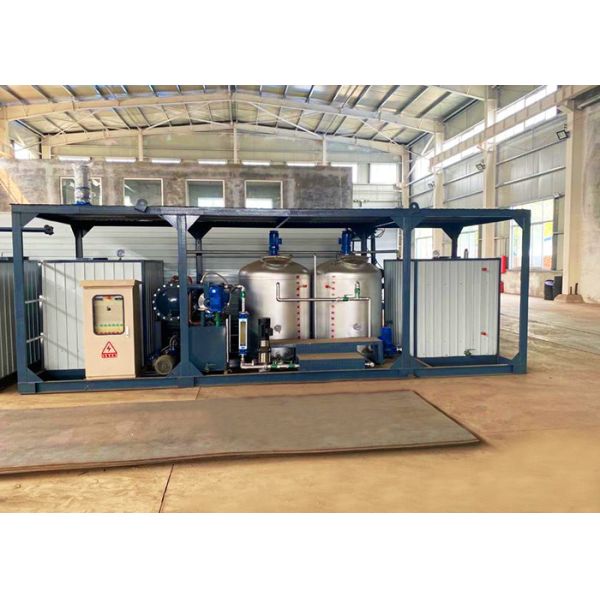

Road Construction 8 ton/H Bitumen Emulsion Plant

The bitumen emulsifying equipment developed by our company has the advantages of simple structure, convenient operation, wide range of bitumen content, stable quality, and can meet the requirements of different construction technologies. It has been widely used in highway construction and highway maintenance projects.

Performance characteristics:

• The emulsified bitumen production core component emulsifier (ie colloid mill) is developed by our company and adopts a unique stator-rotor clearance adjustment structure to maintain a very small stable gap. The specially treated stator and rotor have good wear resistance and corrosion resistance, ensuring emulsification effect and stability.

• Equipped with a high-efficiency heat exchanger, the finished emulsified bitumen is cooled to normal temperature by a heat exchanger, which improves its storage stability and provides possibilities for continuous large-scale micro-surface construction.

• Adopt PLC control to precisely control the bitumen content (oil-water ratio) of emulsified bitumen.

• The heat transfer oil heating system is convenient, efficient and efficient, and can realize automatic temperature control.

Structure composition of emulsified bitumen equipment

1. Emulsion system--It is composed of emulsion tank AB, flowmeter, emulsion pump, regulating valve, etc.

2. Emulsified bitumen System--It consists of emulsifier, sampling valve, heat exchanger, etc.

3. Heat Exchange System--It consists of heat exchanger, emulsified asphalt discharge pipeline, submersible pump (or sewage pump) and cooling water inlet and outlet pipeline.

4. Heat Conducting Oil System--The system is a closed-circuit system with automatic temperature control. Under the action of the heat conducting oil pump, the heated heat conducting oil heates the parts that need to be heated, and finally returns to the heat conducting oil pump.
