| Brand Name: | IRIS |
| Model Number: | 1000KG |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | $12000-15000USD/Set |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets /month |
| Delivery Time: | within 15 working days |
| Packaging Details: | export wooden box |
| Product name: | Small Foundry Production Billet Cast Iron Copper Wire Aluminum Ingots Aluminum Foil Induction Melting Furnace |
| Application: | Metal Melting |
| Capacity: | 1000KG |
| Raw material: | Aluminum,copper steel |
| Melting Time: | 40-60 Minutes |
| Power: | 1000KW |
| Voltage: | 3*380V |
| Rated frequency: | 700HZ |
| Heating method: | Induction Method |
| Cooling way:: | water cooling |

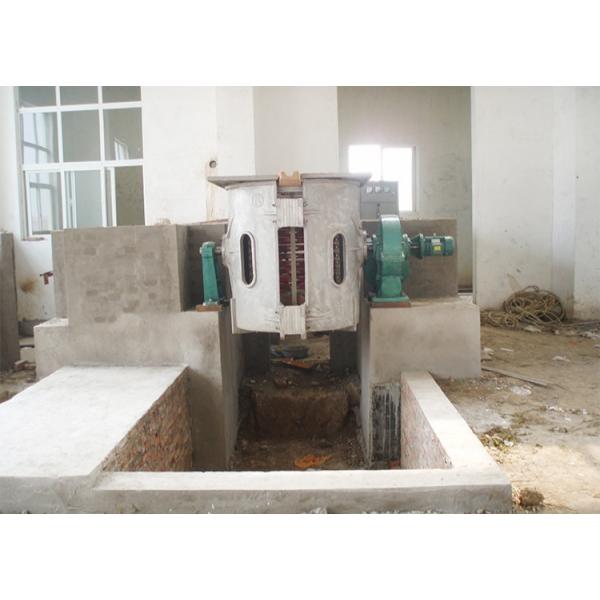

Small Foundry Production Billet Cast Iron Copper Wire Aluminum Ingots Aluminum Foil Induction Melting Furnace
Small foundry production billet cast iron copper wire aluminum
ingots aluminum foil induction melting furnace feature as follows:
1.High melting efficiency for the scrap metal such as the aluminum,
copper,iron and steel.
2. Metal composition is uniform.
3.Structure compact,strong over load ability, The smelt furnace
easy to operating process and melting safety.


The melting furnace mainly composed of power control cabinet and
melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure,
over-current, over-voltage, lack phase information
Basic Parameters | ||||||
Capacity | Power | Voltage | Cabinet size (mm) | Cabinet weight | Furnace Body weight | |
100KG | 100KW | 3*380V | 1000*800*1700 | 0.5T | 0.3T | |
250KG | 250KW | 3*380V | 1300*850*2000 | 0.8T | 0.7T | |
500KG | 400KW | 3*380V | 1300*850*2000 | 1T | 1T | |
1T | 800KW | 3*660V | 1300*850*2000 | 1.2T | 1.3T | |
1.5T | 1000KW | 3*660V | 1300*850*2000 | 1.2T | 1.8T | |
2T | 1500KW | 3*660V | 2400*1000*2000 | 1.6T | 2T | |
5T | 3000KW | 6*950V | 2400*1000*2000 | 2.5T | 4.5T | |
10T | 6000KW | 6*1250V | 3500*1000*2200 | 3T | 23T | |
15T | 10000KW | 6*1250V | 4000*1200*2200 | 3.5T | 32T | |
|
