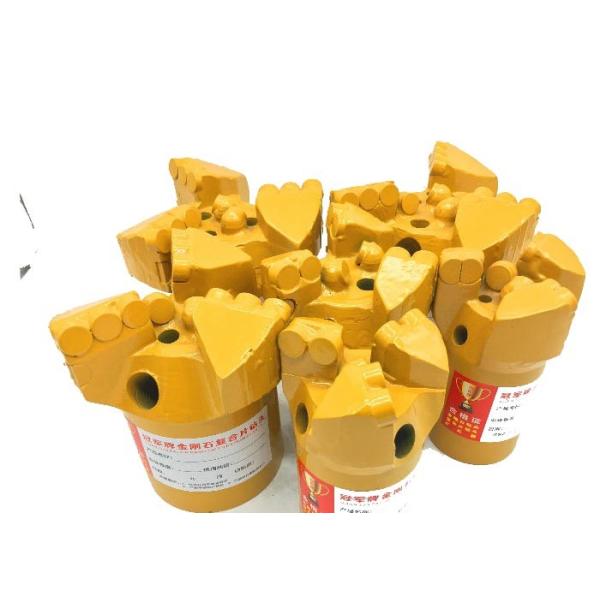

Wear Resistant Hydraulic 5'' 143mm Water Well Drill Bits

Non Core Water Well Drill Bits Wear Resistant For Hydraulic Drilling Rig

Water Well Drill Bits Description

PDC full face Bits has a very good penetration rate and long life in a wide range of rock formations. The application include in mining, civil engineering and the oil industries.
Generally, it include the Three Wings, Four Wings, Five wings or blades PDC Non-Coring Bits.

Water Well Drill Bits Main Features

1) Wear resistance and high impact toughness

2) Adopting advanced technique and mature process to manufacture..

3) Drilling speed is high in soft to medium hard rocks.

4) Have long service life.

5) Suit with hydraulic drilling rig.

Water Well Drill Bits Parameters

Drilling Diameter	Blade Count	Cutter Size	Nozzle Number	Bit Slot	Pin Size
5-5/8‘'143mm	3	1308	3	2.7''*1.5''	2-7/8‘’
5-5/8‘'143mm	5	1308	5	2.7''*1.5''	2-7/8‘’
6''152mm	4	1308	4	4''*1.5''	3-1/2‘’
6''152mm	5	1308	5	4''*1.5''	3-1/2‘’
8-1/2''216mm	4	1308	4	5‘’*2“	4-1/2‘’
8-1/2''216mm	5	1308	5	5‘’*2“	4-1/2‘’
8-1/2''216mm	6	1308	6	5‘’*2“	4-1/2‘’
9-1/2''241mm	5	1308	5	5‘’*2“	4-1/2‘’
9-1/2''241mm	6	1308	6	5‘’*2“	4-1/2‘’
12-1/4''311mm	5	1308	5	6‘’*2“	6-5/8‘’

Water Well Drill Bits Functions and features:

1. The service life of the bit is longer than that of cemented carbide and 4-5 times of that of ordinary diamond bit;
2. High drilling efficiency: the diamond outcrop is large (almost all the composite polycrystalline layers are exposed), and the bit can always keep sharp, thus greatly improving the footage speed;
3. It can drill with low pressure and low rotation speed: the bit breaks the rock by scraping and shearing, and its WOB only needs about 1 / 3 of that of the impregnated diamond bit of the same diameter;
4. Good diameter protection effect: diamond polycrystalline can be inlaid inside and outside of the drill bit of our factory, which has strong wear resistance and good diameter maintenance performance, It has been proved that the bit is suitable for drilling soft and medium hard strata (with drillability below grade 9) such as carbonate rock, limestone, Cretaceous, clay rock, siltstone, sandstone and so on. Compared with the general bit, especially in the 6-9 rock stratum, the effect is particularly remarkable;
6. Because of its high penetration rate and long service life, the number of trips and trips is less, the drilling cost is greatly reduced, and the performance price ratio is superior.

Product Tags:


*From:	Your email address is incorrect!
*To:	Jinzhou City Shitan Machinery Equipment CO. LTD.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Water Well Drill Bits
Brand Name:	ShiTan
Certification:	ISO9001
Place of Origin:	China
MOQ:	Negotiation
Price:	Negotiation
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	20000pcs/Year
Delivery Time:	Within 7-12 days
Packaging Details:	Standard export package
Model Number:	Water Well Drill Bits
Type:	Rock Drill bits
Usage:	Mining, Coal, Iron Ore, Gold Mining Drilling
Material:	PDC and steel body
Processing Type:	Forging
Application:	Geological exploration
Advantage:	Wear Resistant
Feature:	non-core bit
DC Cutter:	Flat/Dome
