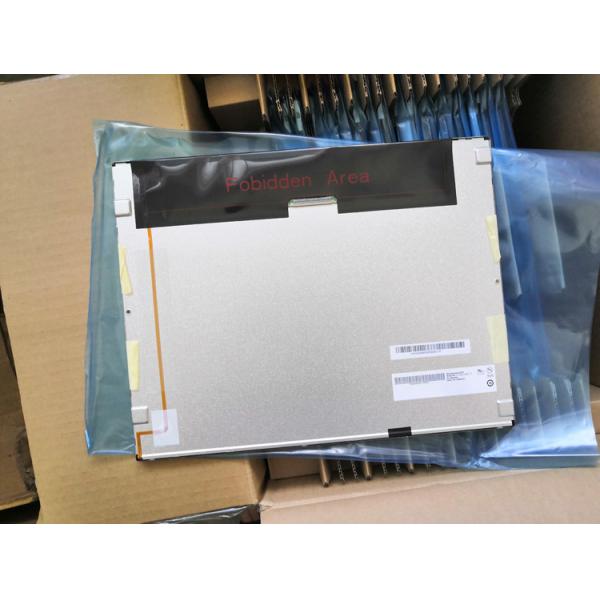

LVDS AUO 15.0" 85PPI Industrial LCD Screen 500cd/m2 G150XAN01.2

AUO 15.0INCH G150XAN01.2 1024(RGB)×768 (XGA) 85PPI Operating Temp.: -20 ~ 70 °C INDUSTRIAL PANEL

AUO G150XAN01.2 Mechanical Details

Pixel Features :	Pixel Format 1024(RGB)×768, XGA Dot Pitch 0.099×0.297 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :	Display Area 304.128×228.096 mm (H×V) Bezel Area 309.9×236.3 mm (H×V) Outline Dim. 326.5×253.5 mm (H×V) Outline Depth 6.8 (Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Side mounting holes (4-M2) on left, right bezel
Other Features :	Weight 660g (Max.) Surface Antiglare, Hard coating (3H)

AUO G150XAN01.2 Optical Details

Basic Information :	Brightness 500 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode AHVA, Normally Black, Transmissive Viewing Direction Symmetry Response Time 25 (Typ.)(Tr+Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.2M (6-bit + FRC) Color Temperature 6485K Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 60% sRGB 78% coverage Adobe RGB 62% coverage DCI-P3 62% coverage Rec.2020 45% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Basic Info :	Panel Brand Panel Model G150XAN01.2 Diagonal Size 15.0" Application Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability :	Operating Temp. -20 ~ 70 °C Storage Temp. -20 ~ 70 °C RoHS State Vibration Rating 1.5G (14.7 m/s²)
Specific Features :

Sapientia Display Co.,LIMITED is a professional leading company for LCD panels in China and Hong Kong China,established in year 2015, strong at collecting OEM excess stock from world famous big OEM factories, with experienced sourcing and sales and QC team, we can offer most competitive price with qualified panels.

Main products widely used for industrial facilities display, medical machine display, automotive display system, advertisement display and other portable display. We have our own warehouses which located in HK, SHENZHEN, HUIZHOU and HANGZHOU cities, with huge inventories of world famous brands LCD panels such as NEC, AUO, SHARP, LG, TIANMA, HITACHI, MITSUBISHI, TOSHIBA, SAMSUNG.

Panel size from 0.96 inch to 55inch, most panels packed in new original, factory box packing, panels been well kept in good status in our professional warehouses, engineering teams can support professional techique supports for lighting on panels, offering suitable cables/inverters/driving boards and other relative accessories.

Sapientia display will be your best choice for LCD panels, contact us for WIN-WIN business!
