260m 300m 350m 450m Diesel Crawler Mounted Drill Rig

260m 300m 350m 450m Diesel Crawler Mounted Drill Rig

260m 300m 350m 450m Diesel Crawler Mounted Drill Rig
260m 300m 350m 450m Diesel Crawler Mounted Drill Rig
Categories Water Well Drilling Rig
Brand Name: SHITAN
Model Number: ST260，ST300，ST400
Certification: ISO
Place of Origin: China
MOQ: 1 Set
Payment Terms: L/C, D/P, D/P, T/T, Western Union
Supply Ability: 1000/month
Delivery Time: 5-8days
Packaging Details: Wooden case (bare)
Drilling depth: /200m/300m/450m
Drilling diameter: 180-450m
After-sales service provided: Engineers available to service machinery overseas
Warranty: 1 Year
Power type: Diesel
Color: Yellow
Weight: 4.5T-12T
Rotary Head Storke: 3.4m-6.0m
Rated Power: 55-132KW
Contact Now
Company Info.
Jinzhou City Shitan Machinery Equipment CO. LTD.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

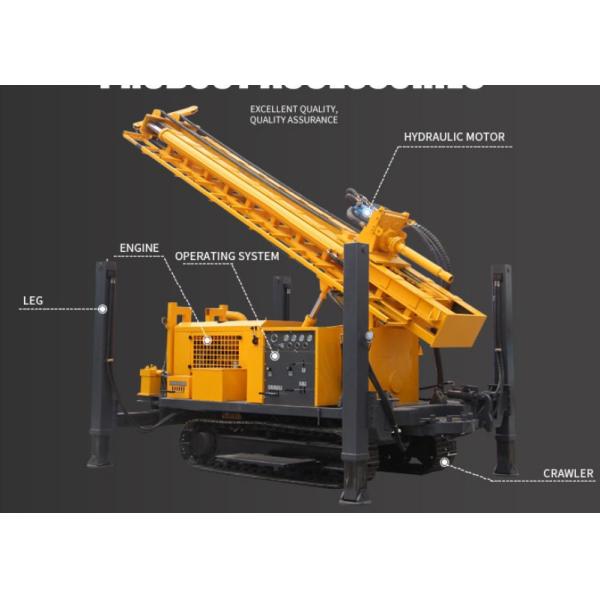

260m 300m 350m 450m Diesel Crawler Mounted Drill Rig

180m,260m, 300m, 350m, 450Meters Steel Crawler Mounted Rotary Portable Water Well Drilling Rig Machine


Brief introduction of drilling rig:


SHITAN series(180, 200, 300, 350, 400, 500, 600, 800 and other models of rotary full hydraulic controlled water well drilling rigs are multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method. The portable drilling rigs are not only designed for water, they can also be used in all conditions based on pore-forming purpose.

This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
Rig parameters
Model
150
180
260
300
400
500
Overall weight (T)
3.5
4.2
6.4
8
8.7
9.5
Dimension (mm )
3400*1500*2400
3800*1700*2350
4100*1900*2600
5500*1950*2780
5300*2050*2700
5350*2100*2700
Drilling diameter(mm )
130-219
130-294
140-300
140-325
130-400
140-400
Drilling depth(m)
150
180
260
300
400
500
One-time advance length of the drill(mm)
3000
3000
3000
3000/6000
3000/6000
3000/6000
Traveling speed(km/h )
2.5
2.5
2.5
2.5
6
6
Climbing ability(max )
25
30
30
30
25
25
Minimum Ground Clearance(mm)
250
250
250
230
300
350
Working Air Pressure(mpa )
1.45 - 2.5
1.7-2.5
1.7-3.0
1.7-3.3
1.7-3.5
1.7-3.5
Air consumption
15 - 27
15-27
17-35
23
17-35
17-35
Main machine power(kw)
42 /Yunnei
60/ Yunnei
85/Yuchai
92/Yuchai
100/6 cylinder
114/6 cylinder
Rotary Speed (rpm)
38 - 80
48 - 70
40-70
55-115
45-75
45 - 75
Rotary torque(Nm )
4000-5000
4200-5600
7000-9000
8500-10000
9000-10000
9500-10000
Features of drilling rig:
1: These water well drilling rig are small size, light weight, easy to install.
2: These water well drilling rig three major components, host, pump station, console.
3: In the original transport, prospecting roadway can be put into production, the overall structure of the mine play a protective role. These water well drilling rig can also be used for surface 0-90 degree drilling.200m pneumatic tractor mounted DTH water well drilling rig machine
4: rig layout flexible, mechanized twist drill pipe, reduce labor intensity, improve work efficiency.
5: the use of box-type to the rack, the holder to tighten, power head rotary drilling, cylinder pull drilling tools, Save the bulky rig.
6: with a linkage function, through the console centralized control, simple and safe, stepless speed.200m pneumatic tractor mounted DTH water well drilling rig machine
7: hollow shaft design, drill pipe length is not limited by drilling rig. Can be drilled at any angle of 360 °.200m pneumatic tractor mounted DTH water well drilling rig machine
8: disintegration is good, easy to move and transport. Φ33-Φ43 drill pipe can be used with the machine, the replacement only 15 minutes. .
Three Most Practical Water Finding Methods for Drilling Wells
First, according to the geographical location, it is well known that water flows to the place. As the saying goes, it is most beneficial to find water in the pinch land surrounded by mountains on three sides. Because of the low-lying terrain, the groundwater will flow to the pinch mouth. There is a high probability of drilling wells near the pinch mouth to get water. The two ditches intersect, and the spring water is choppy, that is, there may be water accumulation under the mountain mouth at the intersection of the two ditches. Second, check the vegetation nearby. You will find that where there is water, there will be plenty of trees and flowers. The more vigorous the crops are, the more mature the other crops planted at the same time. This area is still booming. Drilling wells in this place can basically hit the water vein. The ground freezing and thawing condition is seen under the three buildings, because the groundwater is four or five meters away from the ground, so the ice on the ground will be very thin in winter. In summer, due to the hot weather, there is a thin water layer or wet place in the morning and evening, which is also atomized by the underground and preheater. In such a place, the water can basically be flooded. Anyway. Water is a precious natural resource for human beings. If we sell underground rivers and dig wells, the direction of water vein will be .
