| Categories | Portable Water Well Drilling Rig |
|---|---|
| Brand Name: | JINZHOU SHITAN |
| Model Number: | ST-100 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 2000 sets per year |
| Delivery Time: | 7-10 days |
| Packaging Details: | Standard Export Package |
| Power Type: | Diesel |
| Voltage: | 220V/380V |
| Power(W): | 15KW |
| Weight: | 500kg |
| Type: | Rotary Drilling Rig,Core Drilling Rig |
| After-sales service provided: | Field maintenance and repair service |
| Product name: | Water Well Drilling Rig |
| Power(w): | 20HP |
| Drilling diameter: | 75-300mm |
| Company Info. |
| Jinzhou City Shitan Machinery Equipment CO. LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

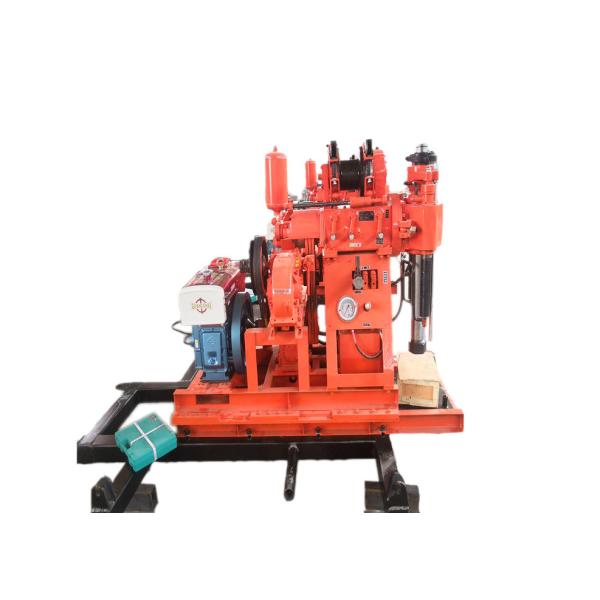

XY-1 Portable Water Well Drilling Rig Tech Parameter:
| Drill Information | Swivel Head | ||
Drilling depth | Max.100m | Spindle speed | 1010,790,470,295,140(r/min) |
Hole diameter | Max.100m | Spindle stroke | 450kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine | ZS1105 |
| Hoisting drum revolution | 121,76,36(r/min) | Rated power | 12.1KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm | ||
1. cleaning and maintenance:
The main parts for cleaning and maintenance of full hydraulic water well drilling rig in winter are the appearance of chassis and working device. Descaling and decontamination shall be carried out to keep the appearance of construction machinery clean and tidy. Meanwhile, attention shall be paid to whether the devices and components are damaged and whether the leakage parts are worn during the cleaning process, so as to make early preparations for the next maintenance.
2. replace gear oil and add lubricating grease:
The weather is dry in winter, especially the geological conditions of the construction site are complex, so it is more necessary to replace the gear oil of the full hydraulic water well drilling rig and add lubricant in time. While adding lubricant, check the wear condition, replace it in time, and clean the interior.
3. check the hydraulic system for leakage:
For most full hydraulic water well drilling rigs and anchor drilling rigs, the hydraulic system is used as the main component, and the role of the hydraulic system is extremely important. The temperature is particularly low in winter, and the seals of the hydraulic system of construction machinery will expand and contract, which is easy to cause leakage, and often has a certain impact on the normal operation of the hydraulic system. In order to avoid the leakage fault of the hydraulic system, the seals of the hydraulic system should be systematically inspected before entering the severe winter, and the seals at the leakage parts should be replaced in time.
|
