| Categories | CNC Plasma Cutting Machine |
|---|---|
| name: | 220V Plasma Cnc Machine |
| model: | PCNC-1530 |
| speed: | 6000 Mm/Min |
| brand: | Hyzont |
| Brand Name: | Hyzont |
| Model Number: | PCNC-1530 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 sets |
| Price: | USD 500- USD 2000 |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000Sets /month |
| Delivery Time: | 5-8Days |
| Packaging Details: | Wooden case |
| Company Info. |
| Hyzont(Shanghai) Industrial Technologies Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

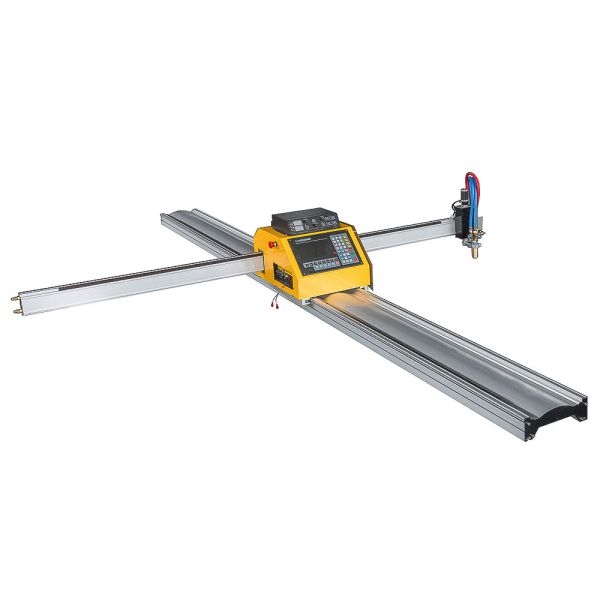

Our cutting machine is a high-end numerical control plasma and flame cutting machine. Its overall structure adopts imported high-rigidity aluminum alloy materials. Compared with general portable cutting machines, it offers better handling and stability, a larger transverse cutting area, and butt-jointable longitudinal guide rails for extension.
1) Programmable cutting of workpieces with arbitrary line and arc
shapes.
2) Dynamic and static graphic display, easy to learn. CAD files can
be transferred from a computer to the machine via USB flash drive
to cut all kinds of graphs; it can also be programmed and operated
directly on the machine
3) The track and movement system adopts a unique design, ensuring
working precision.
4) Supports both flame cutting (gas cutting) and plasma cutting.
5) The interface can be switched freely between English and
Chinese.
6) Economical, portable and easy to operate.
7) Great working stability, Effective shield plasma high frequency
interference
| Technical Specification | |
| Model | PCNC-1530 |
| Effective cutting range(mm) | 1500 x 3000 |
| Cutting speed (mm/min) | 50-6000 (plasma cutting max.6000) |
| Input power source of Machine body | 220 V AC, 50/60 Hz, 160 W Single phase |
| Flame cutting specification (for Oxy-fuel Cutting) | |
| Flame Cutting thickness (mm) | 3-200 (Oxygen with acetylene or propane) |
| Torch height controller | Flame, electric height adjustment(60 mm) |
| Flame cutting gas | Oxygen with propane or acetylene |
| Plasma torch gas | Compressed air/N2/O2 |
| Cutting torch | One piece flame cutting torch, one plasma torch together with the plasma power source |
| CNC controller system | CNC controller system |
| Motor | Leadshine Stepper motor and drive |
| Plasma Cutting thickness | 0.5-40 mm |
| Torch height controller | F1620 |
| Operation precision | 0.2 mm/m |
| Guide length *guide width *guide thickness (mm) | 3500 x 273 x 60 |
| Nesting software | StarCam |
| Gas pressure (MPa) | 0.5 |
| Cutting tool Conversion Kit | Oxygen(flame) and plasma spare parts can change easily. |
| Host Packaging | |
| Size | 550 (L) * 550 (W) * 500 (D)mm |
| Weight | 50 kg |
| Packaging Details | CNC portable plasma cutter machine body package The normal package is wooden box (Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request. |
| Track rail packaging | |
| Size | 3600 (L) * 300 (W) * 250 (D) |
| Weight | 70 kg |
| Packaging Details | track rail package The normal package is wooden box (Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request. |
HYZONT (SHANGHAI) INDUSTRIAL TECHNOLOGIES CO., LTD.
Add: Building 1, Lane 99 Shenmei Road, Pudong District, Shanghai, China
Sales Manager: Mr. Ricky
Mob: +86 131 20953 010 WhatsApp: +86 131 20953 010 WeChat: zgyricky
Email: plasmacut@aliyun.com ricky@hyzontweldcut.com ricky@hyzont.com
|
