Stranded Class 2 PVC Sheath 0.6KV Armoured Power Cable

Categories Armoured Electrical Cable
Model Number: YJLV22 0.6-1V 4 core
Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
MOQ: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Conductor: stranded copper conductor class2
Insulation: XLPE
Inner sheath: PVC
Armor Type: Double Steel tape amour
Sheath: PVC or Flame-retardant PVC
Insulation Color: Brown,Black,Red,Green
Corporation: shenghua group
Brand: Sh Cable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

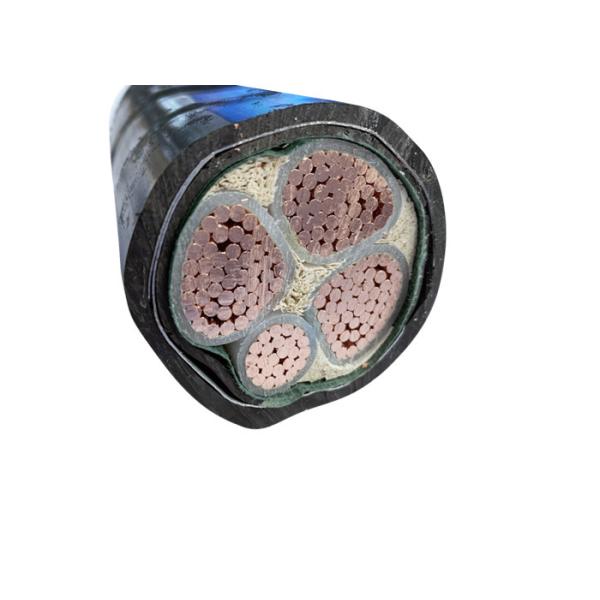

Stranded Class 2 PVC Sheath 0.6KV Armoured Power Cable

Best Supplier CU/XLPE/PVC/STA/PVC -0.6/1KV 4Cx120 SQMM Power Cable.


Constructions

Conductor : stranded copper conductor class2

Insulation : XLPE

Inner sheath : PVC

Armor Type : Double Steel tape amour

Sheath : PVC or Flame-retardant PVC

Insulation Color :Brown,Black,Red,Green.

Jacket Color :Black.


Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.


Standards

International: IEC 60502-1,ASTM,VDE,BS,JS,AS

Cable Type:YJV22-0.6/1KV 4Cx120 SQMM

Other standards such as BS,DIN and ICEA upon request


Technical data

Rated voltage:0.6/1kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core


Certificates

CE, RoHS, KEMA and more others at request


Commercial Items: MOQ: 500m

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Wooden Iron drum, whole steel drum( with extra cost to meet the client special request).


Specifications

Nom. Cross-section of conductorStrands No./Dia. Of ConductorInsulation ThicknessSteel tape thicknessSheath ThicknessApprox. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃)Testing Voltage A.CCurrent Rating
mm2pc/mmmm

mm

mm(mm)kg/kmΩ /kmkV/5minIn air (A)In soil(A)
4 × 41/2.250.72x0.21.5164544.613.53445
4 × 61/2.760.72x0.21.5175573.083.54357
4 × 107/1.380.72x0.21.5207911.833.56077
4 × 167/1.780.72x0.22.02312101.153.583105
4 × 257/2.140.92x0.22.027.016720.7273.5105125
4 × 357/2.520.92x0.22.029.021270.5243.5125155
4 × 5010/2.521.02x0.22.033.028020.3873.5160185
4 × 7014/2.521.12x0.22.538.037850.2683.5200225
4 × 9519/2.521.12x0.52.542.048290.1933.5245270
4 × 12024/2.521.22x0.52.547.060330.1533.5285310
4 × 15030/2.521.42x0.53.052.073560.1243.5325345
4 × 18537/2.521.62x0.53.056.088080.09913.5375390
4 × 24048/2.521.72x0.53.062.0111820.07543.5440450
4 × 30061/2.521.82x0.53.164.0141760.06013.5505515
